GMT-Master II · Jubilee · VSF claim

VSF Pepsi · 6X08B773

HOLD · clarify the findings

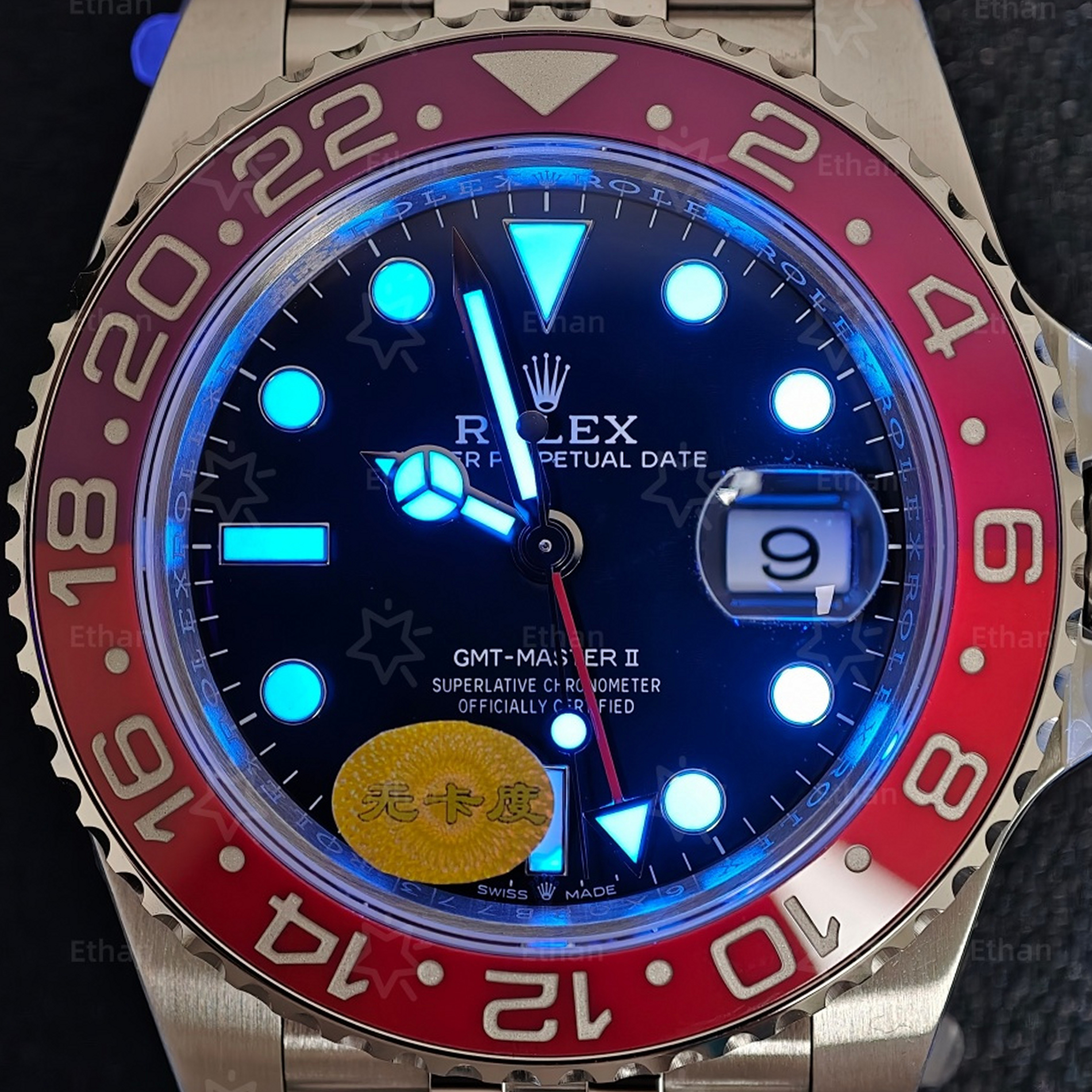

S011 · Camera geometry corrected. Image rotated approximately 0.1° clockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using isolated printed minute strokes. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.

RECOMMENDATION

Visible dial alignment, hands and the displayed date look broadly acceptable; no compelling major defect is established. Case and clasp finish: Clean and remove protective film from these areas, then obtain sharp diffuse-light photographs before approval.

Dial placement and marker straightness

Visible markers appear broadly coherent with the minute track. The 9 o'clock frame shows no conspicuous mounting skew. S011's diagnostic review withholds its luminous-component axis because segmentation is incomplete; no non-null bar-axis measurements remain. Visible alignment is acceptable, but metal-frame appearance does not validate luminous-insert axes.

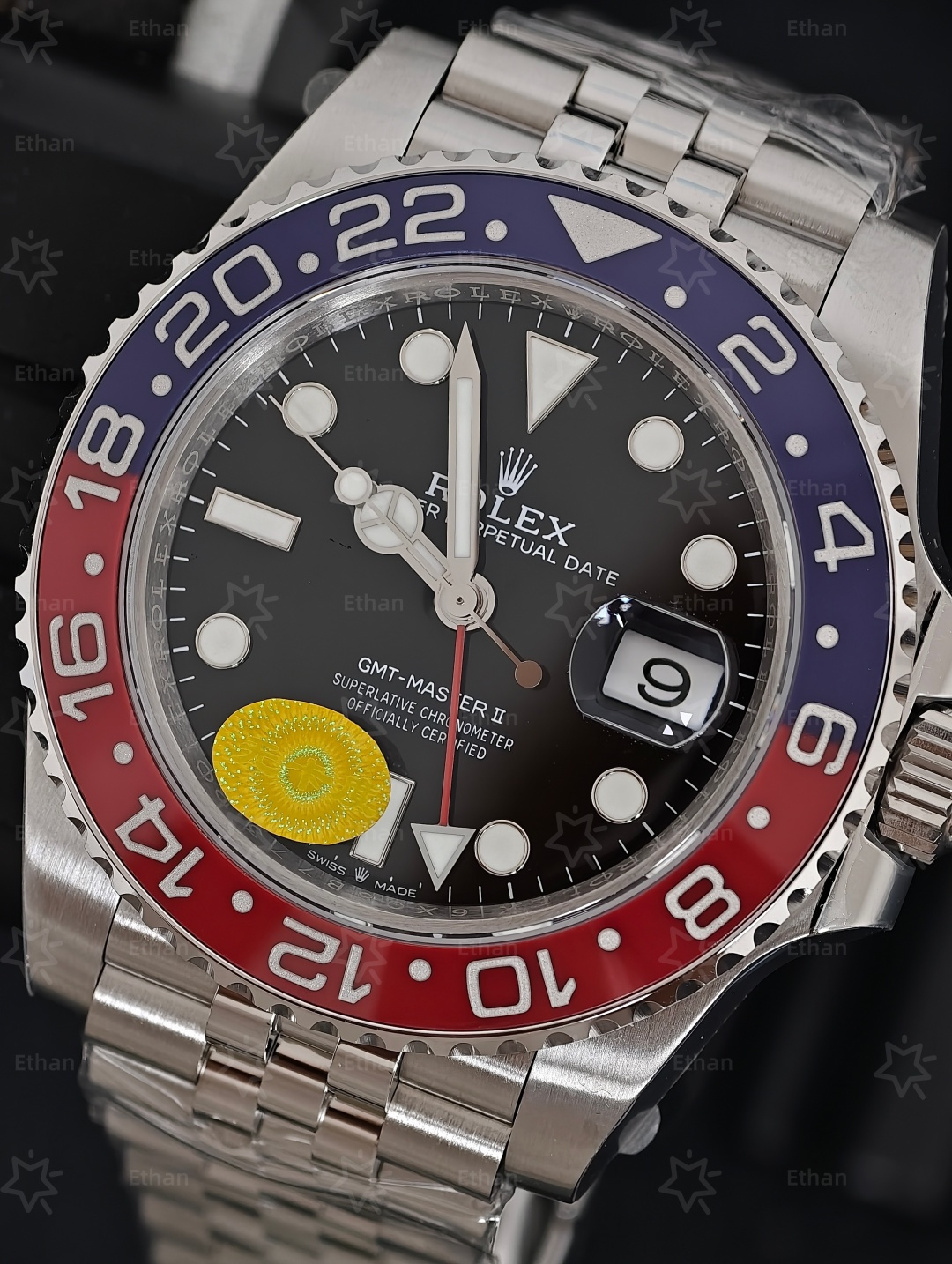

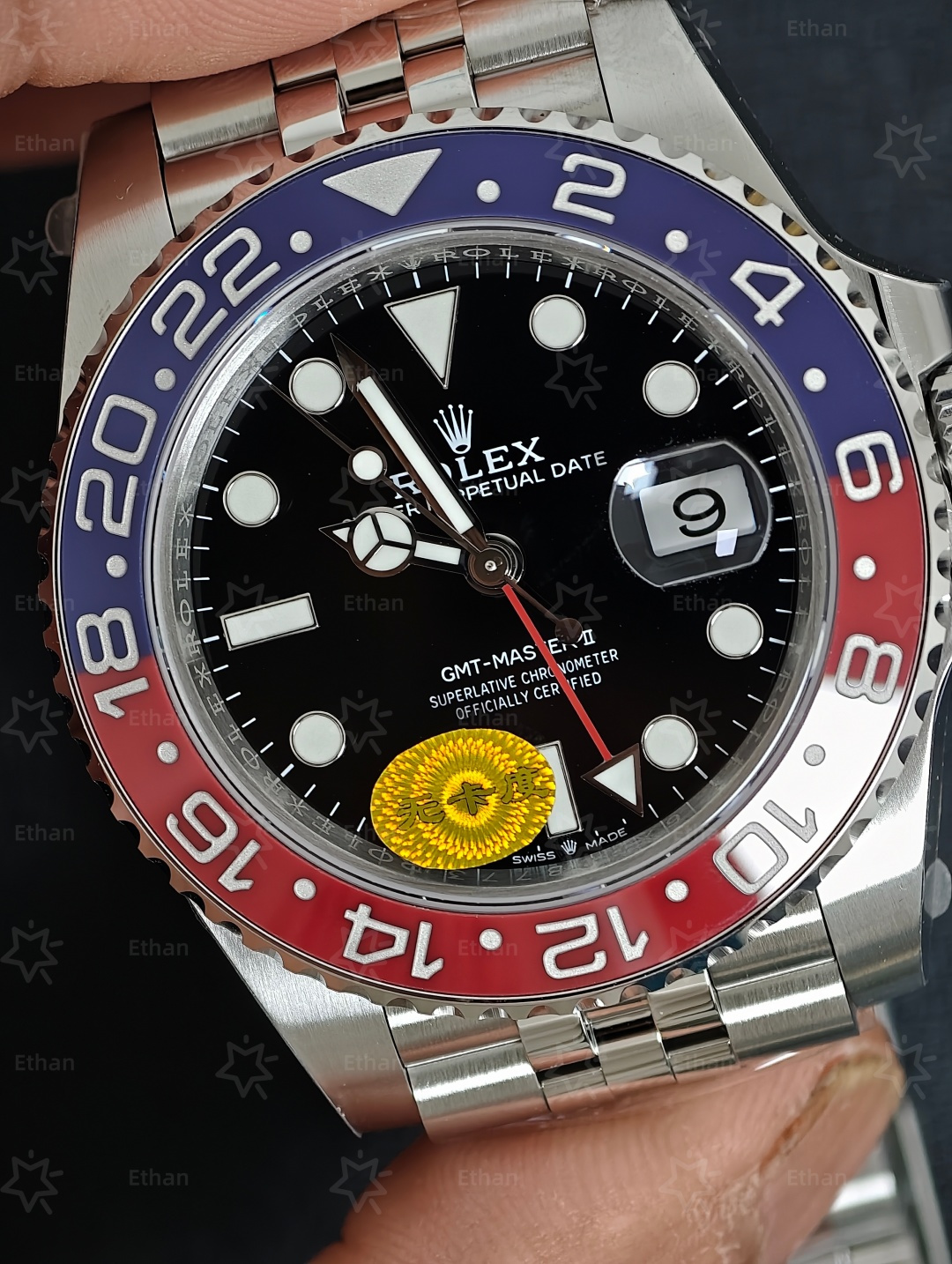

S002 S004 S005 S011

Covered lower dial

The yellow sticker partially covers the 6 o'clock bar and obscures the 7 o'clock region. The 8 o'clock marker is visible in the clearer close views. Covered components and printing are unverified, not missing or malformed.

S002 S005 S011 S012

Hands, printing and date

Visible hands show no obvious damage, and date 9 is legible without conspicuous clipping. Hands and their shadows cross several printed characters; cyclops reflections obscure small areas. No supported malformed-text or date-display defect is evident.

S002 S004 S005 S011

Raised bezel

Native views show the bezel triangle, numerals and adjacent dots without a conspicuous repeated local-spacing issue. Oblique views and strong illumination alter its apparent geometry and colour. No consequential bezel alignment defect is established.

S002 S004 S005 S011 S012

Case and clasp finish

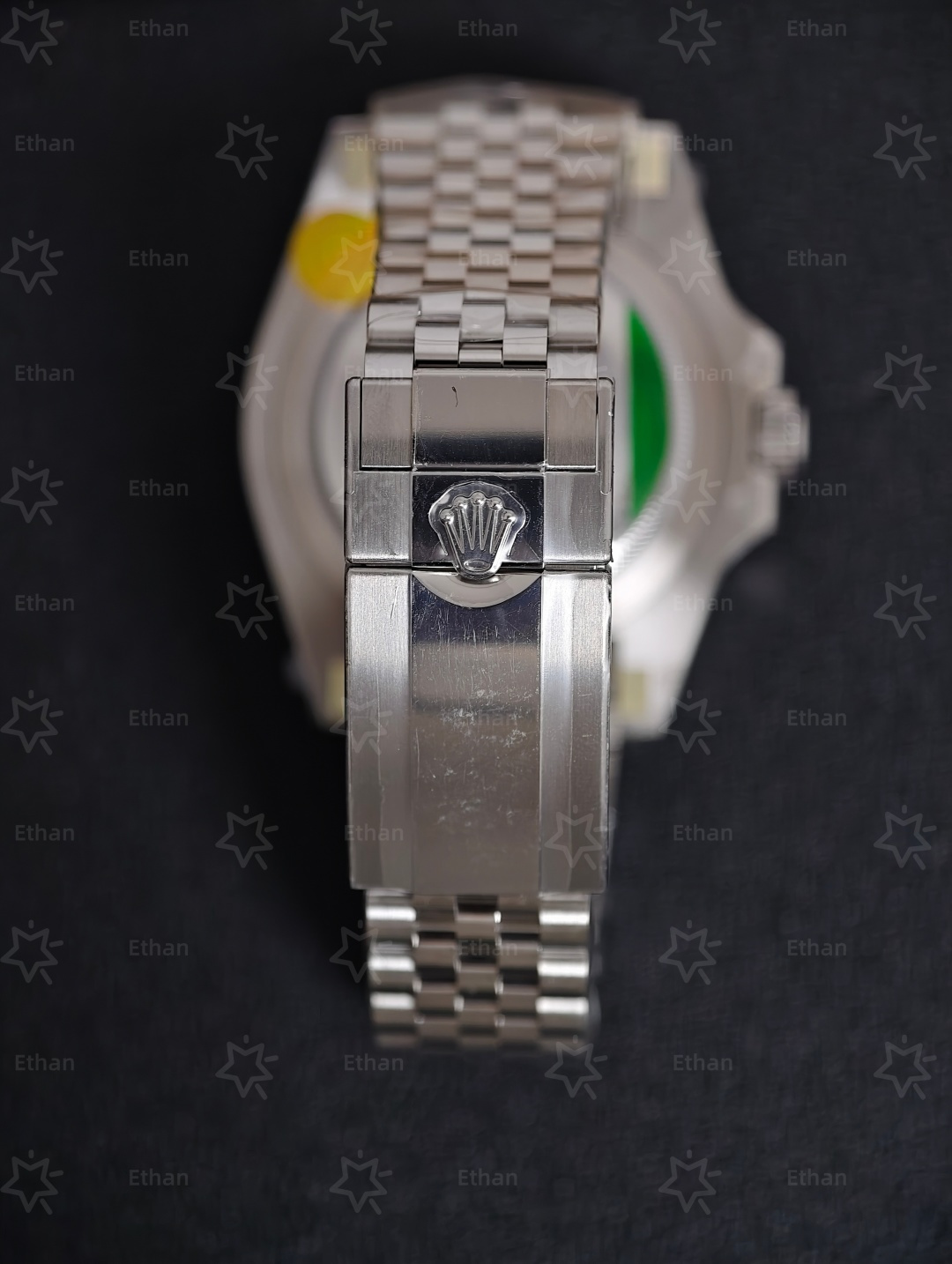

S007 shows numerous fine marks across the polished case side. S008 shows conspicuous scratch-like lines and cloudy scuffing below the clasp emblem, plus a short dark mark above it. Protective material is also visible. These are supported visible surface concerns on separate exterior areas, not merely one speculative reflection. Clean and remove protective film from these areas, then obtain sharp diffuse-light photographs before approval.

S007 S008

Timegrapher snapshot

Rate +4 s/day; Amplitude 273 °; Beat error 0 ms; Lift angle 52 ° Displayed amplitude depends on the selected lift angle; the correct setting for the installed movement is not verified. Winding, stabilization, position and recording duration are unknown. Two transcriptions of one source are not independent timing measurements.

S014

Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.

Detail checks

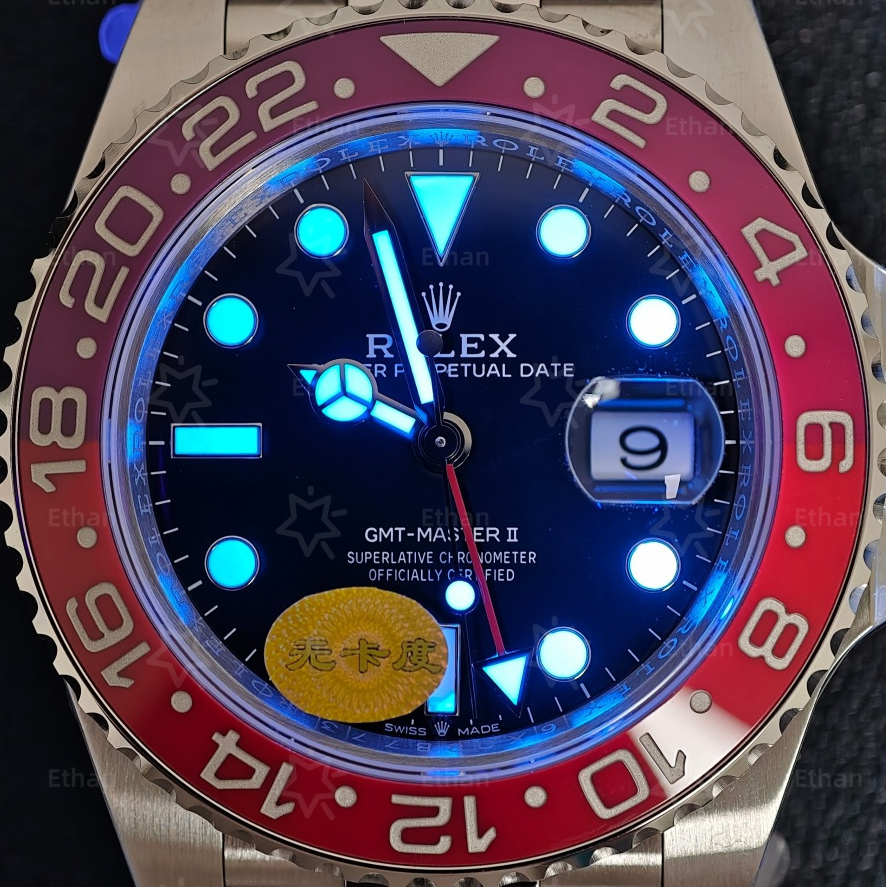

S011 · Native full-bezel context. Raised bezel features assessed visually in this original camera view

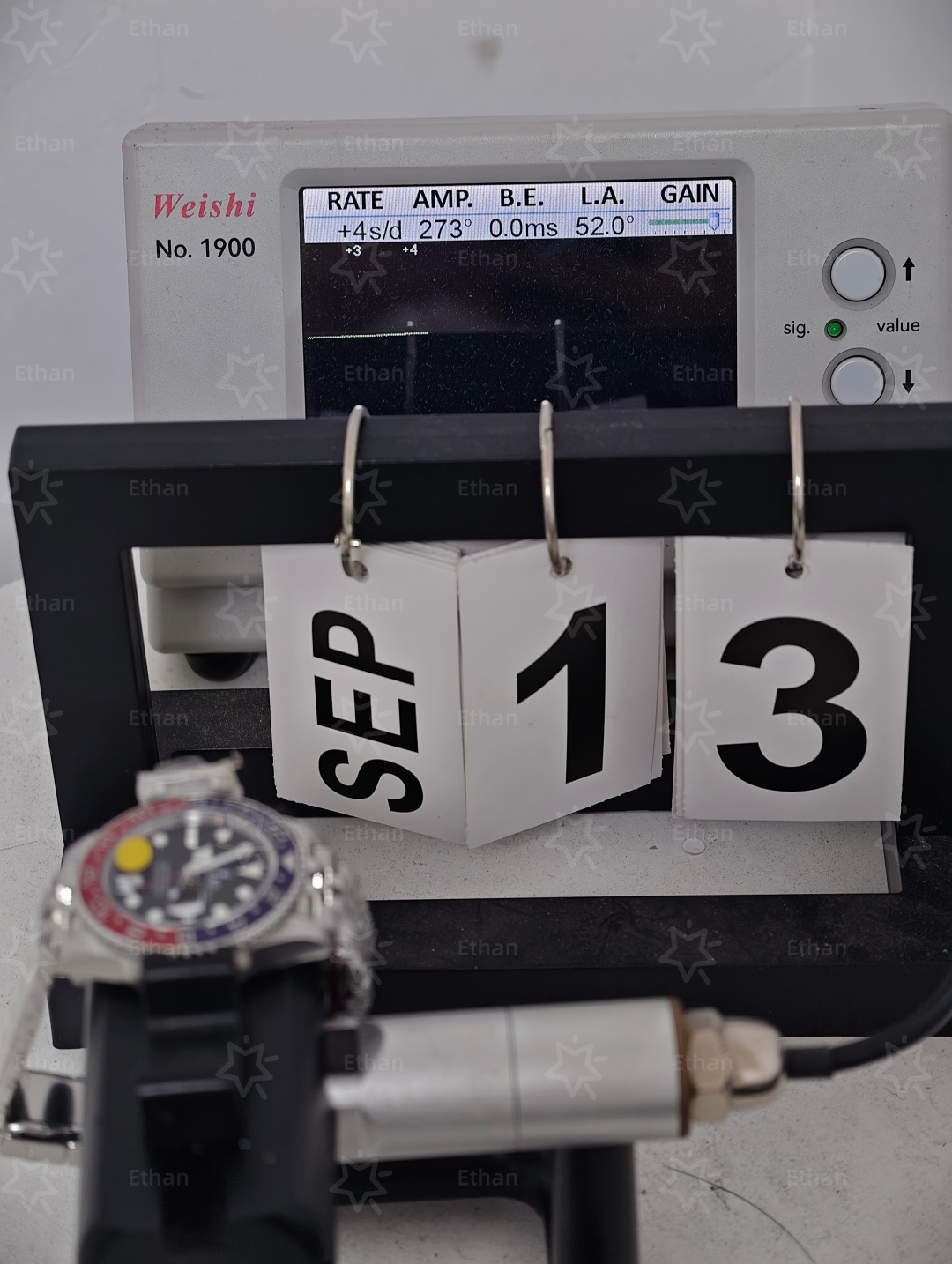

S014 · Full timegrapher source frame; screen-crop coverage is unverified. Readings describe this snapshot only.

Position and angle checks

1 dial views · 12 checks

S011 · 1 o’clock

Round feature · position check; no unique axis · centre offset +0.4° from clock ray (geometry + segmentation +0.4° to +0.5°) · image-plane only · Round luminous marker fully isolated without occlusion.

S011 · 2 o’clock

Round feature · position check; no unique axis · centre offset +0.6° from clock ray (geometry + segmentation +0.5° to +0.7°) · image-plane only · Round luminous marker cleanly segmented without occlusion.

S011 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date aperture with cyclops lens present instead of luminous marker.

S011 · 4 o’clock

Angle unverified · feature edges uncertain · Round luminous marker present but mask fails to isolate the luminous region.

S011 · 5 o’clock

Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.2° to -0.1°) · image-plane only · Round luminous marker fully segmented adjacent to the GMT hand tip.

S011 · 6 o’clock

Angle unverified · feature edges uncertain · Baton marker partially covered by an applied yellow sticker.

S011 · 7 o’clock

Angle unverified · feature edges uncertain · Marker completely obscured by the applied yellow sticker.

S011 · 8 o’clock

Round feature · position check; no unique axis · Round luminous marker visible but right mask is empty or failed to segment.

S011 · 9 o’clock

Angle unverified · feature edges uncertain · Baton luminous insert visible but the segmentation mask is incomplete.

S011 · 10 o’clock

Angle unverified · feature edges uncertain · Round luminous marker visible but the right segmentation mask is unselected.

S011 · 11 o’clock

Angle unverified · local axis not confirmed · Round luminous marker visible next to the minute hand but mask is unselected.

S011 · 12 o’clock

Angle unverified · local axis not confirmed · Triangular luminous marker present but right mask is unselected.

Source gallery

14 photos · 0 videos

14 photos · 0 videos in the saved gallery. Repeated views are not independent confirmation.
