S003 · Camera geometry corrected. Image rotated approximately 0.1° clockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using isolated printed minute strokes. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.

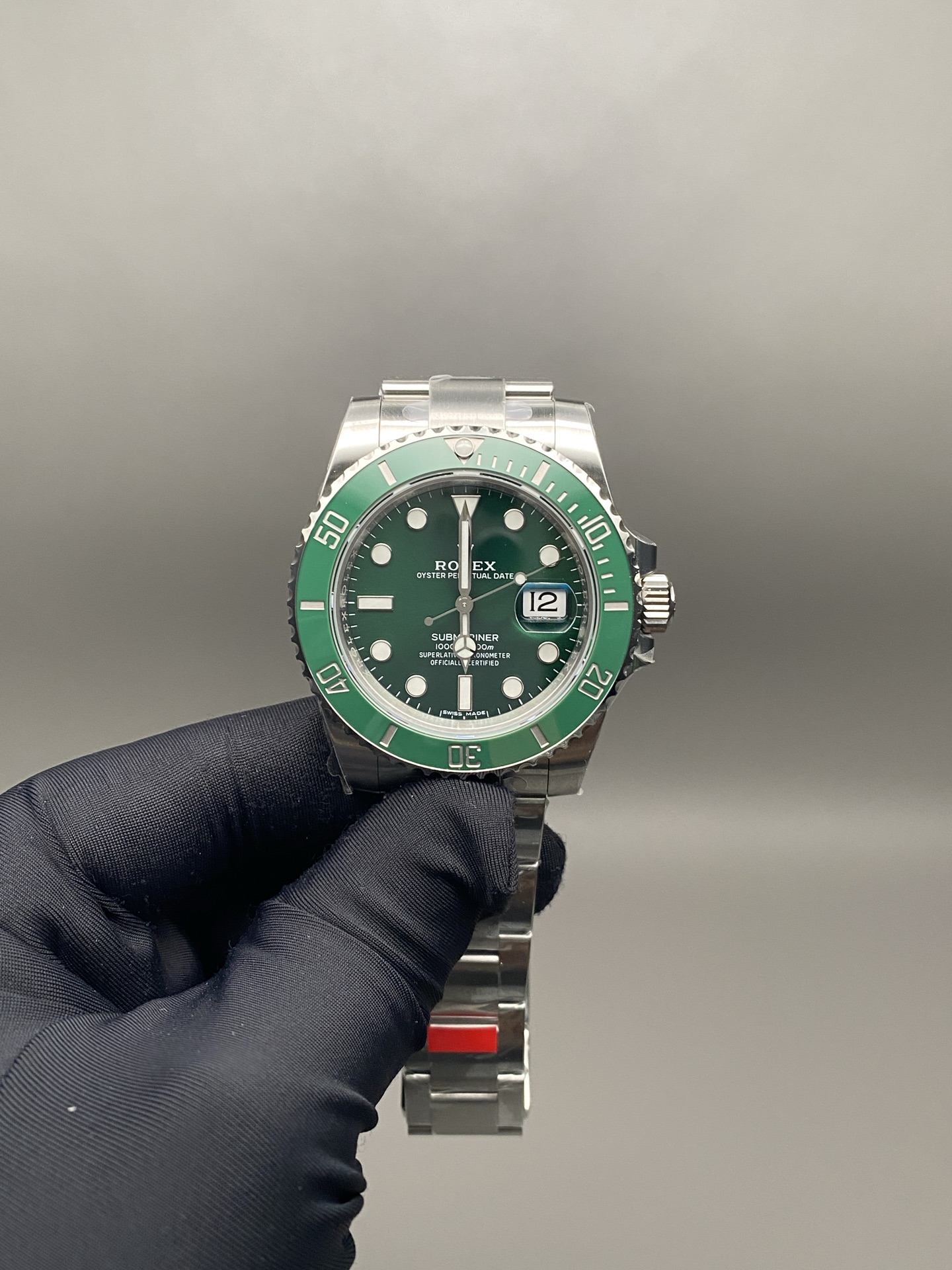

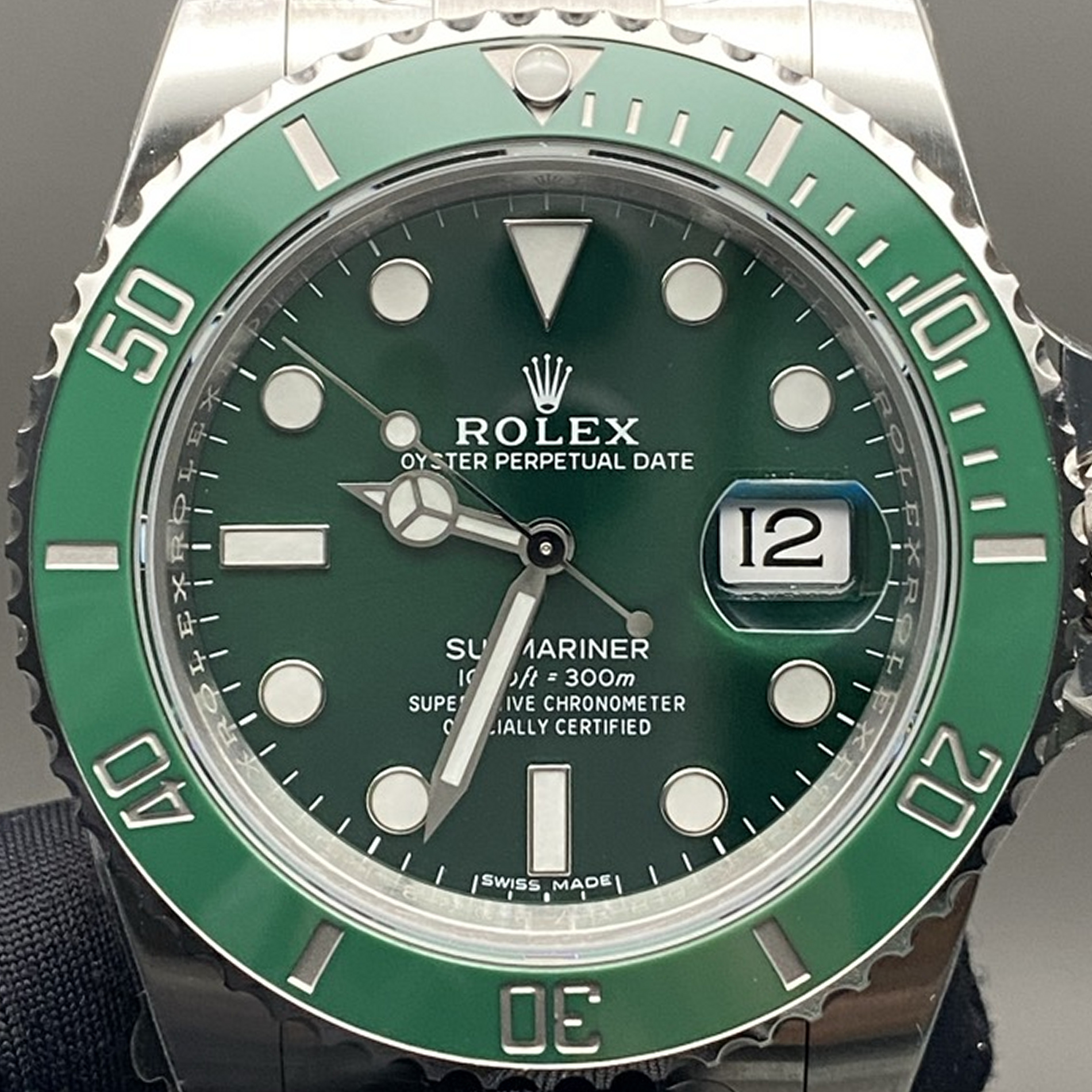

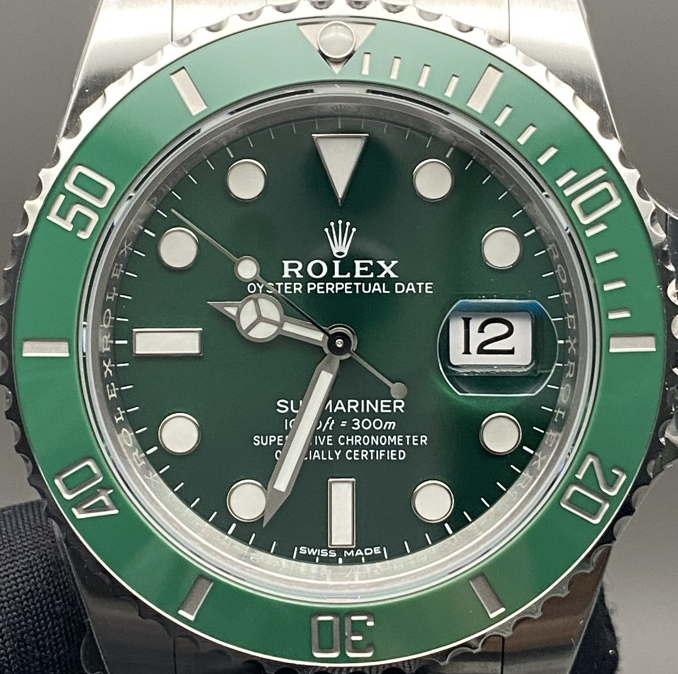

S003 · Original camera geometry · dial and bezel context
RECOMMENDATION
Visible QC is acceptable in these photos. Dial placement is generally coherent; the 9 o’clock luminous bar has a small repeated image-axis offset, not a demonstrated metal-frame mounting defect.
Dial placement and bar axes
S003 and S005 show generally coherent marker placement. The 9 o’clock luminous axis is -0.5° (sensitivity -0.9° to 0.0°) in S003 and -0.4° (-0.6° to -0.4°) in S005. Its separate placement offset is -0.3° in both sources, with ranges -0.4° to -0.2° and -0.5° to -0.3°, respectively. S005’s 6 o’clock luminous axis is 0.1° (-0.1° to 0.3°); placement is -0.3° (-0.7° to -0.2°). The small repeated 9 o’clock offset is image-only, not perfect straightness or proof of metal-frame mis-mounting.

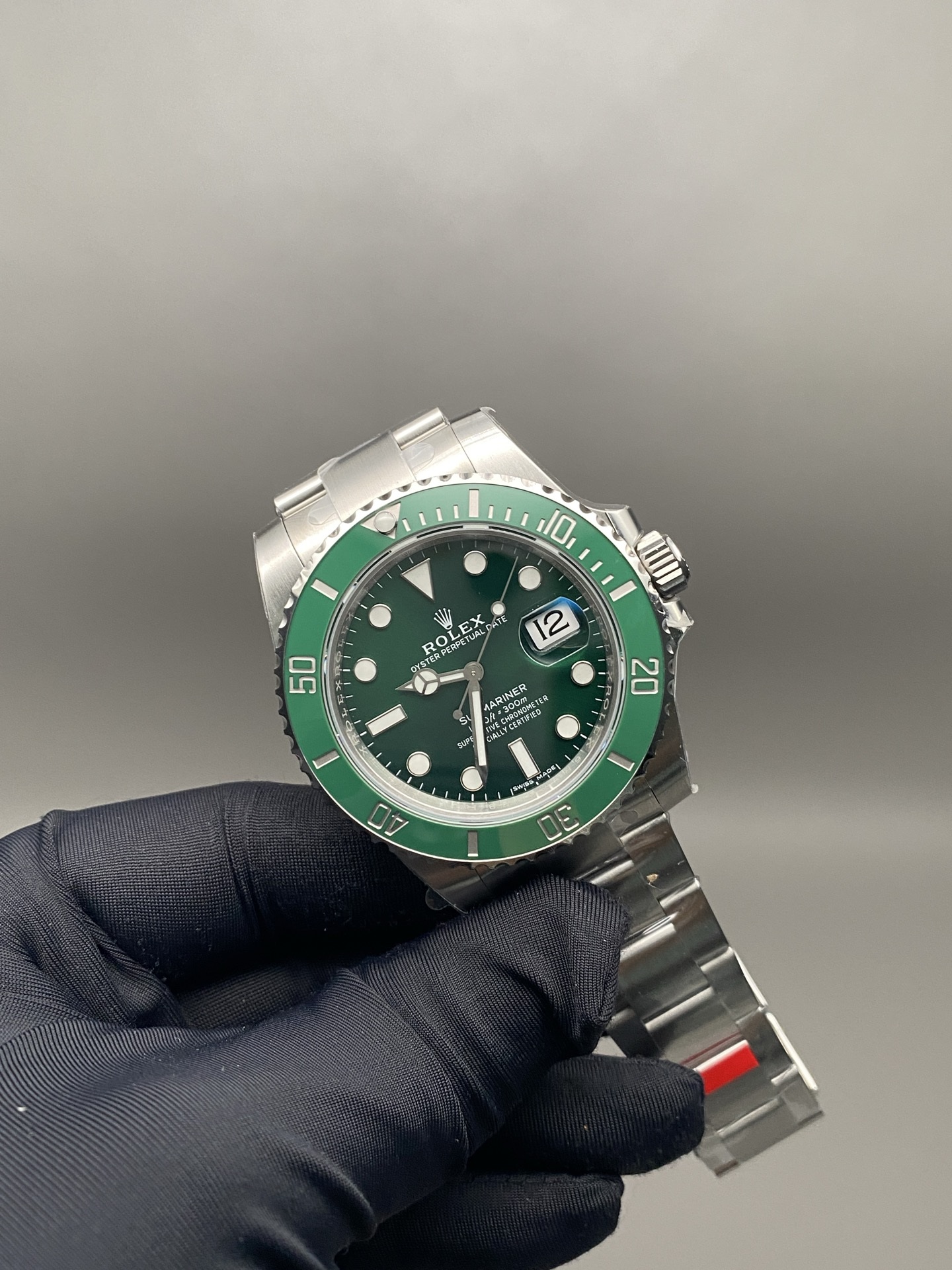

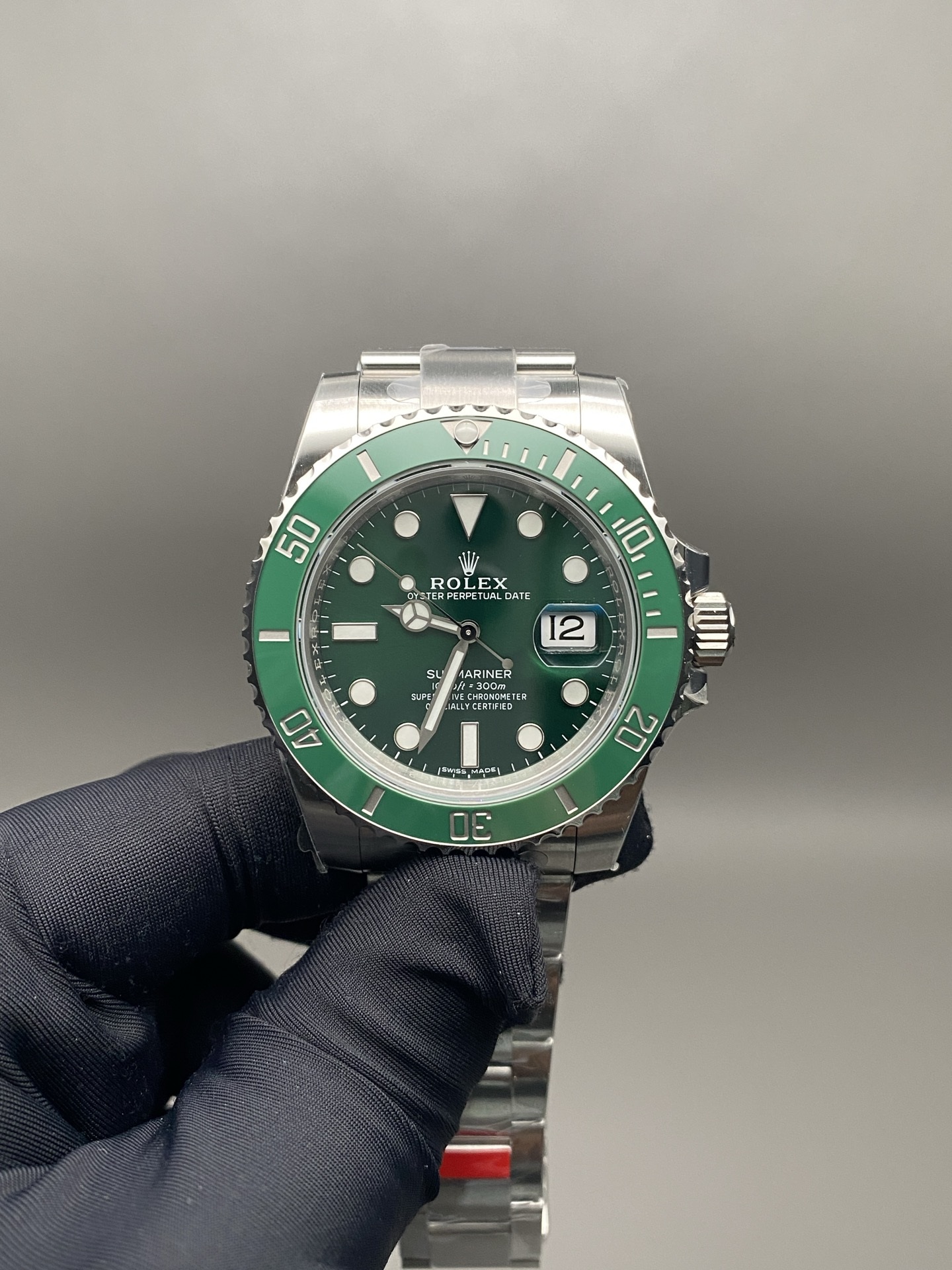

S003 S005
12 o’clock triangle orientation
S003’s native and corrected edges show a near-level luminous base and an apex beneath its midpoint; no quantitative triangle direction is released. In S005, the amber contour follows the luminous interior rather than the bright metal rim. Native and corrected base/apex evidence does not show convincing lean. Neither source supports a consequential triangle tilt.
S003 S005
Hands, printing and date

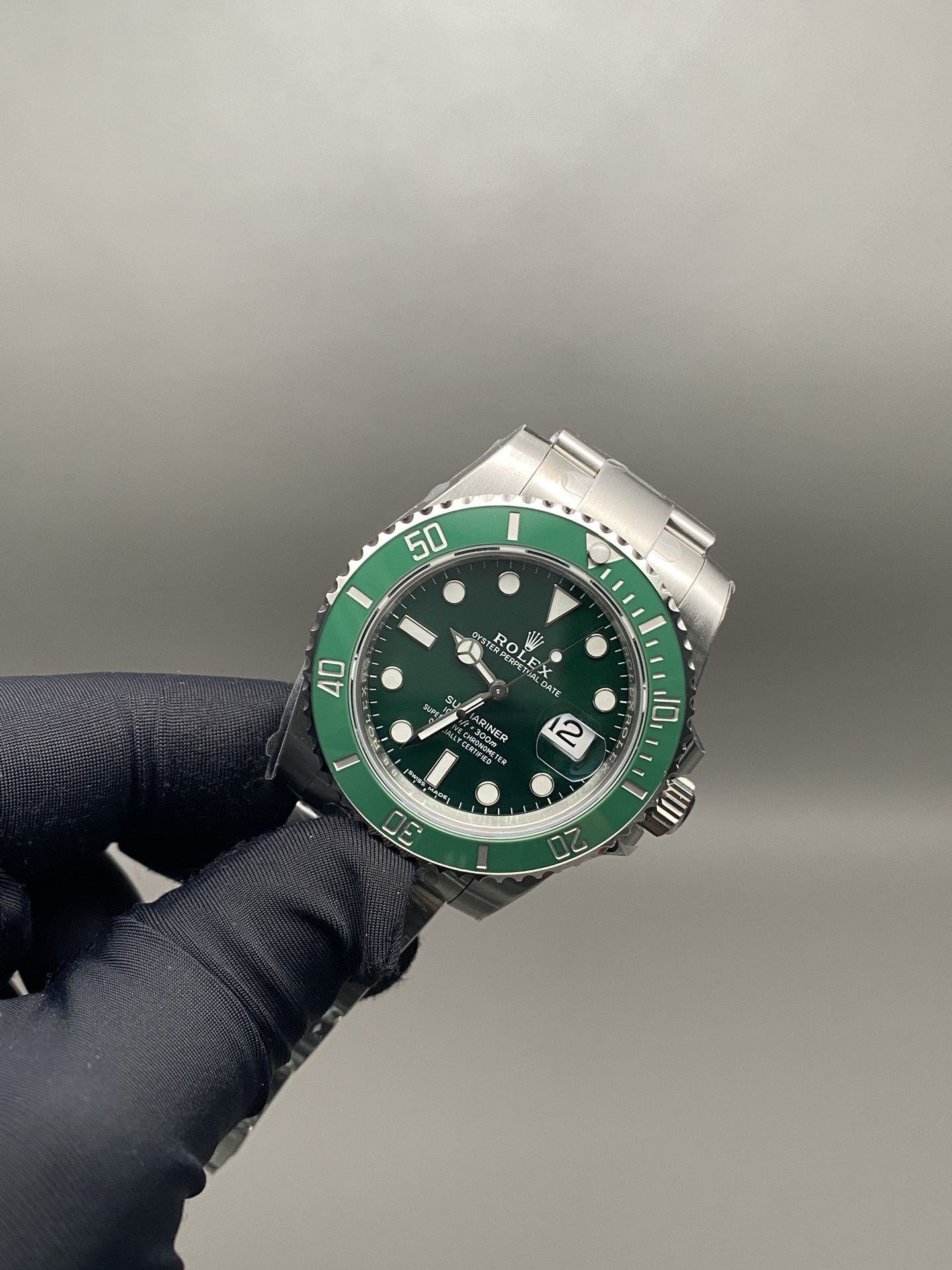

Hands appear intact and the displayed date 12 is legible without obvious clipping in S003, S004 and S005. Hands cover portions of the lower dial lettering and the 7 o’clock marker. No supported malformed text or hand defect is visible.
S003 S004 S005
Raised bezel
The native S003 bezel view and angled S004/S005 views show the markings and top insert without a convincing repeated local-spacing or seating defect. Bezel assessment is separate from dial geometry.
S003 S004 S005
Exterior finish

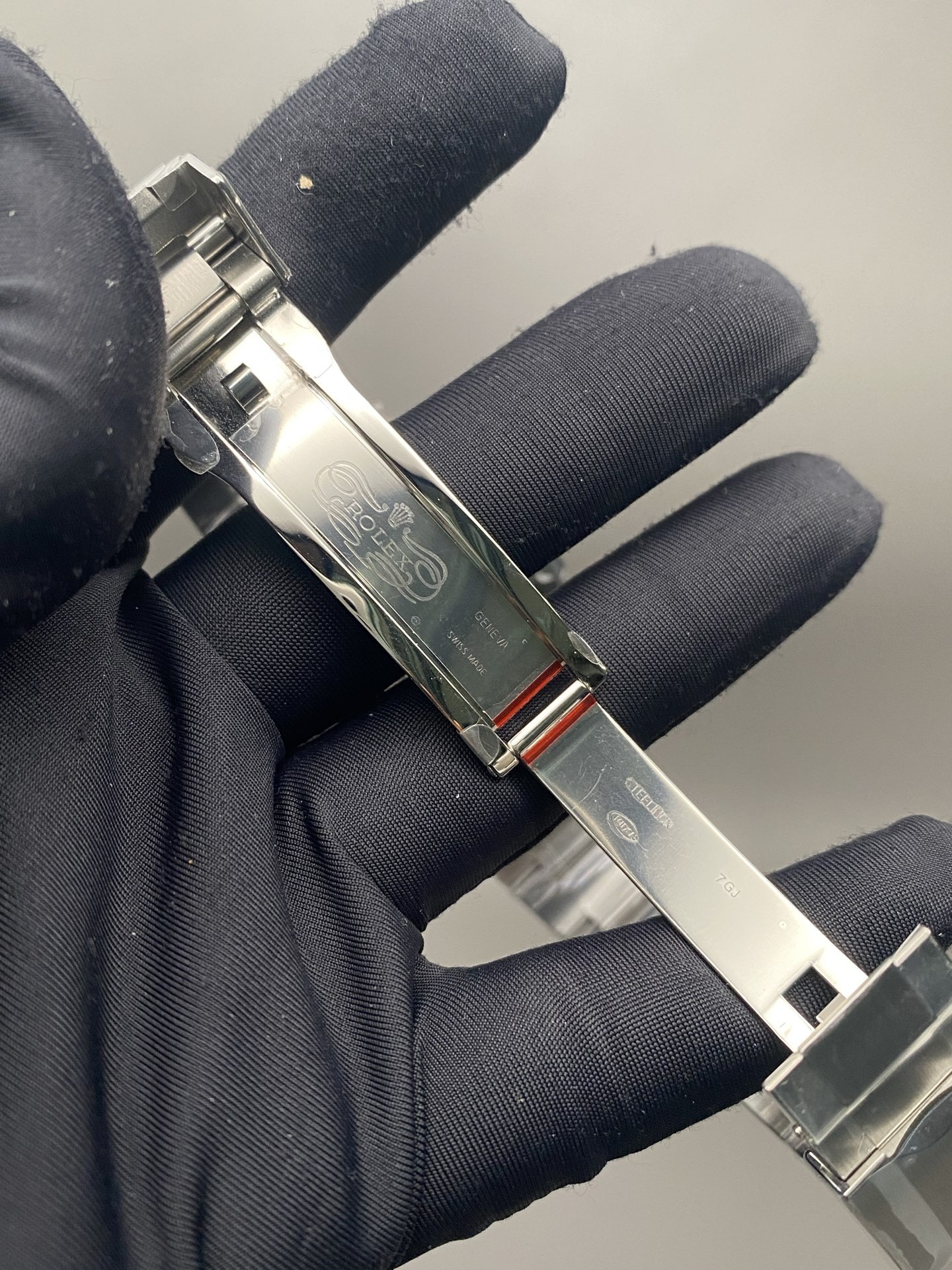

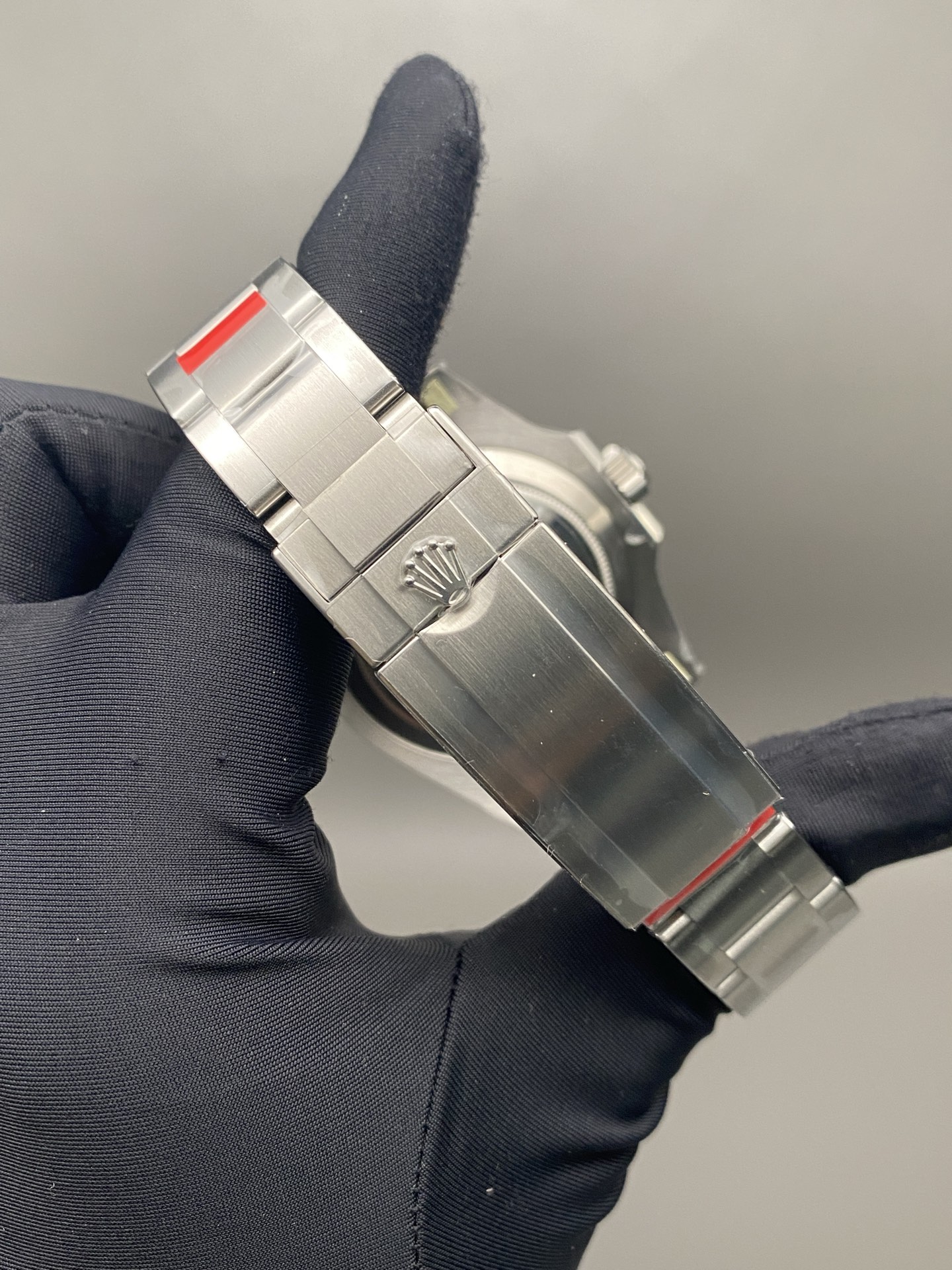

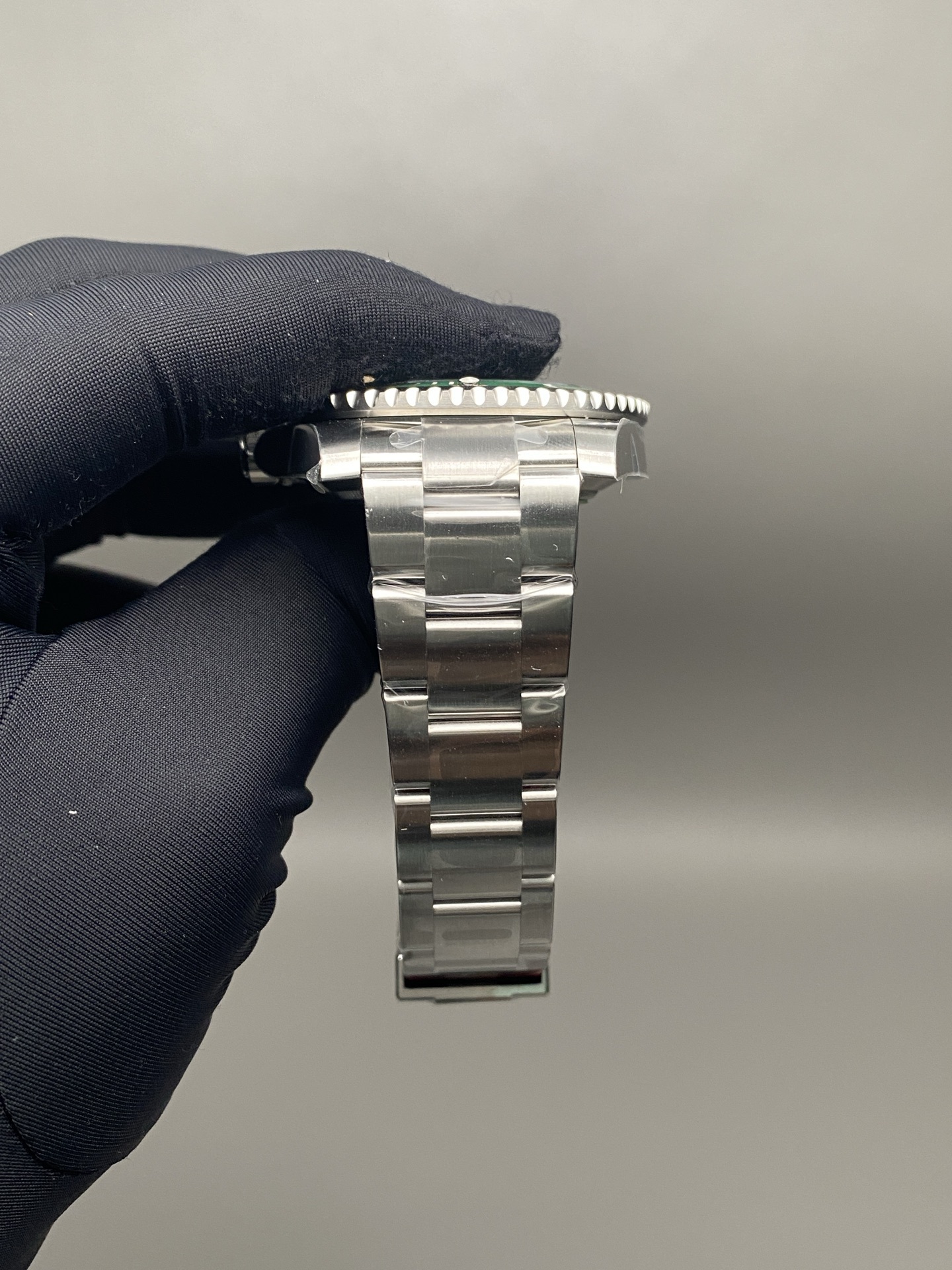

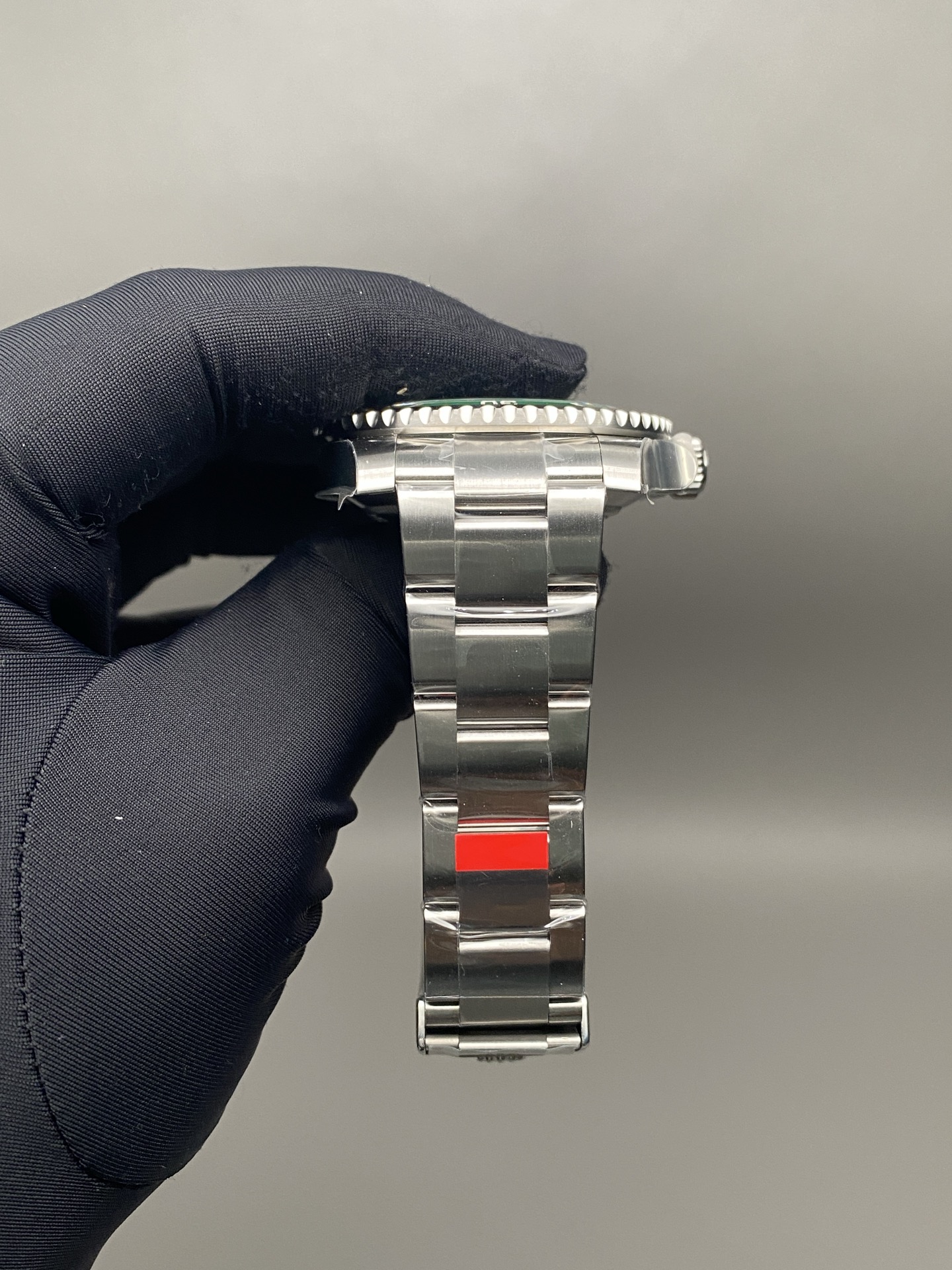

S009 shows protective material and a red sticker over a bracelet center link. Other exterior reviews describe film and reflective surfaces. The covered finish is unverified.
S009 S010 S011 S012 S013
Timegrapher snapshot
Rate +8 s/day; Amplitude 281 °; Beat error 0.2 ms; Lift angle 52 °; Beat rate 28800 bph; Interval 12 s Displayed amplitude depends on the selected lift angle; the correct setting for the installed movement is not verified. Winding, stabilization, position and recording duration are unknown. Two transcriptions of one source are not independent timing measurements.
S015
Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.
Detail checks

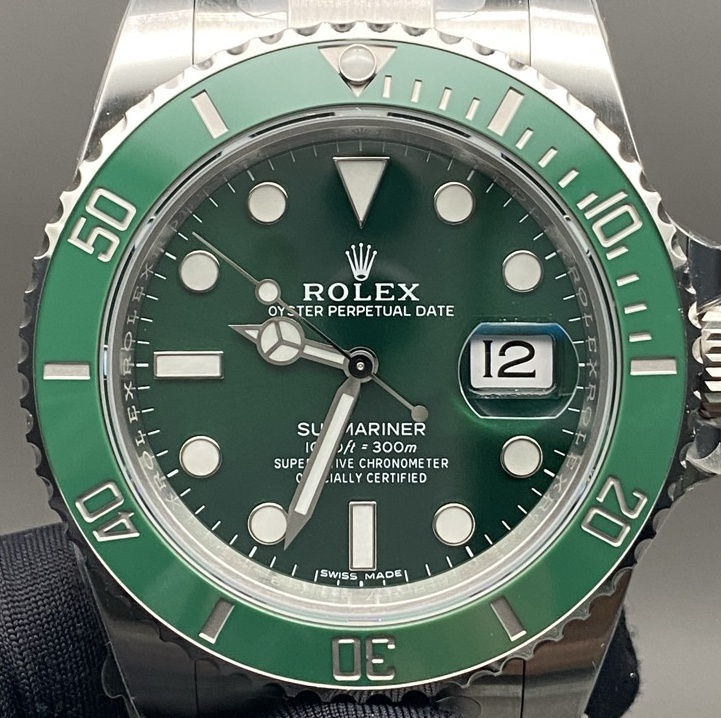

S003 · Native full-bezel context. Raised bezel features assessed visually in this original camera view

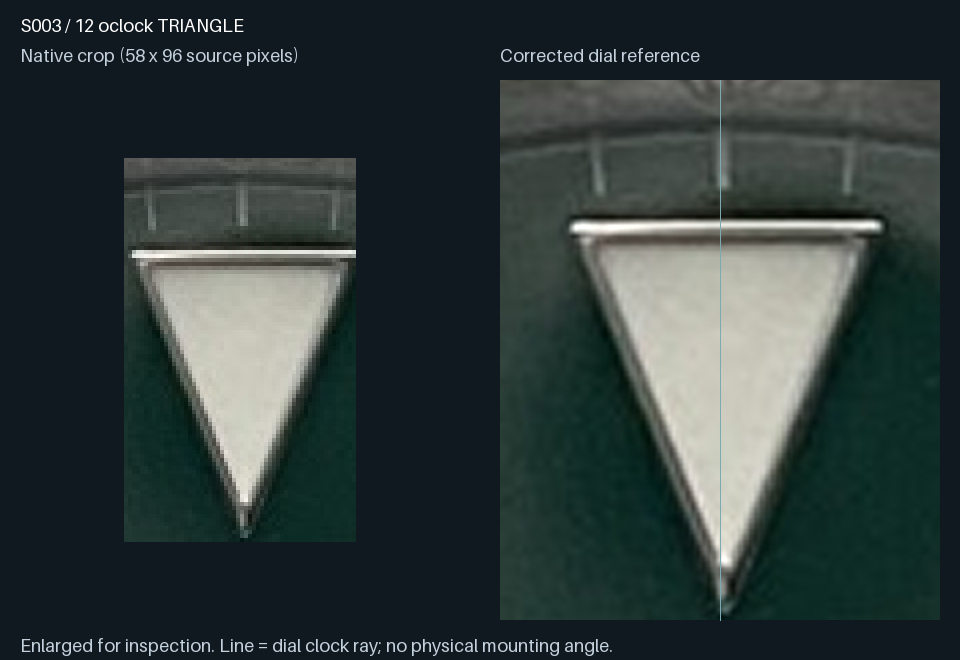

S003 · 12 o’clock triangular insert: native crop and corrected dial reference. Amber outline, when present, is a candidate luminous silhouette

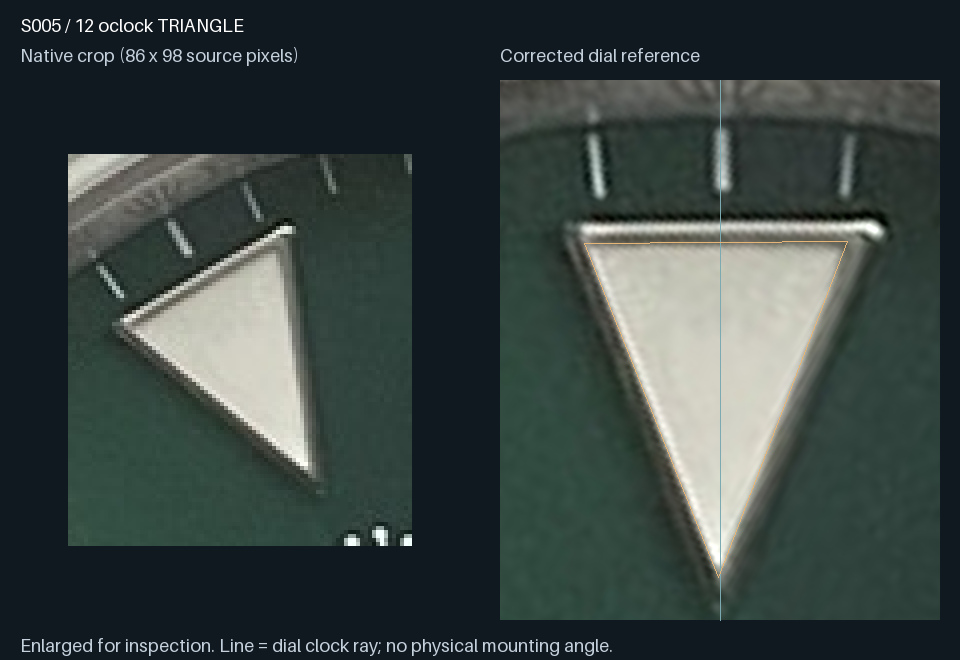

S005 · 12 o’clock triangular insert: native crop and corrected dial reference. Amber outline, when present, is a candidate luminous silhouette

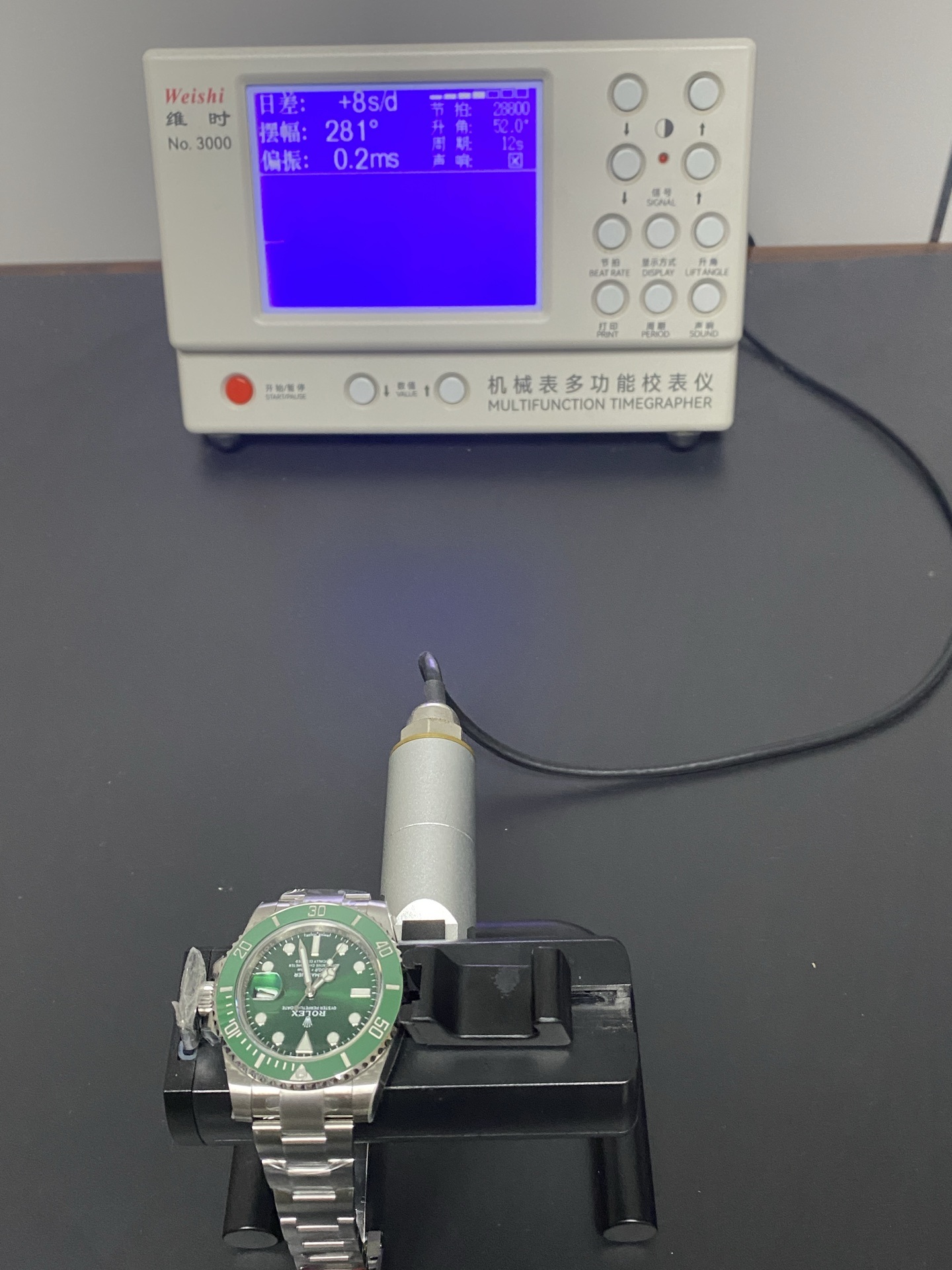

S015 · Full timegrapher source frame; screen-crop coverage is unverified. Readings describe this snapshot only.
Supporting dial views
Additional camera references
S005
Camera geometry corrected

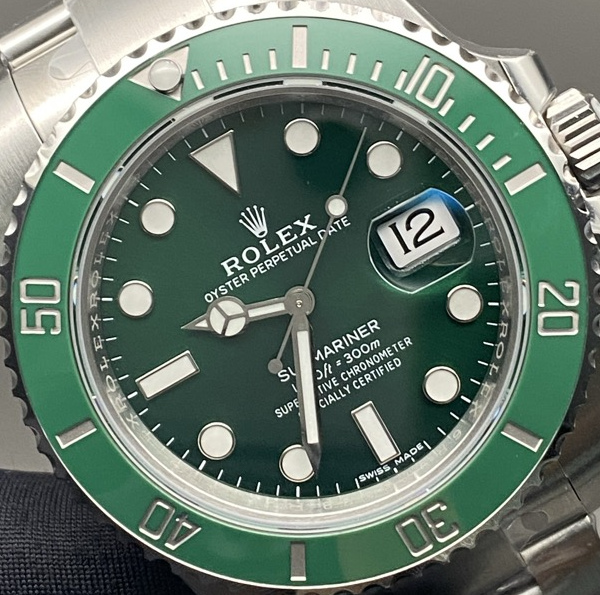

S005 · Original camera geometry · dial and bezel context

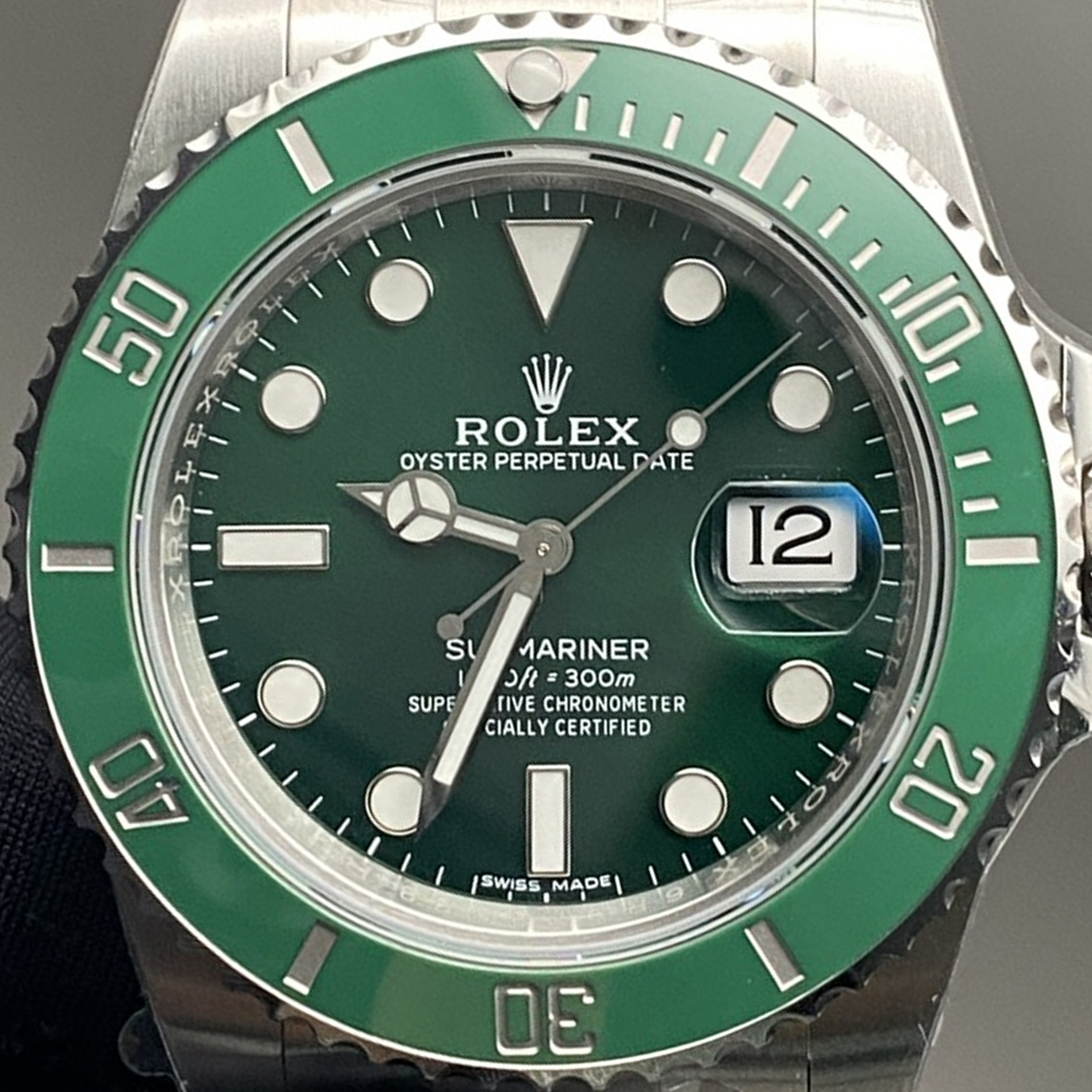

S005 · Camera geometry corrected. Image rotated approximately 29.3° clockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using isolated printed minute strokes. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.
Position and angle checks
2 dial views · 24 checks
S003 · 1 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset +0.1° from clock ray (geometry + segmentation -0.3° to +0.2°) · image-plane only · Complete unoccluded circular lume plot with cleanly isolated mask.
S003 · 2 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation -0.3° to +0.2°) · image-plane only · Unoccluded circular luminous marker fully segmented.
S003 · 3 o’clock
S003 · Native position detail
Date window · no luminous marker or bar-axis measurement · Date window aperture with printed numeral, not a luminous insert.
S003 · 4 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation +0.2° to +0.3°) · image-plane only · Unoccluded round luminous marker with intact segment.
S003 · 5 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset +0.1° from clock ray (geometry + segmentation -0.2° to +0.1°) · image-plane only · Fully visible circular lume plot without occlusion.
S003 · 6 o’clock
S003 · Native position detail
Angle unverified · feature edges uncertain · Rectangular baton lume has an inverted or incomplete mask segment selecting only the border outline.
S003 · 7 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · Minute hand tip partially overlaps the outer frame and luminous area.
S003 · 8 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.2° to -0.1°) · image-plane only · Complete round luminous marker unoccluded.
S003 · 9 o’clock
S003 · Native position detail
-0.5° luminous image axis · sensitivity -0.9° to +0.0° (geometry + segmentation; not physical tilt) · centre offset -0.3° from clock ray (geometry + segmentation -0.4° to -0.3°) · image-plane only · Unoccluded elongated rectangular luminous baton with complete mask.
S003 · 10 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.1° to +0.5°) · image-plane only · Circular luminous plot free from occlusion by nearby seconds hand counterweight.
S003 · 11 o’clock
S003 · Native position detail
Round feature · position check; no unique axis · centre offset -0.0° from clock ray (geometry + segmentation -0.1° to +0.3°) · image-plane only · Clear unoccluded round luminous marker cleanly segmented.
S003 · 12 o’clock
S003 · Native position detail
Triangular insert · centre placement; precise rotation unmeasured · centre offset +0.3° from clock ray (geometry + segmentation +0.1° to +0.3°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. S003’s native and corrected edges show a near-level luminous base and an apex beneath its midpoint; no quantitative triangle direction is released.
S005 · 1 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.3° to -0.0°) · image-plane only · Circular luminous plot is unobscured.
S005 · 2 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · centre offset +0.1° from clock ray (geometry + segmentation -0.4° to +0.1°) · image-plane only · Circular luminous plot is clear with tip of seconds hand clear of lume.
S005 · 3 o’clock
S005 · Native position detail
Date window · no luminous marker or bar-axis measurement · Date window aperture without luminous insert.
S005 · 4 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.3° to +0.3°) · image-plane only · Circular luminous plot is unobscured.
S005 · 5 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · Circular luminous plot is unobscured.
S005 · 6 o’clock
S005 · Native position detail
+0.1° luminous image axis · sensitivity -0.1° to +0.3° (geometry + segmentation; not physical tilt) · centre offset -0.3° from clock ray (geometry + segmentation -0.7° to -0.2°) · image-plane only · Rectangular luminous marker is completely unoccluded.
S005 · 7 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · Circular plot is partially occluded by the minute hand.
S005 · 8 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.3° to +0.3°) · image-plane only · Circular luminous plot is unobscured.
S005 · 9 o’clock
S005 · Native position detail
-0.4° luminous image axis · sensitivity -0.6° to -0.4° (geometry + segmentation; not physical tilt) · centre offset -0.3° from clock ray (geometry + segmentation -0.5° to -0.3°) · image-plane only · Rectangular luminous marker is unoccluded.
S005 · 10 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · Circular luminous plot is unobscured.
S005 · 11 o’clock
S005 · Native position detail
Round feature · position check; no unique axis · Circular luminous plot is unobscured.
S005 · 12 o’clock
S005 · Native position detail
Angle unverified · feature edges uncertain · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to -0.0°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. S003’s native and corrected edges show a near-level luminous base and an apex beneath its midpoint; no quantitative triangle direction is released. · Luminous top-edge direction -0.4° (sensitivity -0.4° to -0.3°); apex-to-base direction -0.5° (sensitivity -0.7° to +0.3°). Image-plane silhouette directions, not physical mounting angles or factory tolerances.
