Ethan · VSF claim · 14-photo QC

VSF Black/Grey GMT · 6W06V628

HOLD · clarify the findings

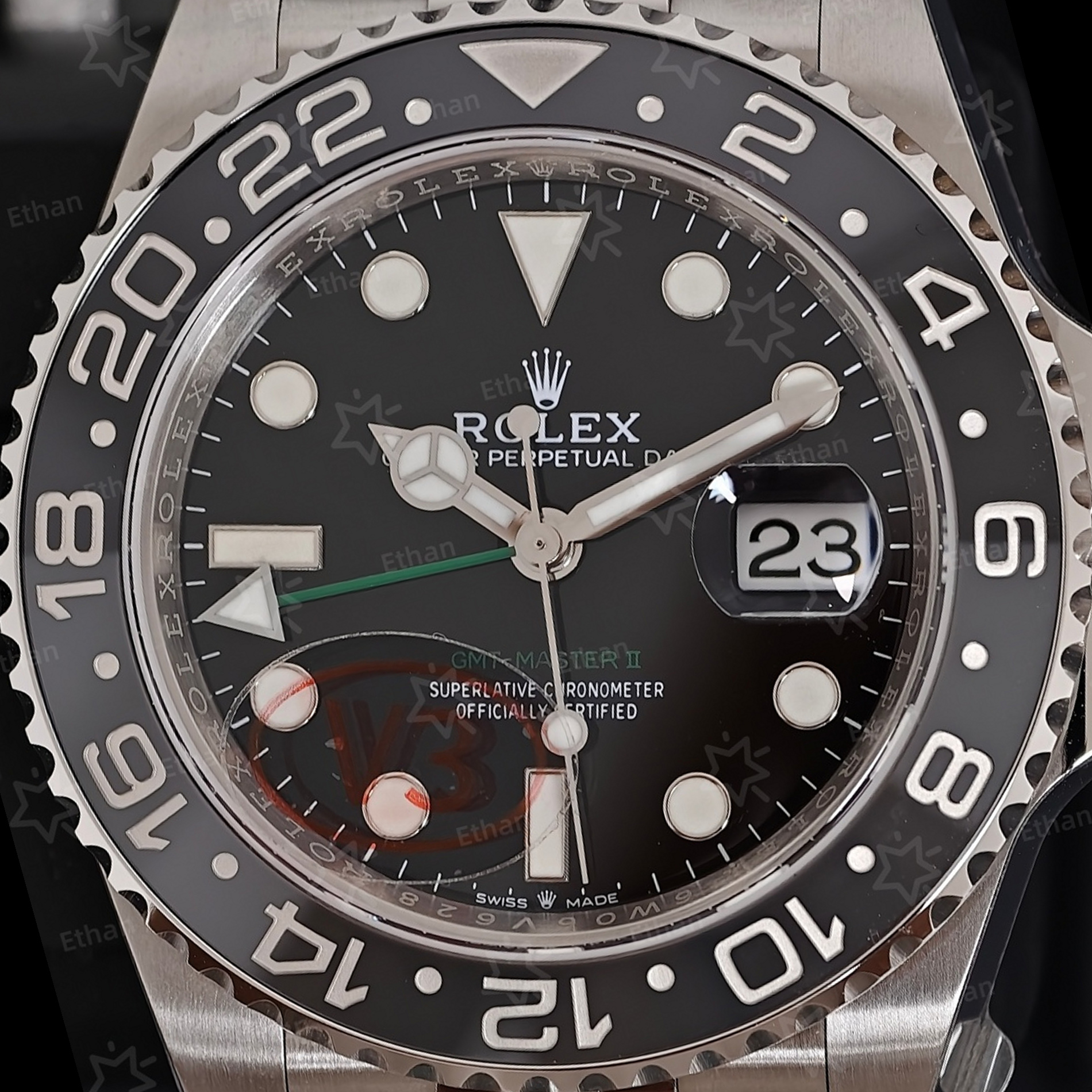

S004 · Camera geometry corrected. Image rotated approximately 15.0° counterclockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using the printed ticks’ inner tips after broad ink detection. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.

RECOMMENDATION

Dial alignment, the 12 o’clock triangle, visible hands and date show no compelling defect. Exterior finish requires confirmation: Obtain cleaned, film-free diffuse-light photographs of the named surfaces at two angles before clearing finish QC.

Dial placement and bar straightness

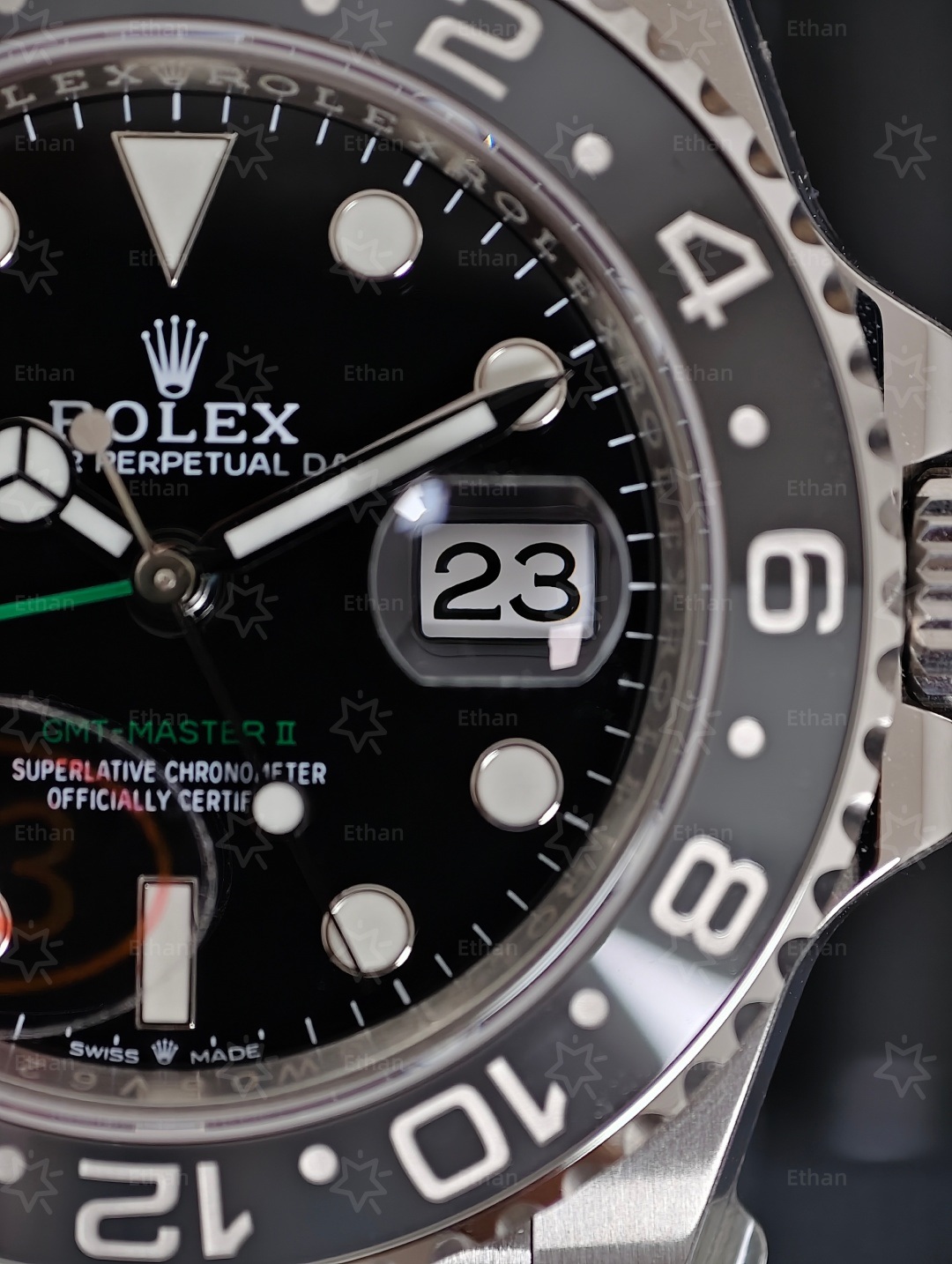

S001–S004 support generally orderly marker placement. S003 flags a subtle 6 o’clock lean. S001’s verified luminous axis is 1.1° with sensitivity -0.1° to 1.1°; its separate placement offset is -0.1° with sensitivity -0.3° to 0.0°. These geometry-plus-segmentation sensitivity ranges are not confidence intervals.

S001 S002 S003 S004

12 o’clock triangle orientation

S004’s native triangle follows the photograph’s roll; corrected luminous and frame edges show no convincing lean. S002’s native base and apex are balanced, and the corrected amber contour follows the luminous insert rather than its frame. S001’s native and corrected edges show no obvious lean but are very low resolution. The edge evidence does not support a consequential triangle-orientation concern.

S001 S002 S004

Hands, text and date

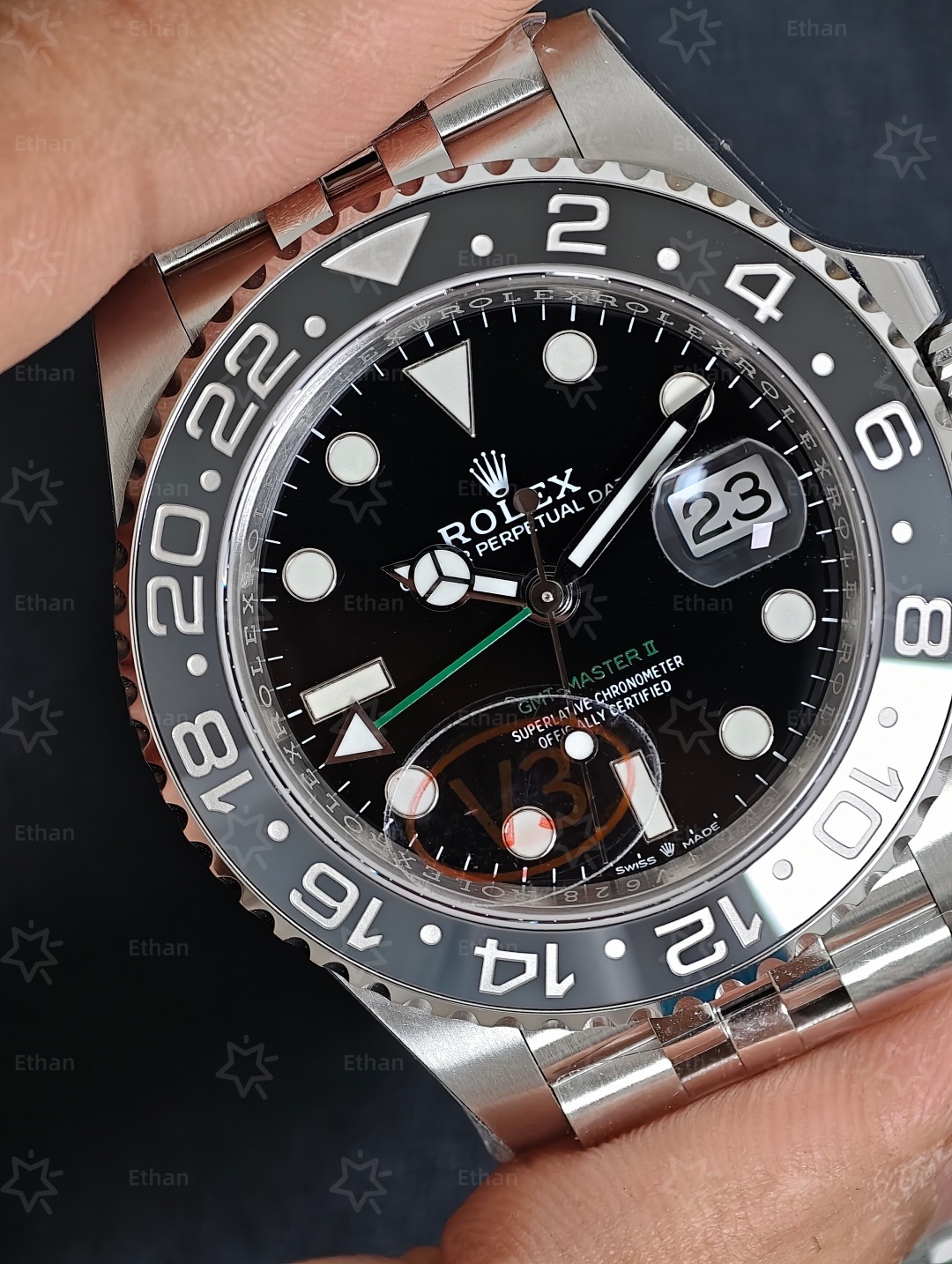

S004 shows intact visible hand shapes and a legible date 23. Hands cover portions of dial text and markers; sticker graphics and reflections cross the lower dial in S004 and S005. No malformed character or visible hand defect is established.

S001 S004 S005 S012

Raised bezel

S004’s native bezel view shows the numbered insert and triangular reference, but is tilted and reflective. No independently corroborated local numeral-spacing or transition defect is supplied. A consequential bezel-alignment claim is unsupported.

S002 S004 S007

Exterior finish requires confirmation

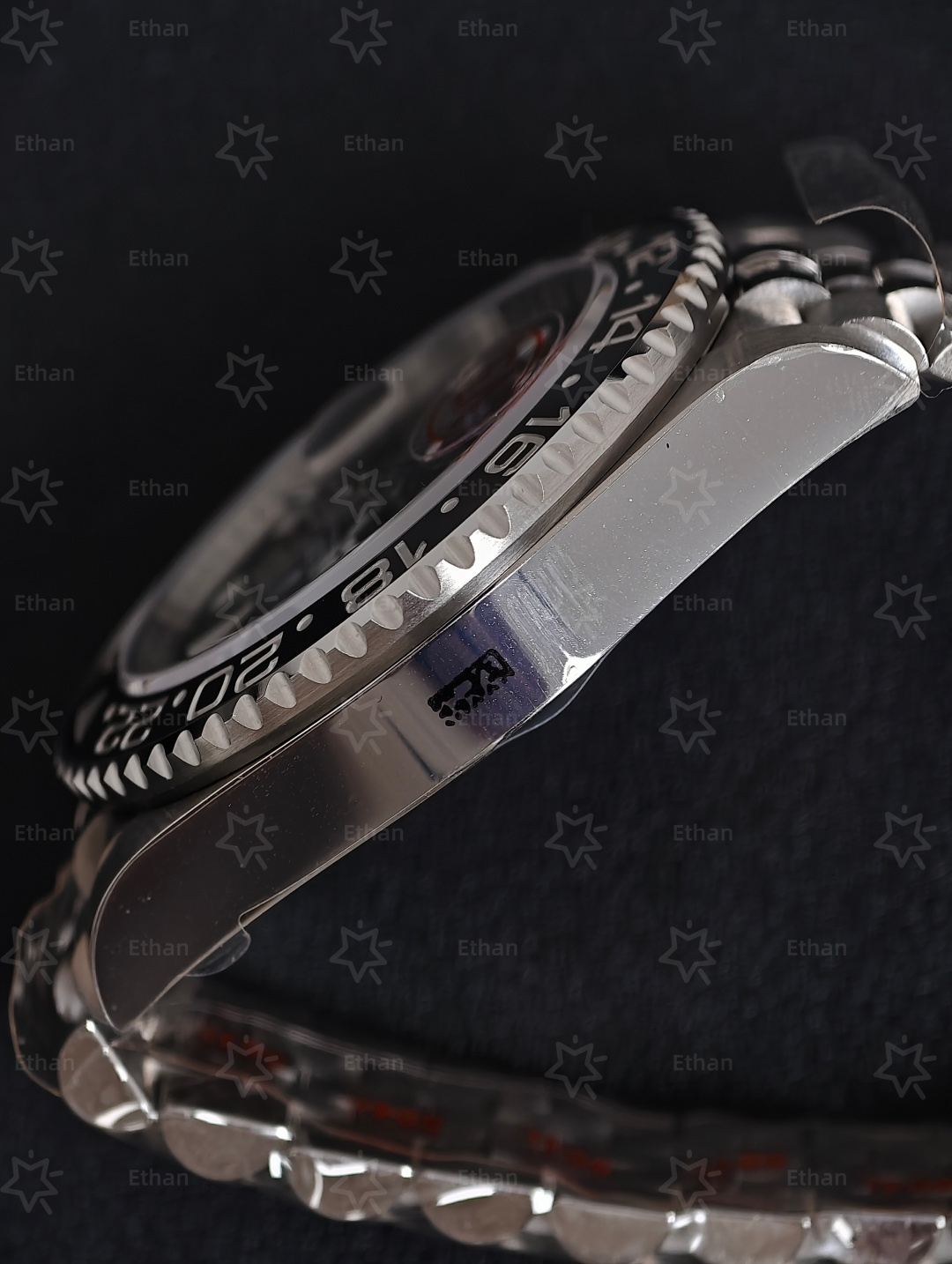

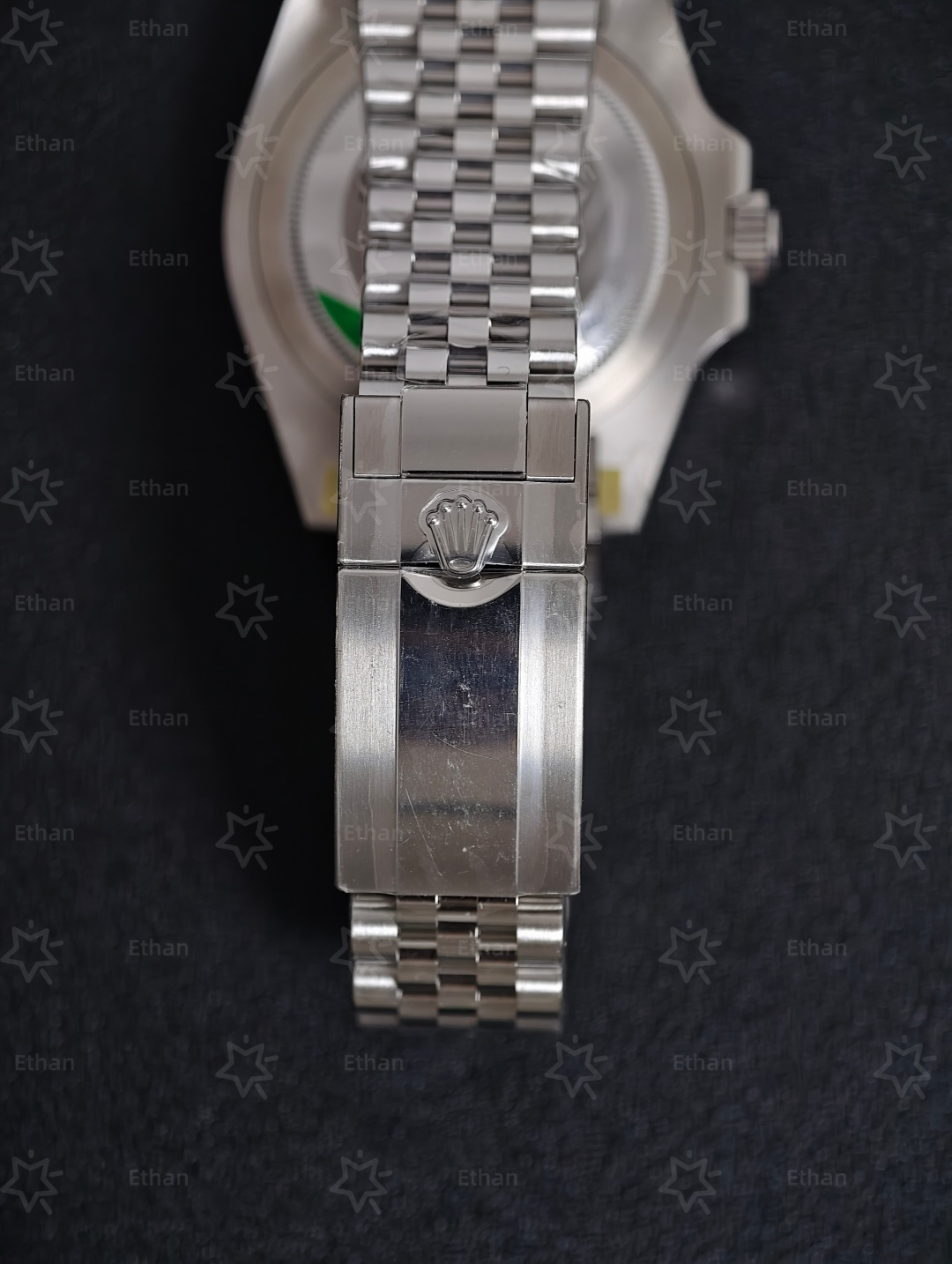

S008 reports multiple fine linear marks on the polished clasp; S007 and S009 also report exterior scuff-like lines. Reflections, residue and protective material remain plausible alternatives. Repeated finish concerns should not be dismissed as one isolated reflection, although the records do not prove permanent scratches or demonstrate the same scratch across views. Obtain cleaned, film-free diffuse-light photographs of the named surfaces at two angles before clearing finish QC.

S007 S008 S009 S010

Timegrapher snapshot

Rate +3 s/day; Amplitude 266 °; Beat error 0 ms; Lift angle 52 ° Displayed amplitude depends on the selected lift angle; the correct setting for the installed movement is not verified. Winding, stabilization, position and recording duration are unknown. Two transcriptions of one source are not independent timing measurements.

S014

Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.

Detail checks

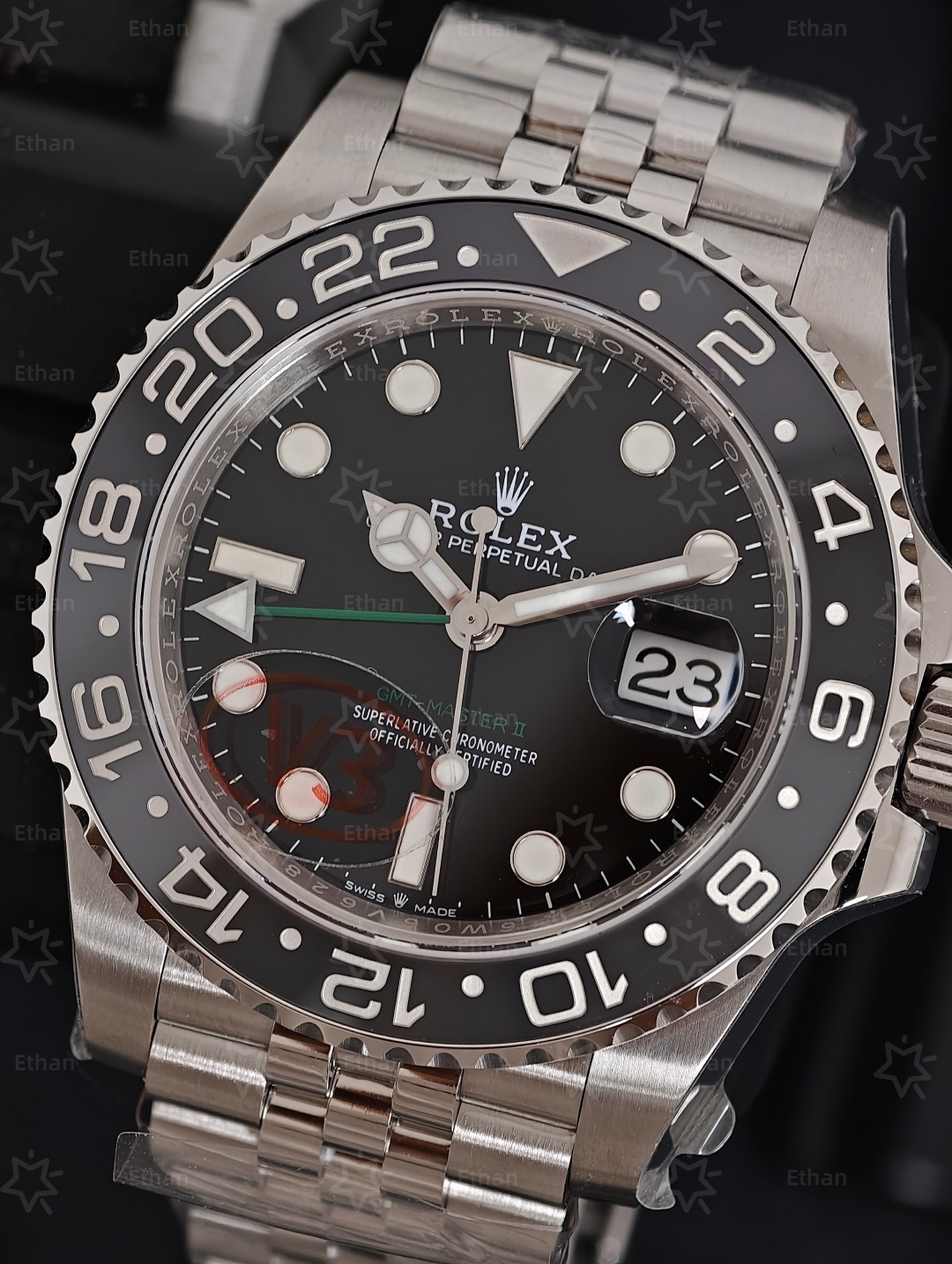

S004 · Native full-bezel context. Raised bezel features assessed visually in this original camera view

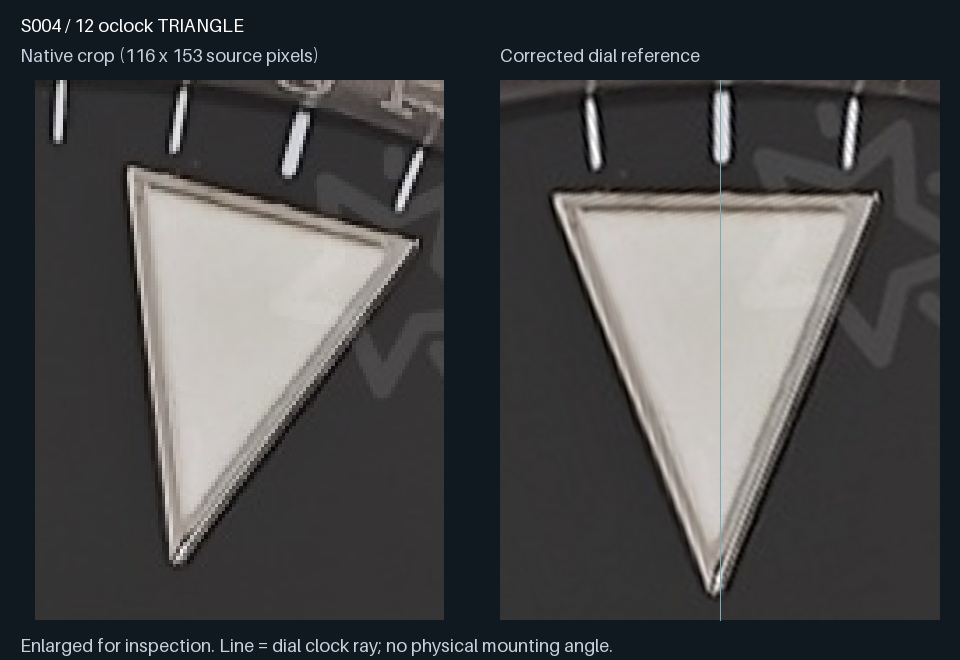

S004 · 12 o’clock triangular insert: native crop and corrected dial reference. Amber outline, when present, is a candidate luminous silhouette

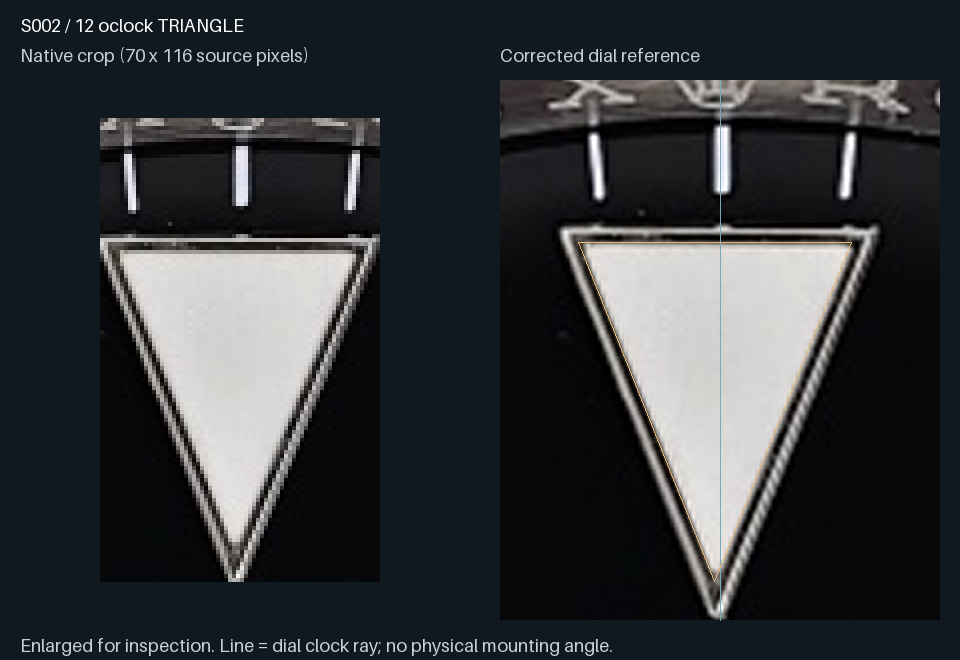

S002 · 12 o’clock triangular insert: native crop and corrected dial reference. Amber outline, when present, is a candidate luminous silhouette

S001 · 12 o’clock triangular insert: native crop and corrected dial reference. Amber outline, when present, is a candidate luminous silhouette

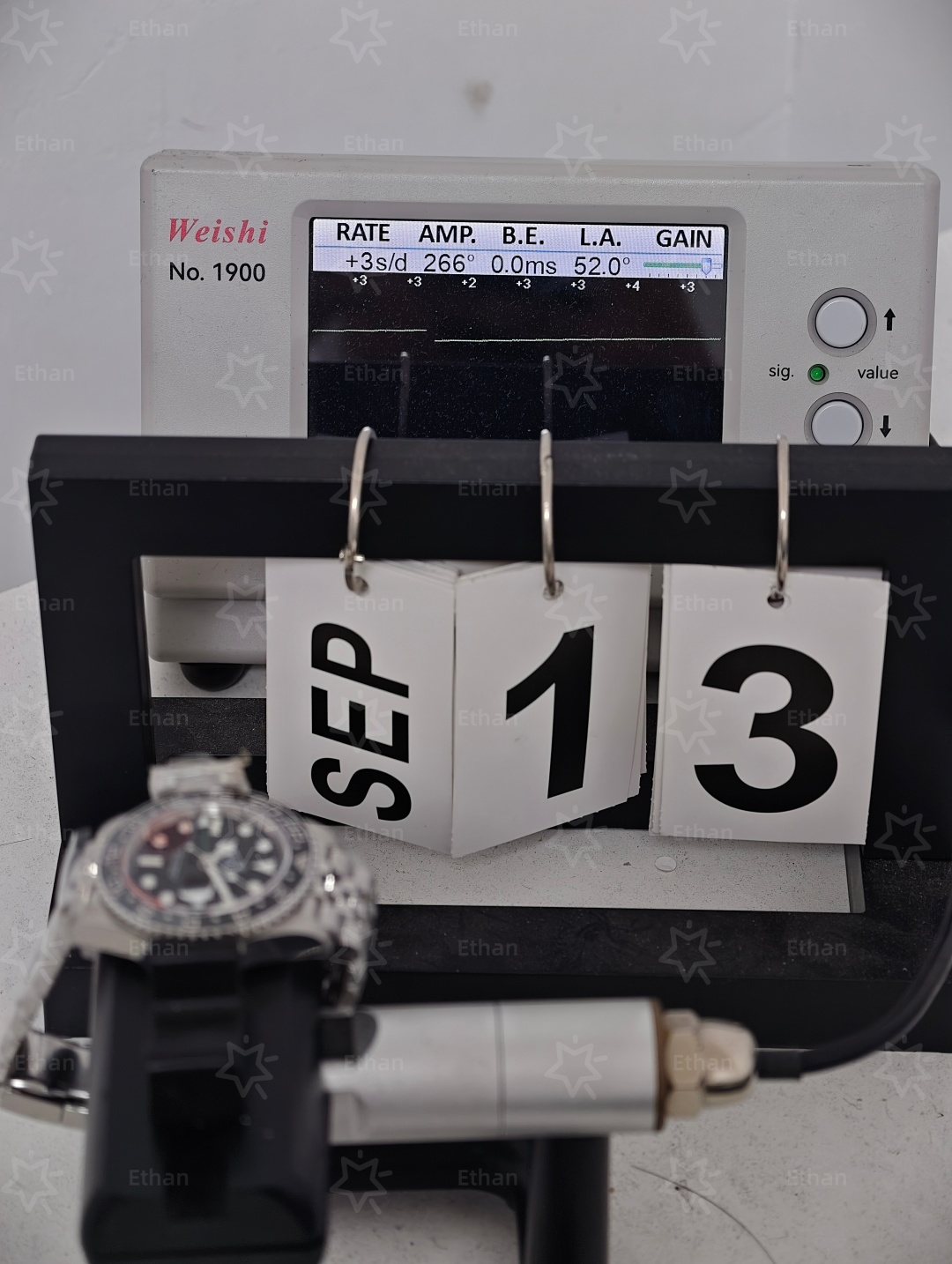

S014 · Full timegrapher source frame; screen-crop coverage is unverified. Readings describe this snapshot only.

Supporting dial views

Additional camera references

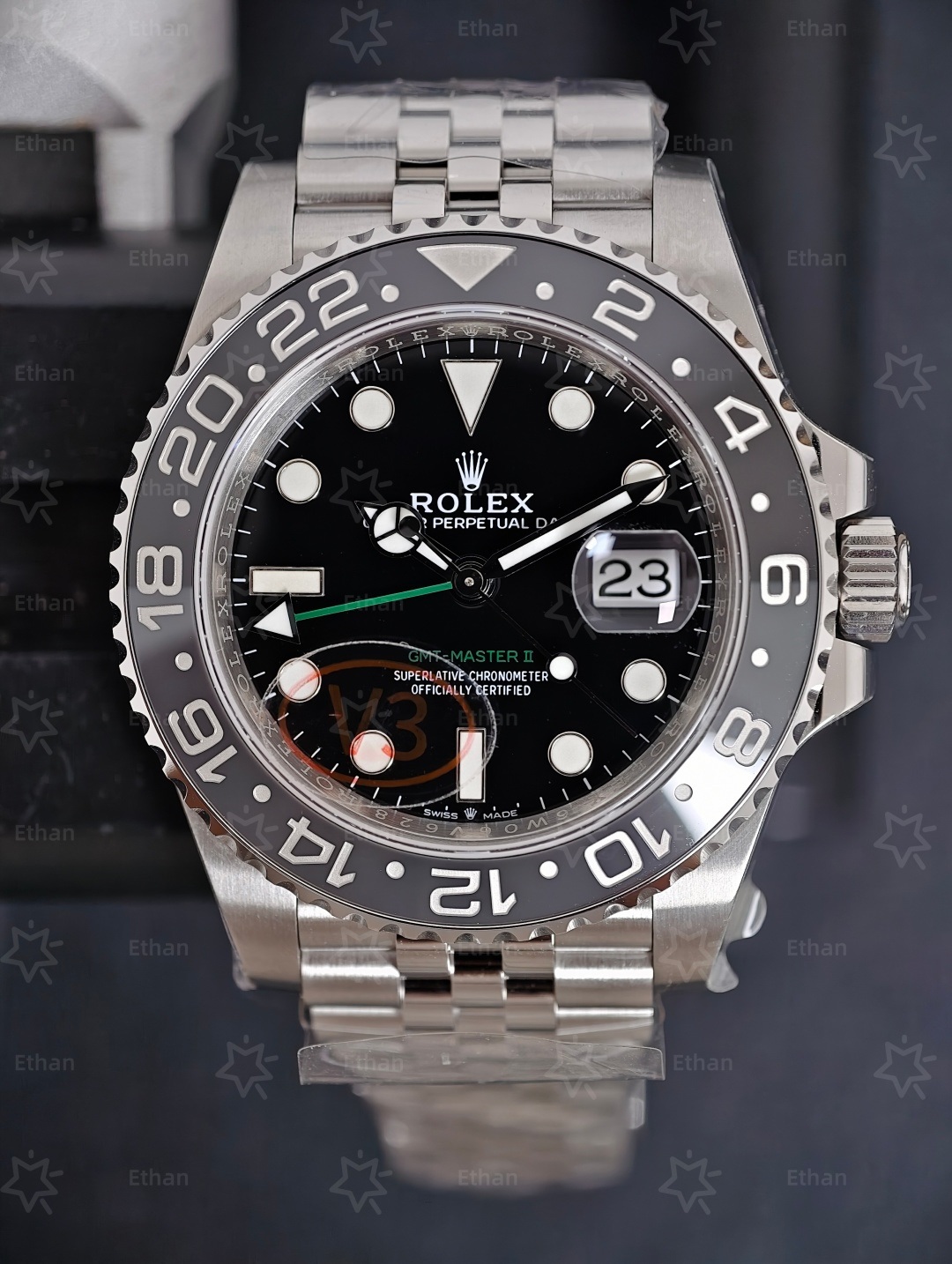

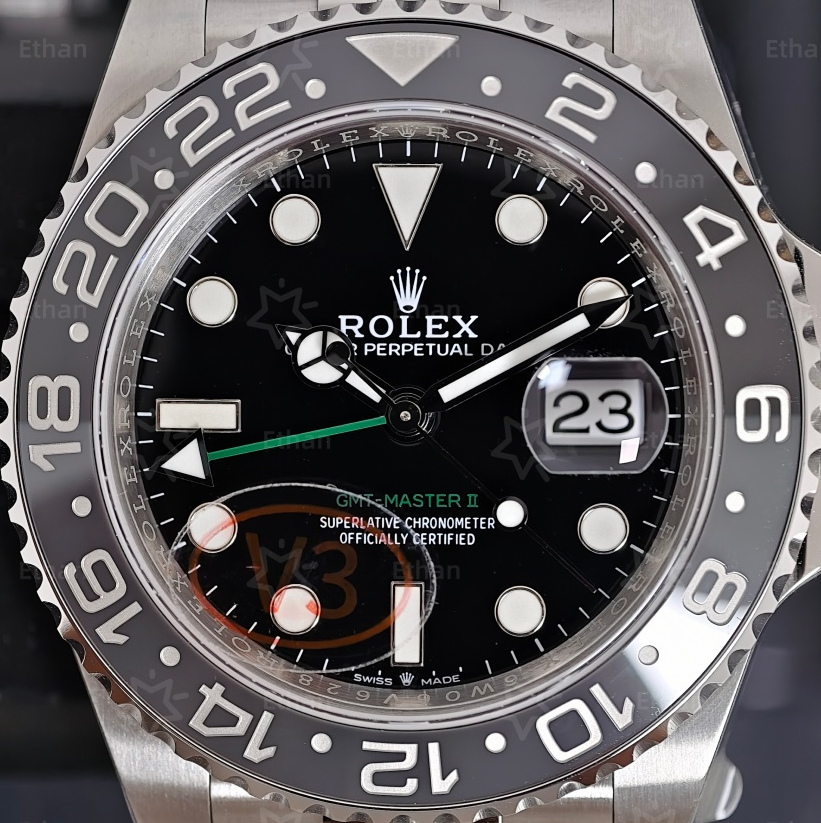

S002

Camera geometry corrected

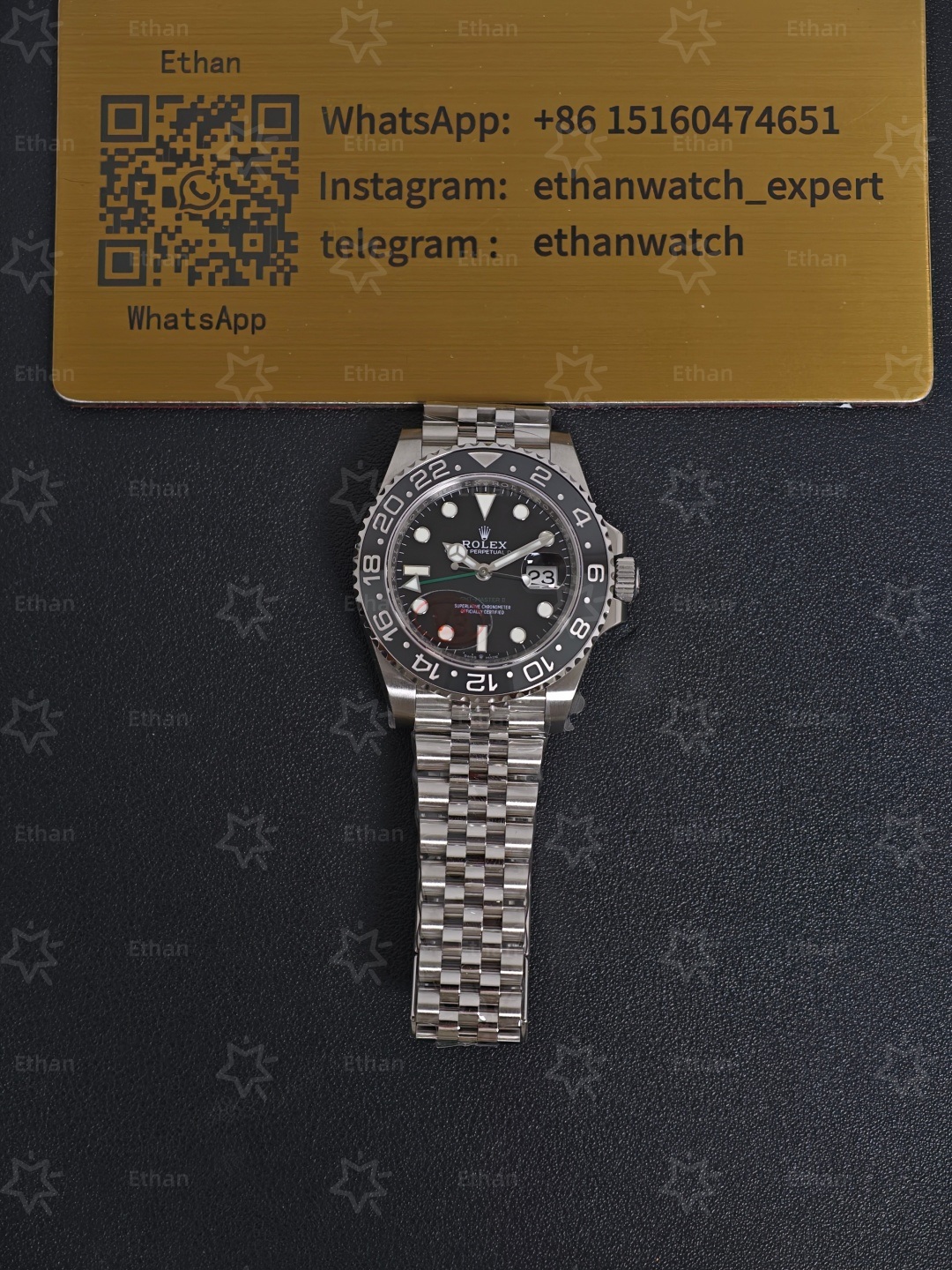

S001

Camera geometry corrected

Position and angle checks

3 dial views · 36 checks

S004 · 1 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.2° to -0.2°) · image-plane only · Complete round lume insert without obstruction.

S004 · 2 o’clock

Angle unverified · local axis not confirmed · Round lume insert partially occluded by the minute hand.

S004 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date window aperture with cyclops magnification.

S004 · 4 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.3° to -0.2°) · image-plane only · Unobstructed round luminous marker.

S004 · 5 o’clock

Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.1° to -0.0°) · image-plane only · Clear round luminous marker with complete mask.

S004 · 6 o’clock

Angle unverified · local axis not confirmed · Elongated baton partially occluded by the seconds hand.

S004 · 7 o’clock

Round feature · position check; no unique axis · Round lume partially obscured by sticker marking overlay.

S004 · 8 o’clock

Round feature · position check; no unique axis · Round marker overlaid by sticker edge and graphic markings.

S004 · 9 o’clock

Angle unverified · local axis not confirmed · Rectangular baton partially occluded by the GMT hand tip.

S004 · 10 o’clock

Round feature · position check; no unique axis · centre offset -0.0° from clock ray (geometry + segmentation -0.1° to -0.0°) · image-plane only · Unoccluded round luminous marker.

S004 · 11 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.2° to -0.1°) · image-plane only · Fully visible round luminous marker.

S004 · 12 o’clock

Angle unverified · feature edges uncertain · centre offset -0.3° from clock ray (geometry + segmentation -0.4° to -0.3°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. S004’s native triangle follows the photograph’s roll; corrected luminous and frame edges show no convincing lean.

S002 · 1 o’clock

Round feature · position check; no unique axis · centre offset +0.1° from clock ray (geometry + segmentation +0.1° to +0.1°) · image-plane only · Round luminous marker clearly visible without occlusion.

S002 · 2 o’clock

Angle unverified · feature edges uncertain · Round luminous marker partially occluded by the minute hand.

S002 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date aperture with cyclops magnifier visible instead of luminous insert.

S002 · 4 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to -0.1°) · image-plane only · Round luminous marker visible without obstruction.

S002 · 5 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.4° to +0.1°) · image-plane only · Round luminous marker fully visible and unobstructed.

S002 · 6 o’clock

Angle unverified · feature edges uncertain · centre offset -0.2° from clock ray (geometry + segmentation -0.5° to -0.0°) · image-plane only · Vertical rectangular baton marker visible under crystal sticker overlay.

S002 · 7 o’clock

Round feature · position check; no unique axis · Round luminous marker partially obscured by circular sticker graphic.

S002 · 8 o’clock

Angle unverified · feature edges uncertain · Round luminous marker partly occluded by sticker border on crystal.

S002 · 9 o’clock

Angle unverified · local axis not confirmed · Horizontal rectangular baton marker occluded along lower edge by GMT hand.

S002 · 10 o’clock

Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.2° to -0.0°) · image-plane only · Round luminous marker clearly visible without occlusion.

S002 · 11 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.3° to -0.1°) · image-plane only · Round luminous marker fully visible without obstruction.

S002 · 12 o’clock

Triangular insert · centre placement; precise rotation unmeasured · centre offset -0.3° from clock ray (geometry + segmentation -0.3° to -0.3°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. S004’s native triangle follows the photograph’s roll; corrected luminous and frame edges show no convincing lean. · Luminous top-edge direction +0.1° (sensitivity +0.0° to +0.1°); apex-to-base direction +0.3° (sensitivity +0.1° to +0.3°). Image-plane silhouette directions, not physical mounting angles or factory tolerances.

S001 · 1 o’clock

Round feature · position check; no unique axis · centre offset +0.0° from clock ray (geometry + segmentation -0.2° to +0.2°) · image-plane only · Complete round luminous marker without occlusion.

S001 · 2 o’clock

Angle unverified · local axis not confirmed · Round luminous marker partially occluded by the minute hand.

S001 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date window showing 23 with no luminous insert.

S001 · 4 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.4° to -0.1°) · image-plane only · Complete round luminous marker without occlusion.

S001 · 5 o’clock

Round feature · position check; no unique axis · centre offset -0.1° from clock ray (geometry + segmentation -0.2° to +0.1°) · image-plane only · Complete round luminous marker without occlusion.

S001 · 6 o’clock

+1.1° luminous image axis · sensitivity -0.1° to +1.1° (geometry + segmentation; not physical tilt) · centre offset -0.0° from clock ray (geometry + segmentation -0.3° to +0.0°) · image-plane only · Complete elongated luminous baton marker without occlusion.

S001 · 7 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.4° to -0.2°) · image-plane only · Complete round luminous marker visible through water-drop reflection.

S001 · 8 o’clock

Round feature · position check; no unique axis · centre offset +0.5° from clock ray (geometry + segmentation +0.4° to +0.7°) · image-plane only · Complete round luminous marker visible through water-drop reflection.

S001 · 9 o’clock

Angle unverified · local axis not confirmed · Elongated luminous marker partially occluded by GMT hand tip.

S001 · 10 o’clock

Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation -0.1° to +0.3°) · image-plane only · Complete round luminous marker without occlusion.

S001 · 11 o’clock

Round feature · position check; no unique axis · centre offset +0.3° from clock ray (geometry + segmentation -0.1° to +0.3°) · image-plane only · Complete round luminous marker without occlusion.

S001 · 12 o’clock

Triangular insert · centre placement; precise rotation unmeasured · centre offset -0.1° from clock ray (geometry + segmentation -0.3° to +0.1°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. S004’s native triangle follows the photograph’s roll; corrected luminous and frame edges show no convincing lean.

Source gallery

14 photos · 0 videos

14 photos · 0 videos in the saved gallery. Repeated views are not independent confirmation.
