Pingfan · black/grey bezel · Jubilee

VS GMT-Master II · 6W08V809

GL candidate · automated visual QC

S007 · Camera geometry corrected. Image rotated approximately 0.4° clockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using isolated printed minute strokes. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.

RECOMMENDATION

Visible QC is acceptable, with no compelling major defect. Dial placement looks coherent; the 9 o’clock luminous bar has small, view-dependent axis offsets rather than a confirmed mounting fault.

Dial placement and 9 o’clock bar axis

Visible markers follow the minute track coherently. The verified 9 o’clock lume axis is -0.2° in S005 (sensitivity -0.3° to -0.1°) and 1.9° in S008 (1.8° to 1.9°). Separately, radial placement is -0.2° (-0.3° to -0.2°) and -0.6° (-0.7° to -0.6°), respectively. These small image-only offsets differ between views and do not establish a consequential metal-frame mounting defect.

S005 S008 S007

Lower markers and printing

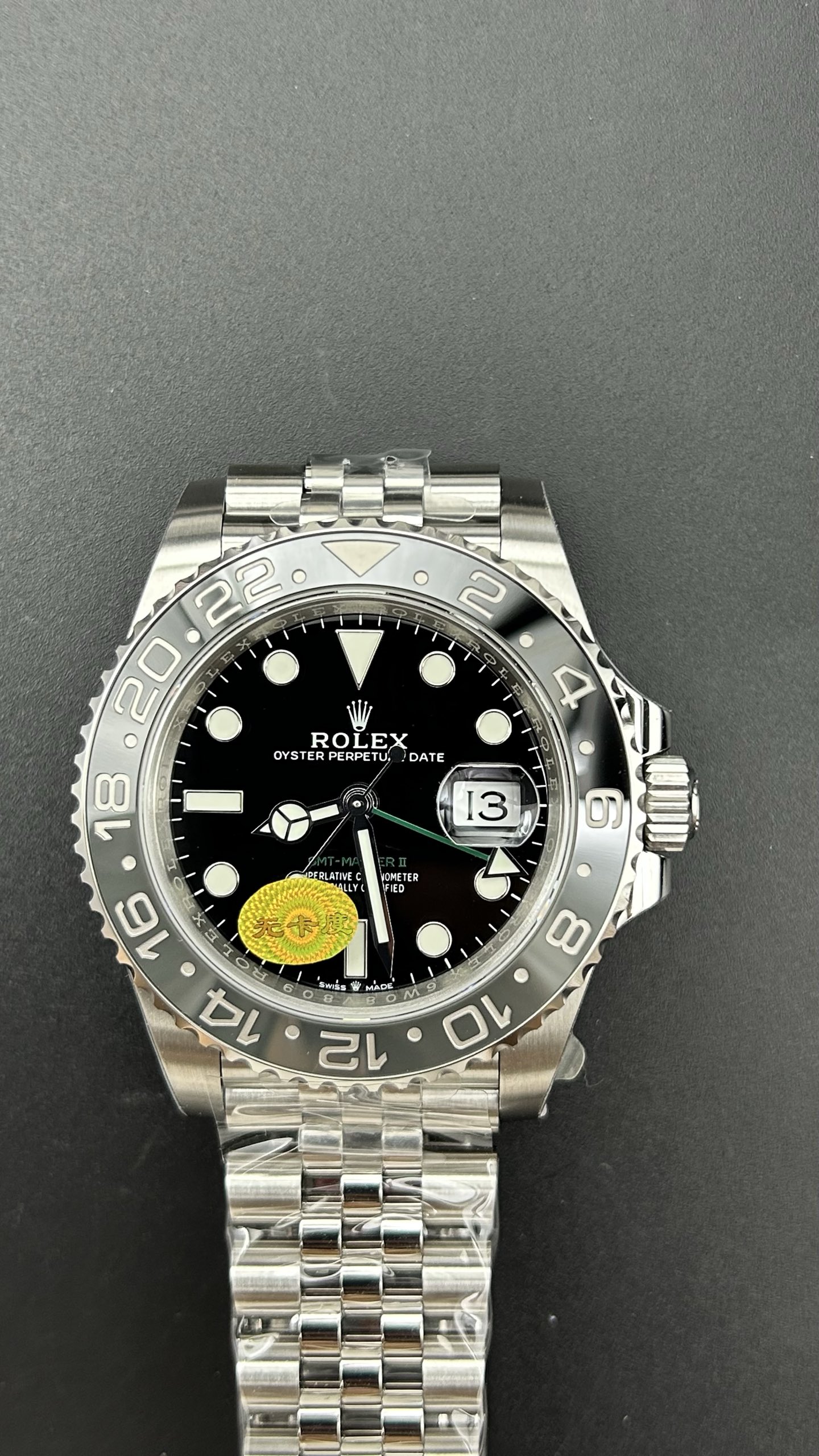

The sticker conceals the 7 o’clock region and part of the 6 o’clock bar; hands also cover lower printing and the 4 o’clock plot. S004's suggested 6 o’clock lean is not supported by a complete unobstructed component. Covered details are unverified, not malformed or missing.

S004 S005 S007 S008

Hands and date

Visible hand shapes and luminous fills show no clear damage. Date 13 is legible and contained within the aperture; angled cyclops views introduce distortion. Visible appearance is acceptable.

S005 S007 S008

Raised bezel

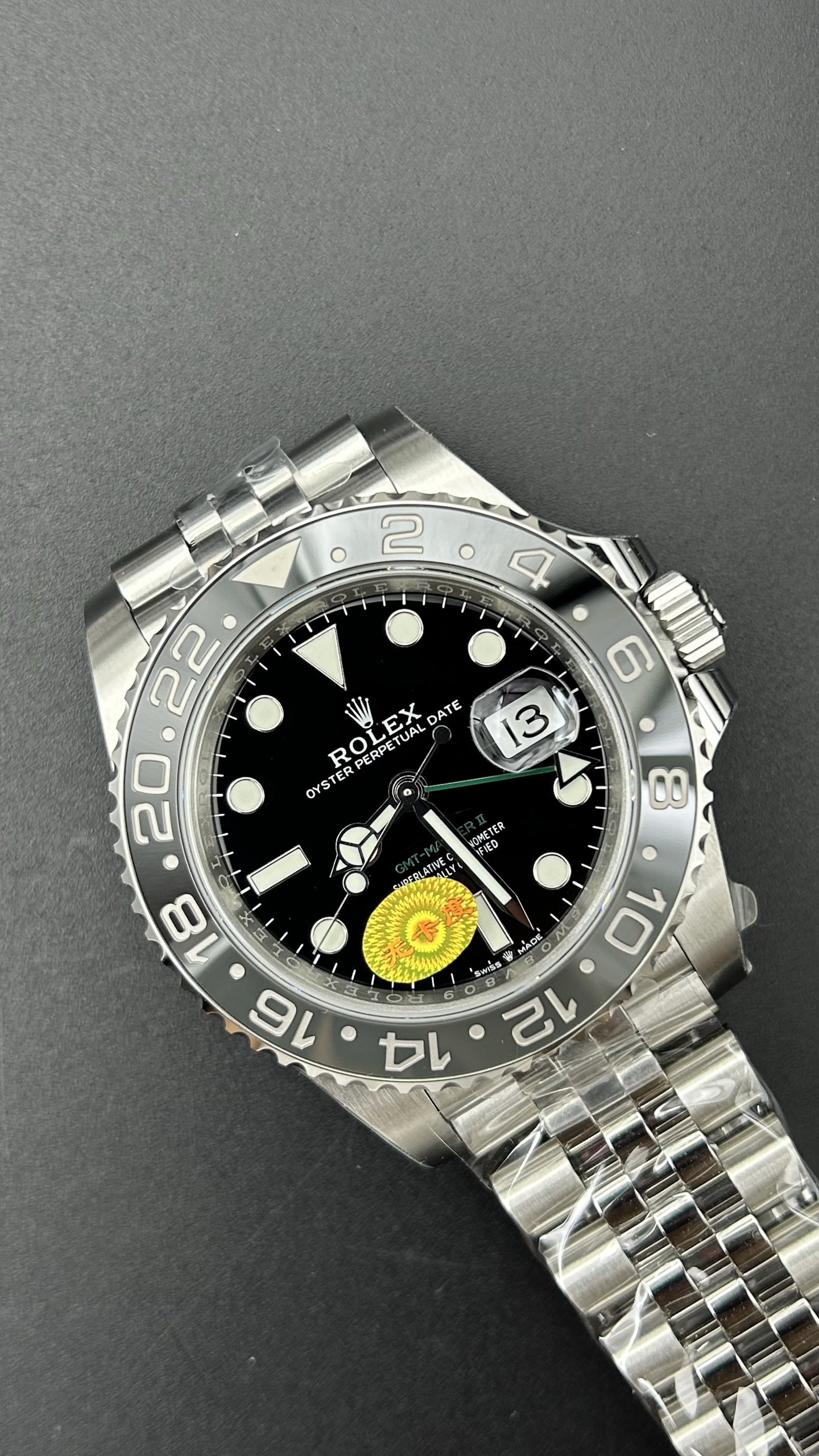

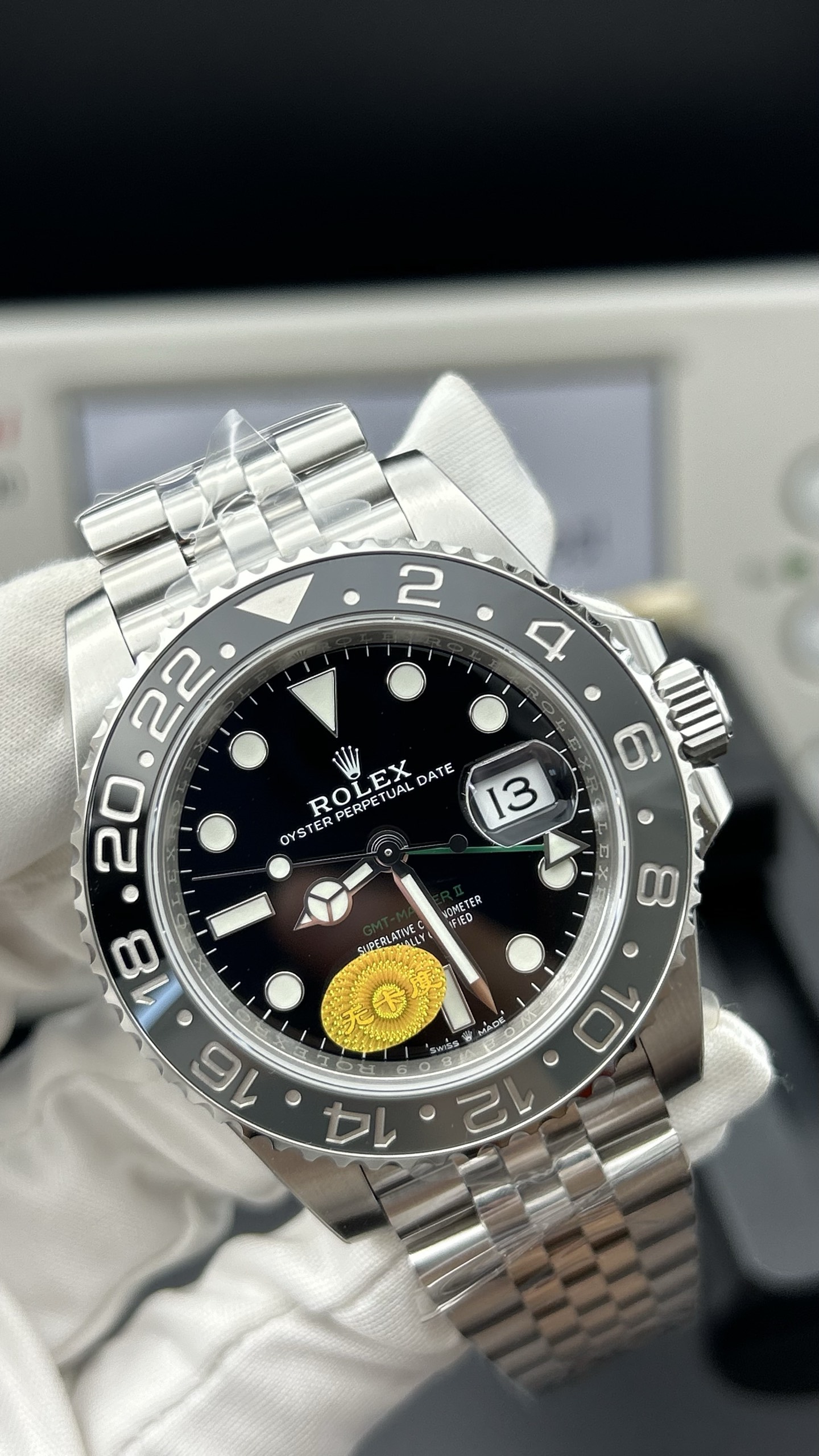

Native views show intact visible numerals, dots and triangle, without a consistently supported local spacing defect. Reflections and tilt affect the colour transitions. No consequential bezel defect is established.

S007 S006 S009

Exterior finish

Exposed case and bracelet areas show no clear major damage; lifted protective film and bright reflections obscure portions of the surfaces. Film folds are not evidence of scratches.

S006 S009 S012

Timegrapher snapshot

Rate +1 s/day; Amplitude 215 °; Beat error 0 ms; Lift angle 52 ° Displayed amplitude depends on the selected lift angle; the correct setting for the installed movement is not verified. Winding, stabilization, position and recording duration are unknown. Two transcriptions of one source are not independent timing measurements.

S020

Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.

Detail checks

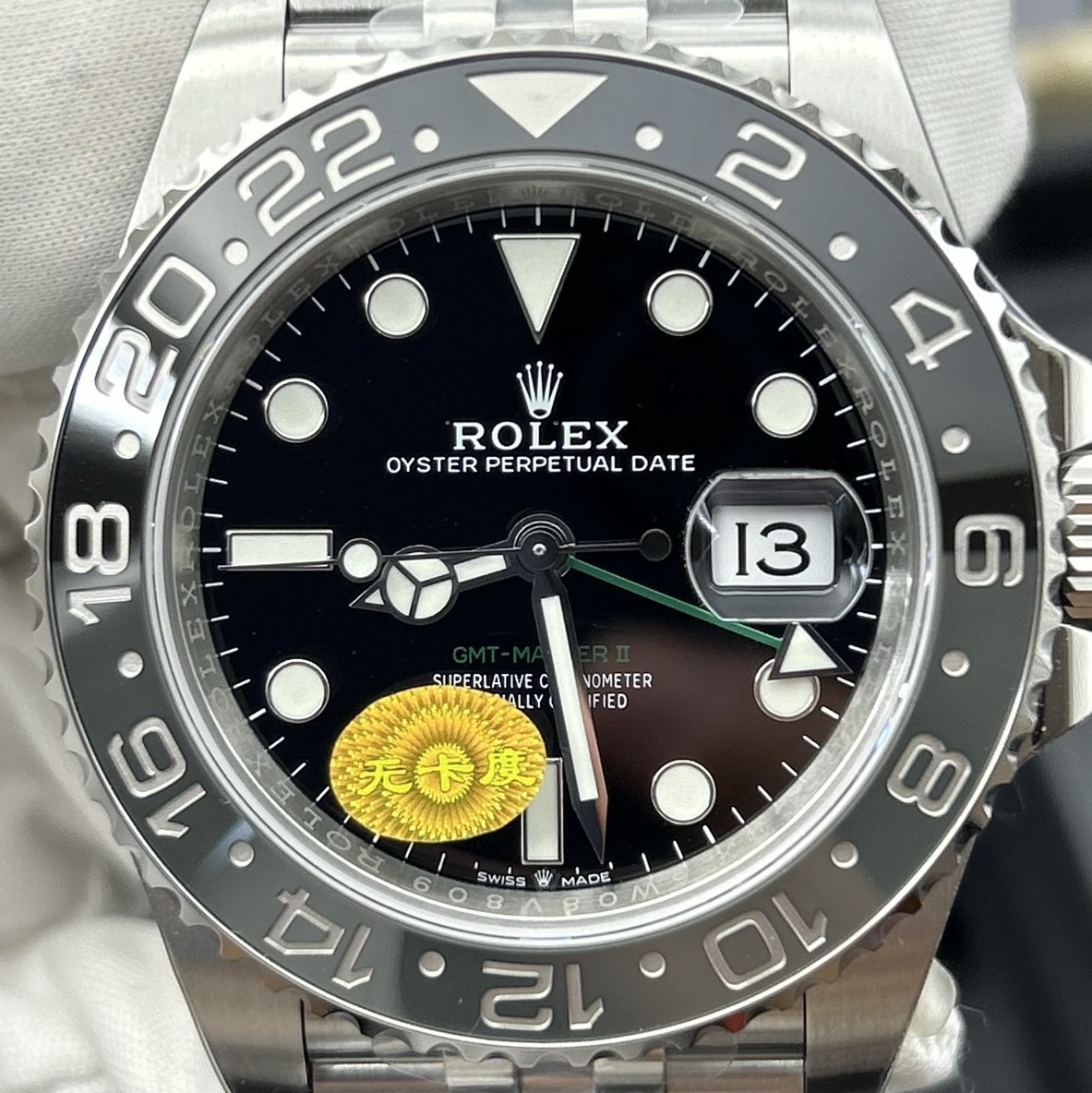

S007 · Native full-bezel context. Raised bezel features assessed visually in this original camera view

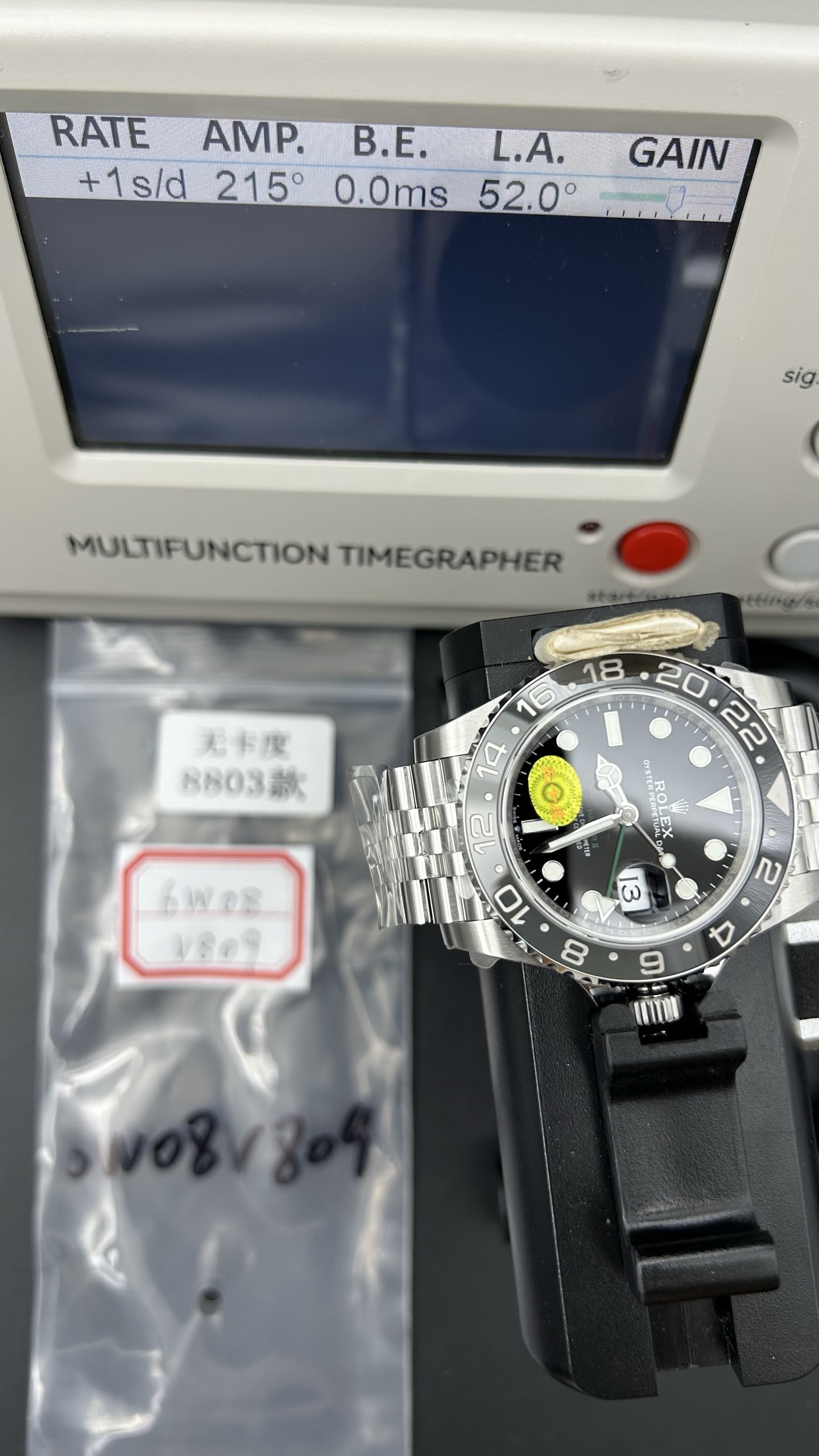

S020 · Full timegrapher source frame; screen-crop coverage is unverified. Readings describe this snapshot only.

Supporting dial views

Additional camera references

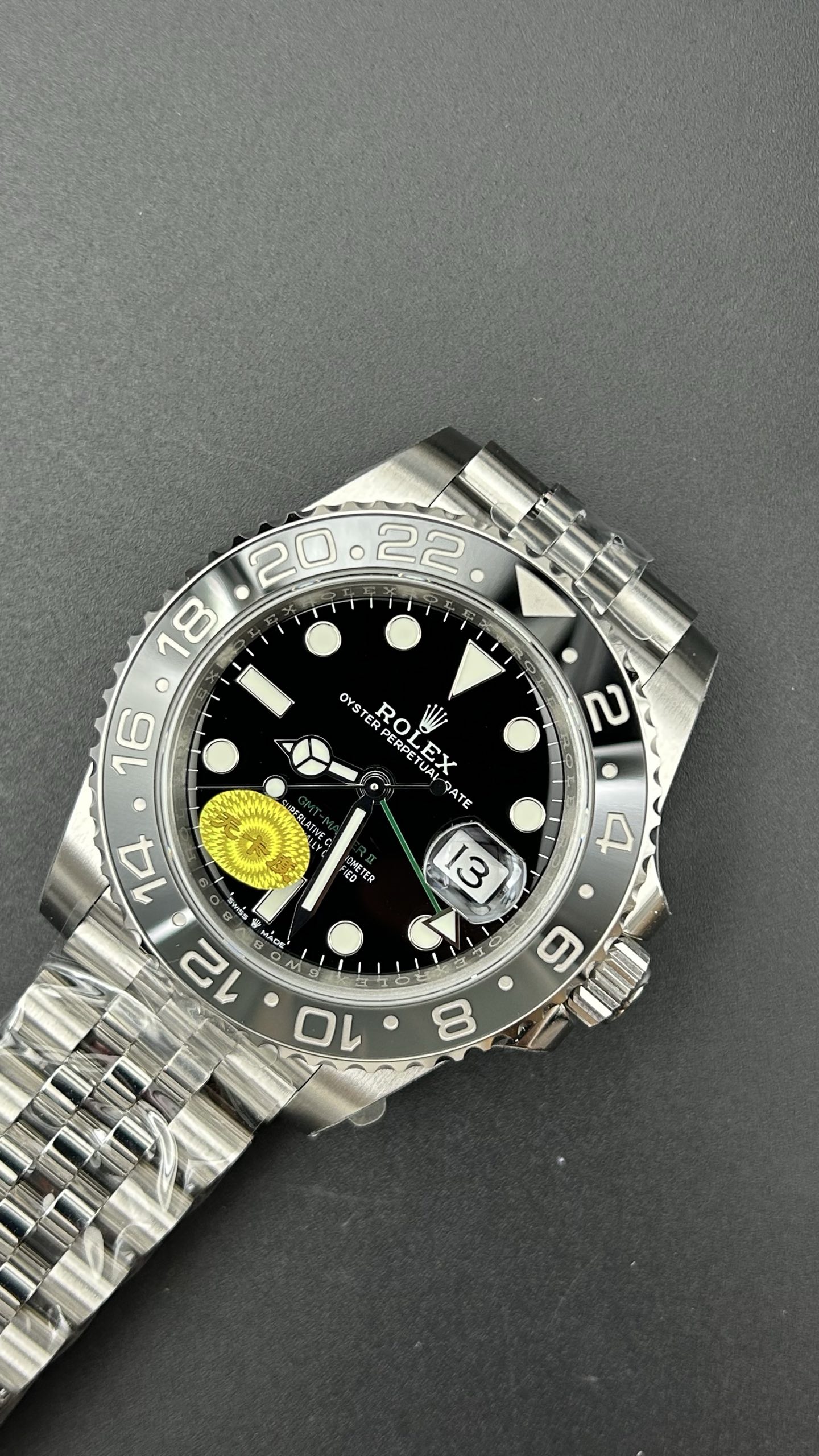

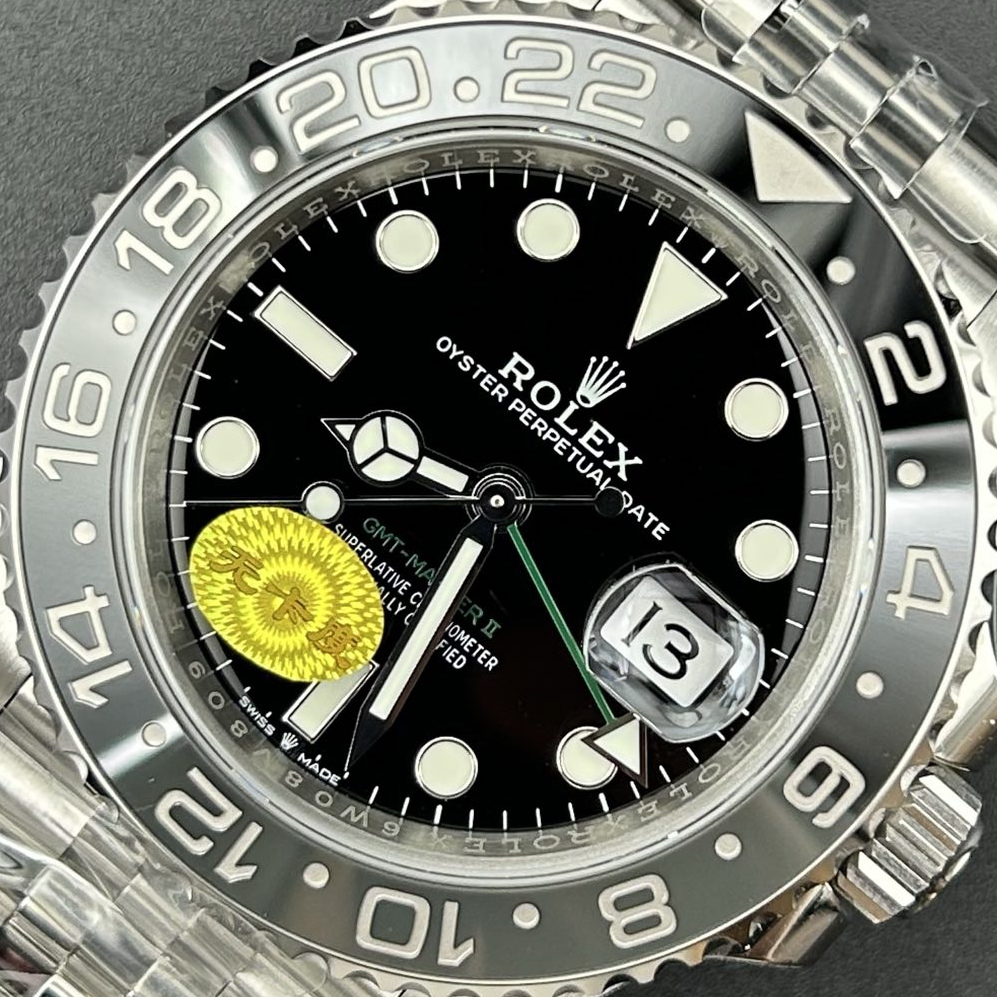

S005

Camera geometry corrected

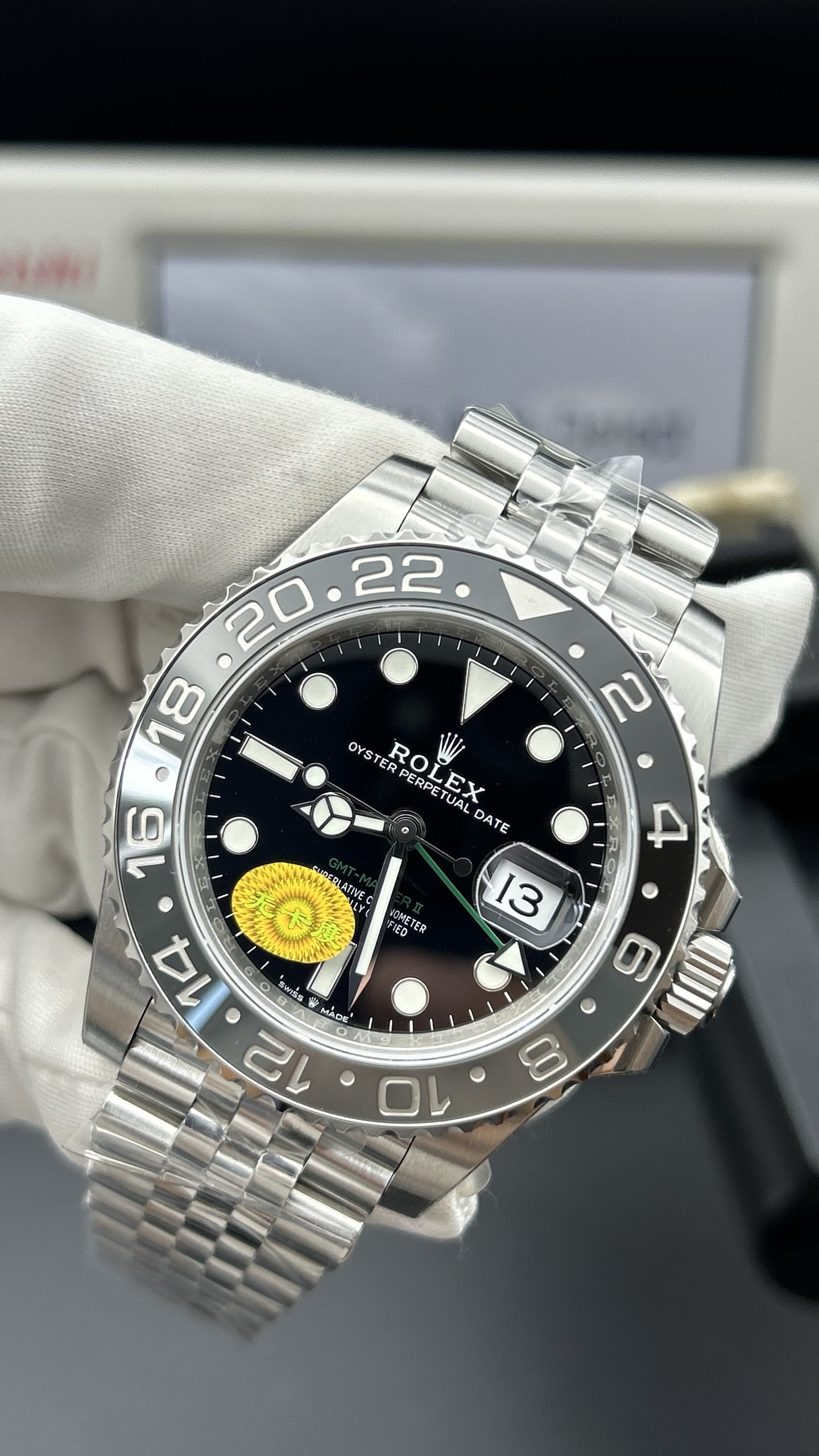

S008

Camera geometry corrected

Position and angle checks

3 dial views · 36 checks

S007 · 1 o’clock

Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation -0.2° to +0.3°) · image-plane only · Complete round lume plot visible without obstruction.

S007 · 2 o’clock

Round feature · position check; no unique axis · centre offset +0.4° from clock ray (geometry + segmentation +0.3° to +0.4°) · image-plane only · Unobstructed circular luminous marker with complete mask.

S007 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date window aperture showing numeral 13.

S007 · 4 o’clock

Angle unverified · feature edges uncertain · Circular lume marker partially occluded by the GMT hand arrow.

S007 · 5 o’clock

Round feature · position check; no unique axis · Clear round lume insert with isolated selection.

S007 · 6 o’clock

Angle unverified · local axis not confirmed · Rectangular baton partially obscured by sticker.

S007 · 7 o’clock

Angle unverified · feature edges uncertain · Marker location fully concealed beneath dial sticker.

S007 · 8 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.3° to +0.0°) · image-plane only · Round marker visible adjacent to sticker edge.

S007 · 9 o’clock

Angle unverified · local axis not confirmed · Elongated baton marker partially clipped along bottom edge.

S007 · 10 o’clock

Round feature · position check; no unique axis · centre offset -0.6° from clock ray (geometry + segmentation -0.7° to -0.5°) · image-plane only · Complete unobscured round luminous insert.

S007 · 11 o’clock

Round feature · position check; no unique axis · centre offset -0.5° from clock ray (geometry + segmentation -0.5° to -0.4°) · image-plane only · Unoccluded circular lume marker with clean segmentation.

S007 · 12 o’clock

Triangular insert · centre placement; precise rotation unmeasured · centre offset -0.2° from clock ray (geometry + segmentation -0.2° to -0.1°) · image-plane only · Inverted triangular lume plot fully visible.

S005 · 1 o’clock

Round feature · position check; no unique axis · centre offset +0.0° from clock ray (geometry + segmentation -0.0° to +0.1°) · image-plane only · Unobstructed round luminous marker with complete mask.

S005 · 2 o’clock

Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation +0.1° to +0.2°) · image-plane only · Unobstructed round luminous marker with clear mask segmentation.

S005 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date aperture visible under cyclops magnifier without luminous fill.

S005 · 4 o’clock

Round feature · position check; no unique axis · Round lume marker partially obscured by the GMT hand tip.

S005 · 5 o’clock

Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation +0.1° to +0.2°) · image-plane only · Fully visible round lume marker.

S005 · 6 o’clock

Angle unverified · feature edges uncertain · Rectangular luminous marker partly covered by a dial sticker.

S005 · 7 o’clock

Angle unverified · feature edges uncertain · Position fully occluded by the yellow sticker.

S005 · 8 o’clock

Round feature · position check; no unique axis · centre offset +0.0° from clock ray (geometry + segmentation -0.1° to +0.1°) · image-plane only · Round luminous marker entirely unobstructed.

S005 · 9 o’clock

-0.2° luminous image axis · sensitivity -0.3° to -0.1° (geometry + segmentation; not physical tilt) · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to -0.2°) · image-plane only · Clear elongated baton marker with fully segmented lume.

S005 · 10 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.3° to -0.3°) · image-plane only · Intact round luminous insert free from interference.

S005 · 11 o’clock

Round feature · position check; no unique axis · centre offset -0.4° from clock ray (geometry + segmentation -0.4° to -0.3°) · image-plane only · Round lume marker clearly visible and fully segmented.

S005 · 12 o’clock

Triangular insert · centre placement; precise rotation unmeasured · centre offset -0.4° from clock ray (geometry + segmentation -0.4° to -0.3°) · image-plane only · Triangular luminous marker completely visible with intact mask.

S008 · 1 o’clock

Round feature · position check; no unique axis · centre offset +0.4° from clock ray (geometry + segmentation +0.3° to +0.4°) · image-plane only · Round lume marker clearly visible and fully segmented.

S008 · 2 o’clock

Round feature · position check; no unique axis · centre offset +0.4° from clock ray (geometry + segmentation +0.3° to +0.5°) · image-plane only · Round lume marker fully visible and cleanly masked.

S008 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date window aperture with cyclops magnification, no luminous insert.

S008 · 4 o’clock

Round feature · position check; no unique axis · Round lume marker partially occluded by the GMT hand tip.

S008 · 5 o’clock

Round feature · position check; no unique axis · Lume marker mask inverted or incomplete along the perimeter.

S008 · 6 o’clock

Angle unverified · local axis not confirmed · Baton marker partially covered by a yellow dial sticker.

S008 · 7 o’clock

Angle unverified · feature edges uncertain · Marker location fully obscured by yellow sticker.

S008 · 8 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.5° to -0.3°) · image-plane only · Round lume plot clearly segmented and unobstructed.

S008 · 9 o’clock

+1.9° luminous image axis · sensitivity +1.8° to +1.9° (geometry + segmentation; not physical tilt) · centre offset -0.6° from clock ray (geometry + segmentation -0.7° to -0.6°) · image-plane only · Horizontal rectangular baton lume fully visible and cleanly masked.

S008 · 10 o’clock

Round feature · position check; no unique axis · centre offset -0.4° from clock ray (geometry + segmentation -0.5° to -0.4°) · image-plane only · Circular lume marker unobstructed and fully masked.

S008 · 11 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to -0.2°) · image-plane only · Round lume marker complete with clean boundary segmentation.

S008 · 12 o’clock

Triangular insert · centre placement; precise rotation unmeasured · centre offset +0.0° from clock ray (geometry + segmentation +0.0° to +0.1°) · image-plane only · Triangular lume marker fully captured without occlusion.

Source gallery

20 photos · 0 videos

20 photos · 0 videos in the saved gallery. Repeated views are not independent confirmation.
