Gallery QC

Sub Hulk VSF G07063

GL candidate · automated visual QC

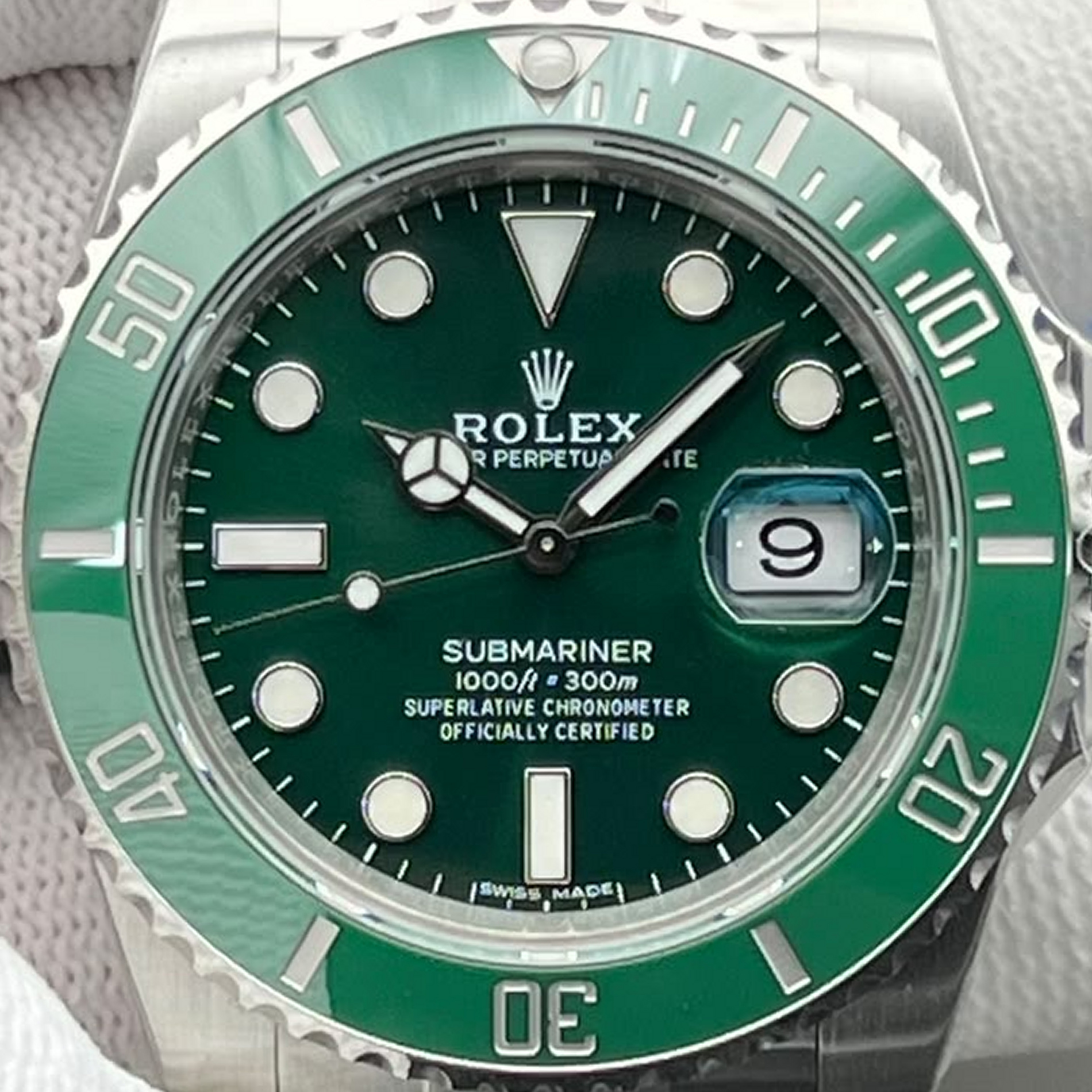

S009 · Camera geometry corrected. Image rotated approximately 0.3° counterclockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using detected printed tick centres. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.

RECOMMENDATION

Visible QC is acceptable overall. Dial placement looks coherent; the 6 and 9 o’clock luminous bars show small image-only axis offsets, not compelling mounting defects.

Dial placement and bar axes

S009 shows coherent marker placement. Complete, unobscured luminous bars support image axes of -0.2° at 6 o’clock (sensitivity -0.2° to 0.4°) and -0.3° at 9 o’clock (sensitivity -1.1° to 0.0°). Separately, 6 o’clock placement is -0.1° (sensitivity -0.3° to -0.1°); 9 and 11 o’clock placements are withheld. The native edges and completed diagnostic review support small visible offsets, not perfectly straight axes or confirmed mounting defects.

S009

12 o’clock triangle orientation

In S009’s native triangle crop and corrected reference, the upper edge is approximately level relative to the local track and the two sloping edges converge without a convincing lean. Border glare produces some apparent thickness asymmetry. The edge evidence supports the supplied no-visible-concern assessment.

S009

Hands, printing and date

Visible hand shapes and luminous filling look intact. The date 9 is legible and reasonably situated within the aperture. A hand covers part of the upper dial lettering. No supported malformed text or visible hand/date defect.

S009

Raised bezel

S009’s native view shows readable bezel numerals and adjacent ticks without a compelling local spacing anomaly. Reflection affects the upper-left sector. No supported bezel defect is established.

S009

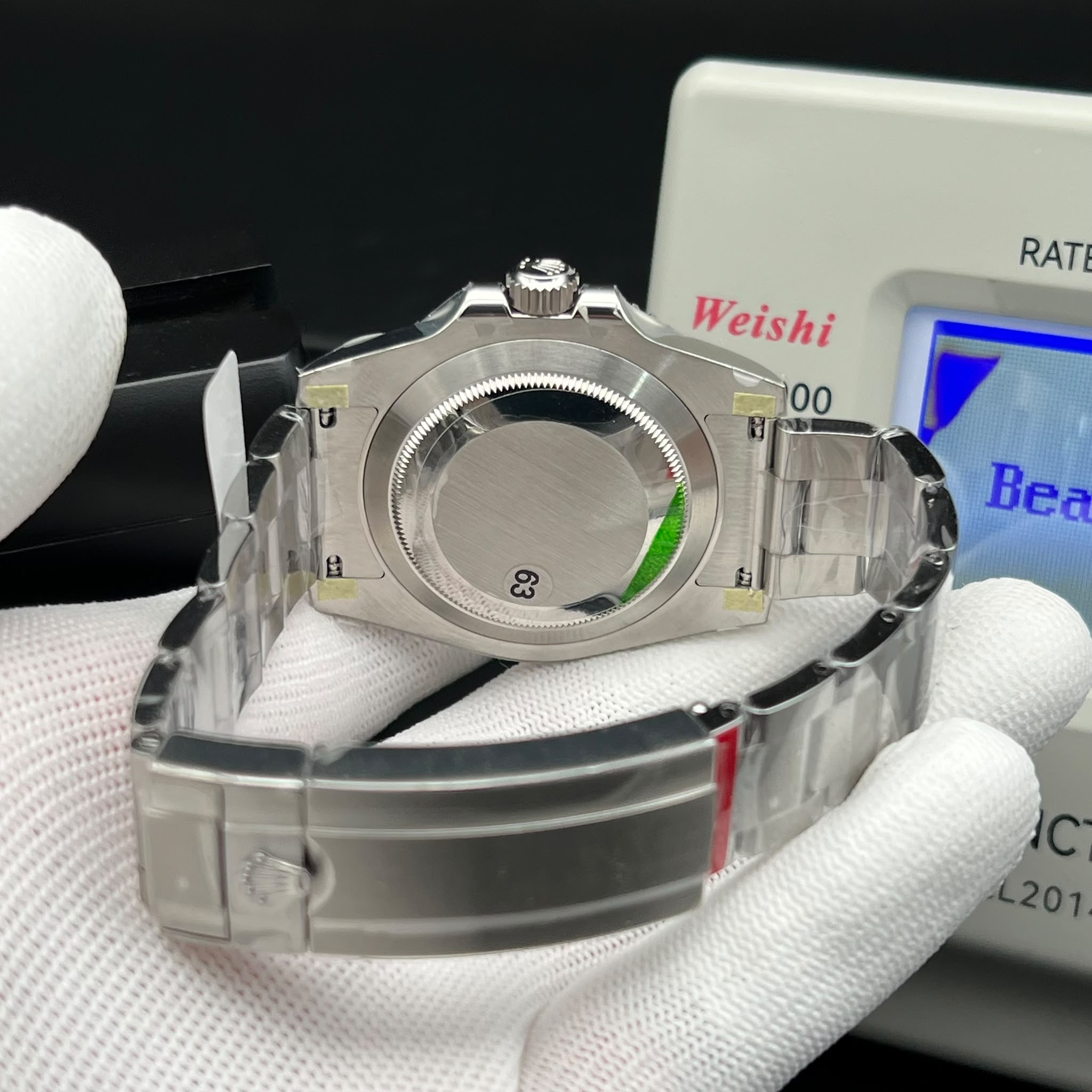

Clasp and exterior finish

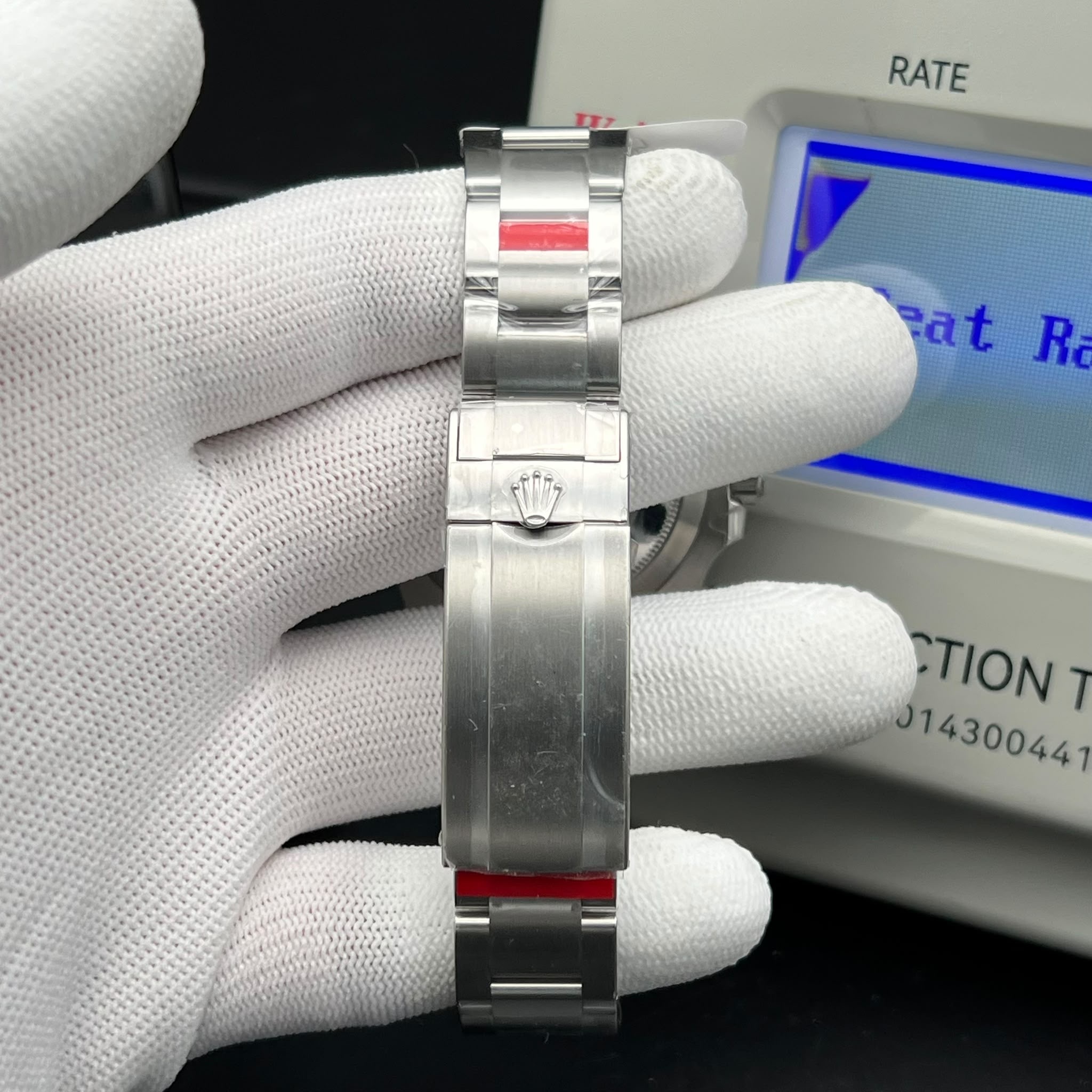

S002 shows fine light marks across the clasp, together with visible protective-film edges and surface reflections. S009 also shows protective coverings on bracelet links. Minor surface marks are visible, but scratches in the underlying metal are not established.

S002 S009

Timegrapher snapshot

Video snapshot at 4.185s: Rate +0 s/day; Amplitude 234 °; Beat error 0 ms; Lift angle 52 ° Displayed amplitude depends on the selected lift angle; the correct setting for the installed movement is not verified. Winding, stabilization, position and recording duration are unknown. One selected video frame transcribed; the multi-frame source survey is not corroborating timing evidence.

S010

Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.

Detail checks

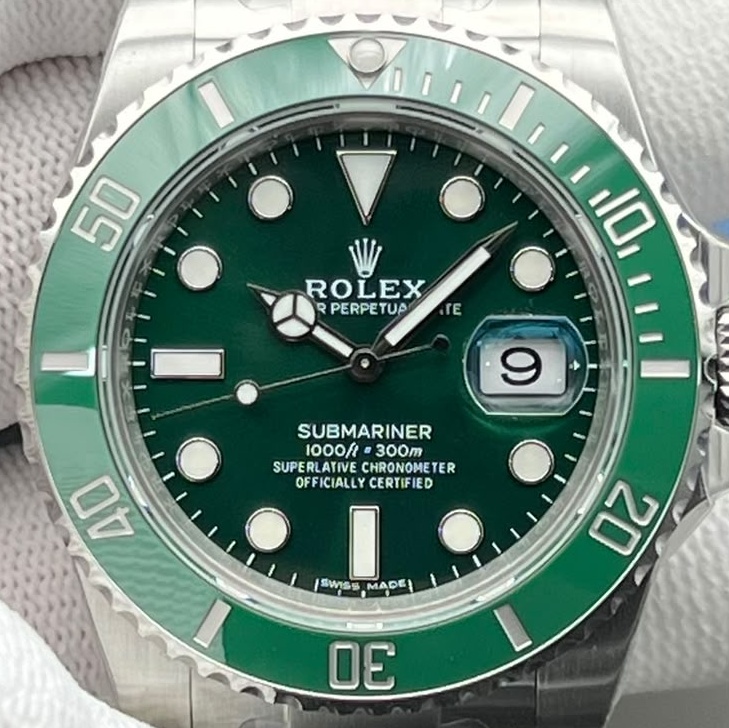

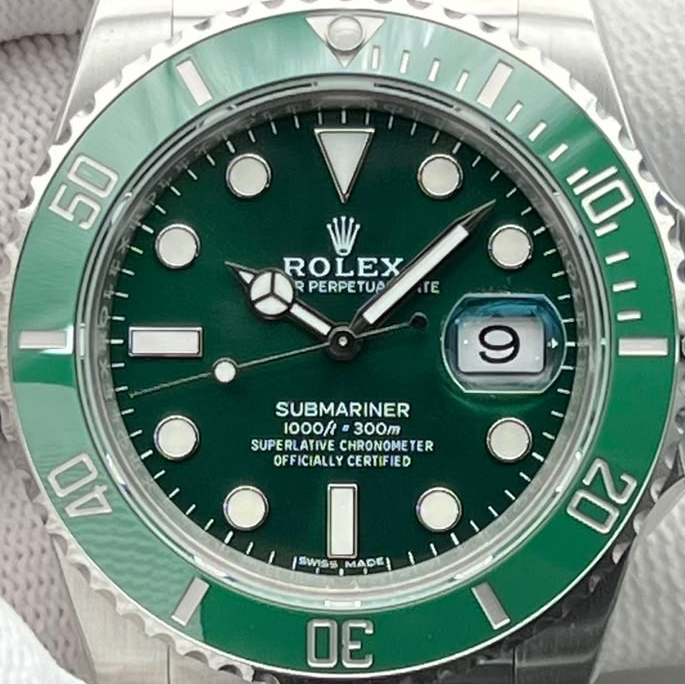

S009 · Native full-bezel context. Raised bezel features assessed visually in this original camera view

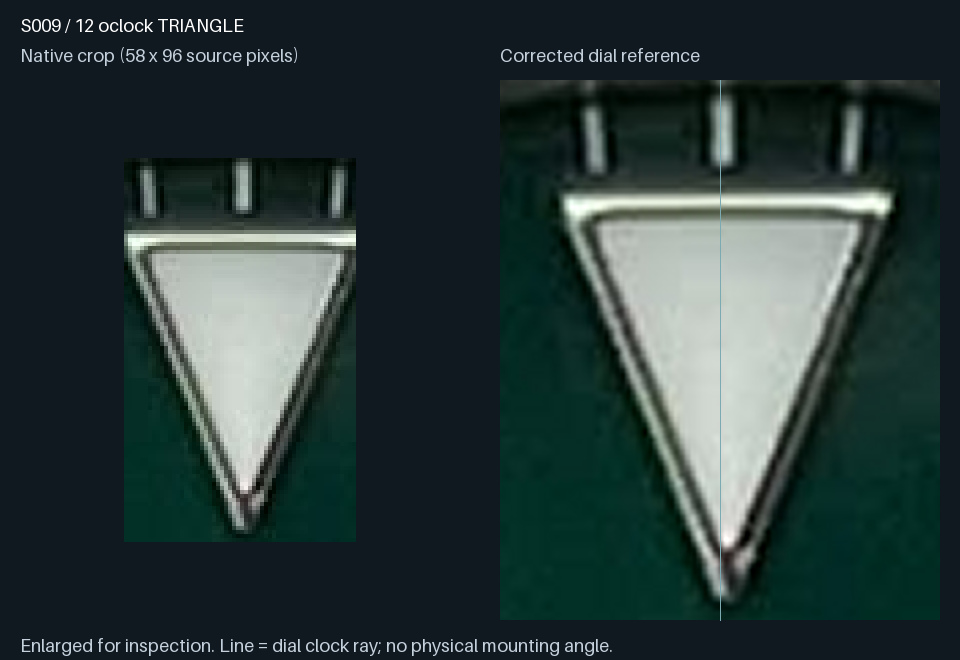

S009 · 12 o’clock triangular insert: native crop and corrected dial reference. Amber outline, when present, is a candidate luminous silhouette

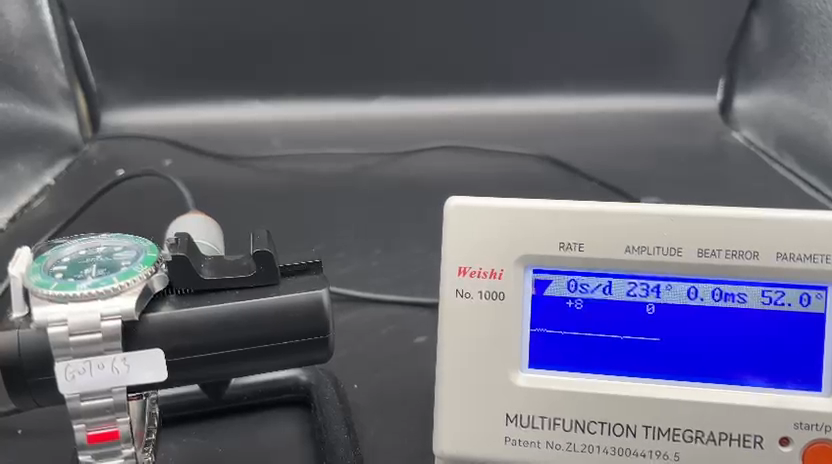

S010 · Full timegrapher source frame at 4.185s; screen-crop coverage is unverified. Readings describe this snapshot only.

Position and angle checks

1 dial views · 12 checks

S009 · 1 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to +0.2°) · image-plane only · Complete circular lume plot without occlusion.

S009 · 2 o’clock

Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation -0.4° to +0.3°) · image-plane only · Circular lume plot clear of minute hand tip.

S009 · 3 o’clock

Date window · no luminous marker or bar-axis measurement · Date window aperture displaying date digit.

S009 · 4 o’clock

Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to +0.2°) · image-plane only · Complete circular lume plot unoccluded.

S009 · 5 o’clock

Round feature · position check; no unique axis · centre offset -0.3° from clock ray (geometry + segmentation -0.4° to -0.1°) · image-plane only · Complete circular lume plot unoccluded.

S009 · 6 o’clock

-0.2° luminous image axis · sensitivity -0.3° to +0.4° (geometry + segmentation; not physical tilt) · centre offset -0.1° from clock ray (geometry + segmentation -0.3° to -0.1°) · image-plane only · Complete rectangular luminous baton at six oclock.

S009 · 7 o’clock

Round feature · position check; no unique axis · centre offset +0.3° from clock ray (geometry + segmentation +0.3° to +0.4°) · image-plane only · Complete circular lume plot unoccluded.

S009 · 8 o’clock

Round feature · position check; no unique axis · centre offset +0.3° from clock ray (geometry + segmentation -0.3° to +0.3°) · image-plane only · Complete circular lume plot unoccluded.

S009 · 9 o’clock

-0.3° luminous image axis · sensitivity -1.1° to +0.0° (geometry + segmentation; not physical tilt) · Complete rectangular luminous baton at nine oclock.

S009 · 10 o’clock

Round feature · position check; no unique axis · centre offset +0.3° from clock ray (geometry + segmentation +0.2° to +0.3°) · image-plane only · Complete circular lume plot unoccluded.

S009 · 11 o’clock

Round feature · position check; no unique axis · Complete circular lume plot unoccluded.

S009 · 12 o’clock

Triangular insert · centre placement; precise rotation unmeasured · centre offset +0.3° from clock ray (geometry + segmentation +0.3° to +0.3°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. In S009’s native triangle crop and corrected reference, the upper edge is approximately level relative to the local track and the two sloping edges converge without a convincing lean.
