RECOMMENDATION
S001 shows coherent marker placement. The verified luminous axes show small offsets: 6 o’clock -0.5° (geometry-plus-segmentation sensitivity -1.1° to -0.3°); 9 o’clock -1.4° (-1.6° to -1.0°). Separately, placement is 0.2° (0.1° to 0.3°) and -0.3° (-0.4° to -0.3°), respectively. These are image-model luminous-component results, not metal-frame mounting angles; the ranges are sensitivity ranges, not confidence intervals.

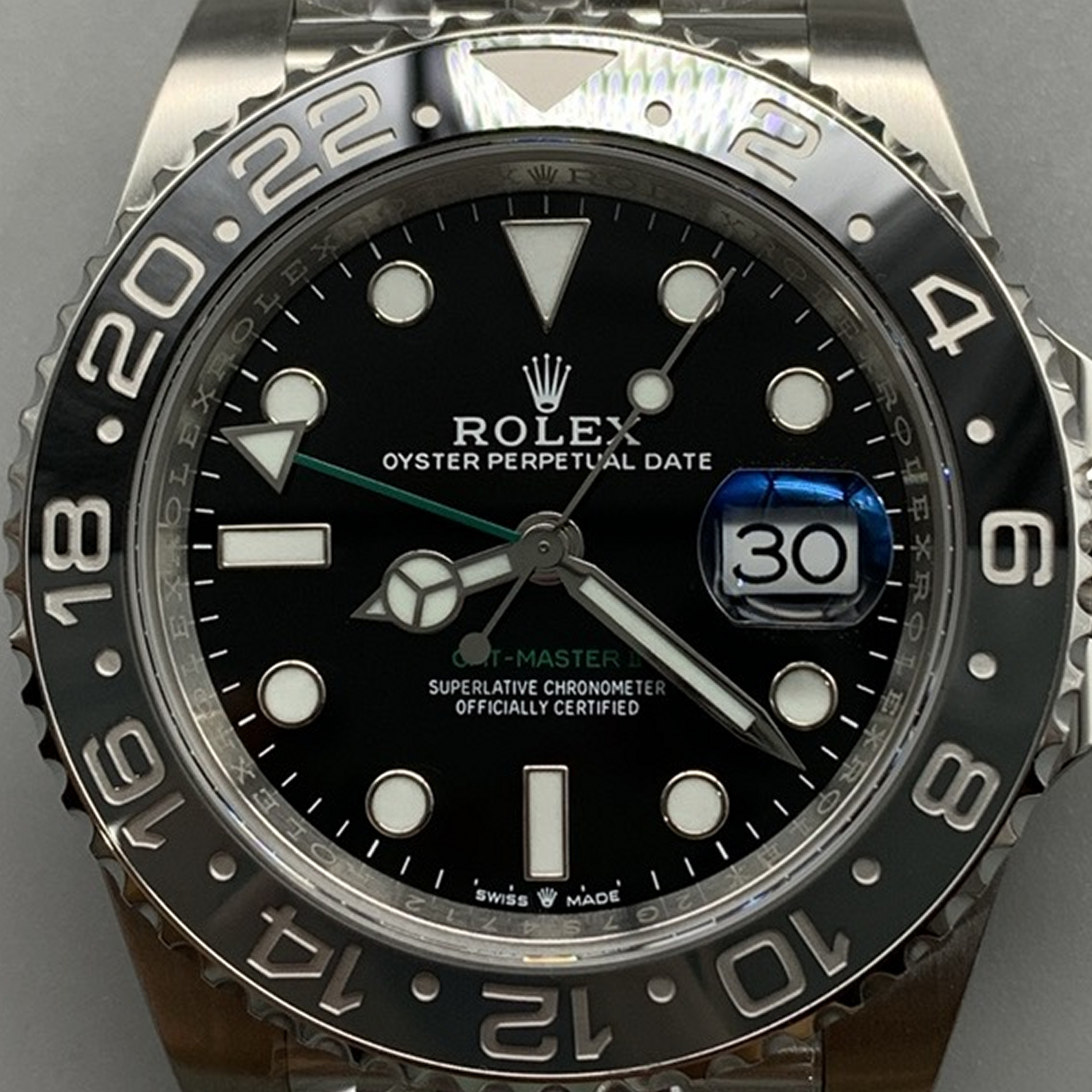

S001In S001’s native triangle crop and corrected reference, the top edge is approximately transverse to the dial ray, with broadly balanced sloping edges and a centrally descending apex. Slight edge brightness and slope differences are visible. Neither native nor corrected edge evidence supports a convincing triangle lean.
S001S001 shows intact-looking hands and a legible date 30 without obvious aperture clipping. Hands cross portions of the printing and markers; the cyclops has blue reflections. Visible appearance is acceptable; covered lettering is unverified rather than malformed.

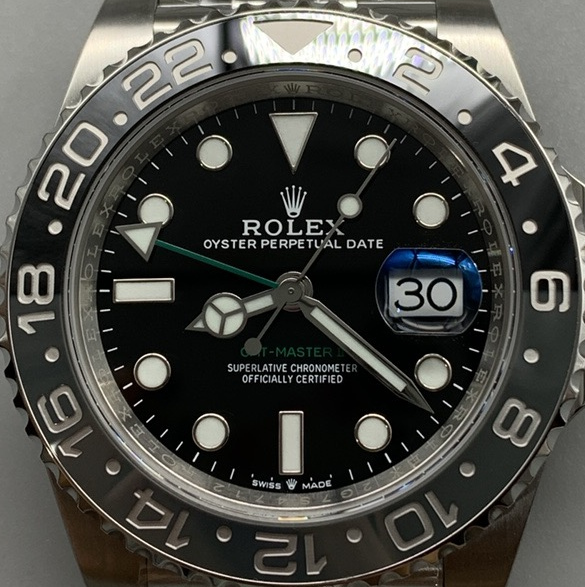

S001S001’s native bezel view shows numerals and adjacent dot divisions without a convincing local spacing anomaly; glare is strongest near the upper sector. No bezel defect is established.

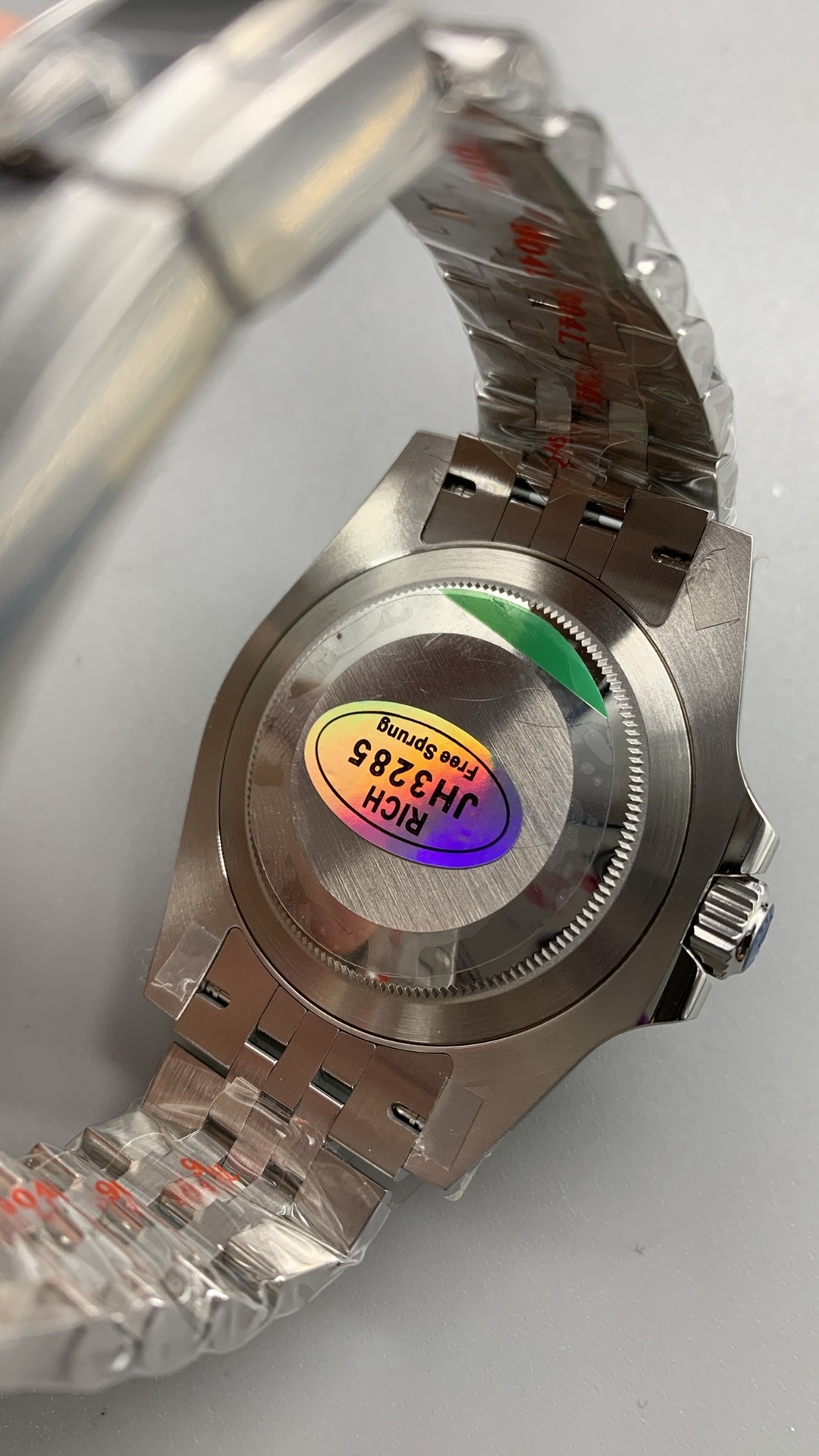

S001S006 visibly shows a caseback sticker, transparent protective material and a green tab, with bracelet wrapping. Exterior reviews also note reflective, partly covered surfaces. Covered finish is unverified; the green material is not evidence of a metal finish defect.

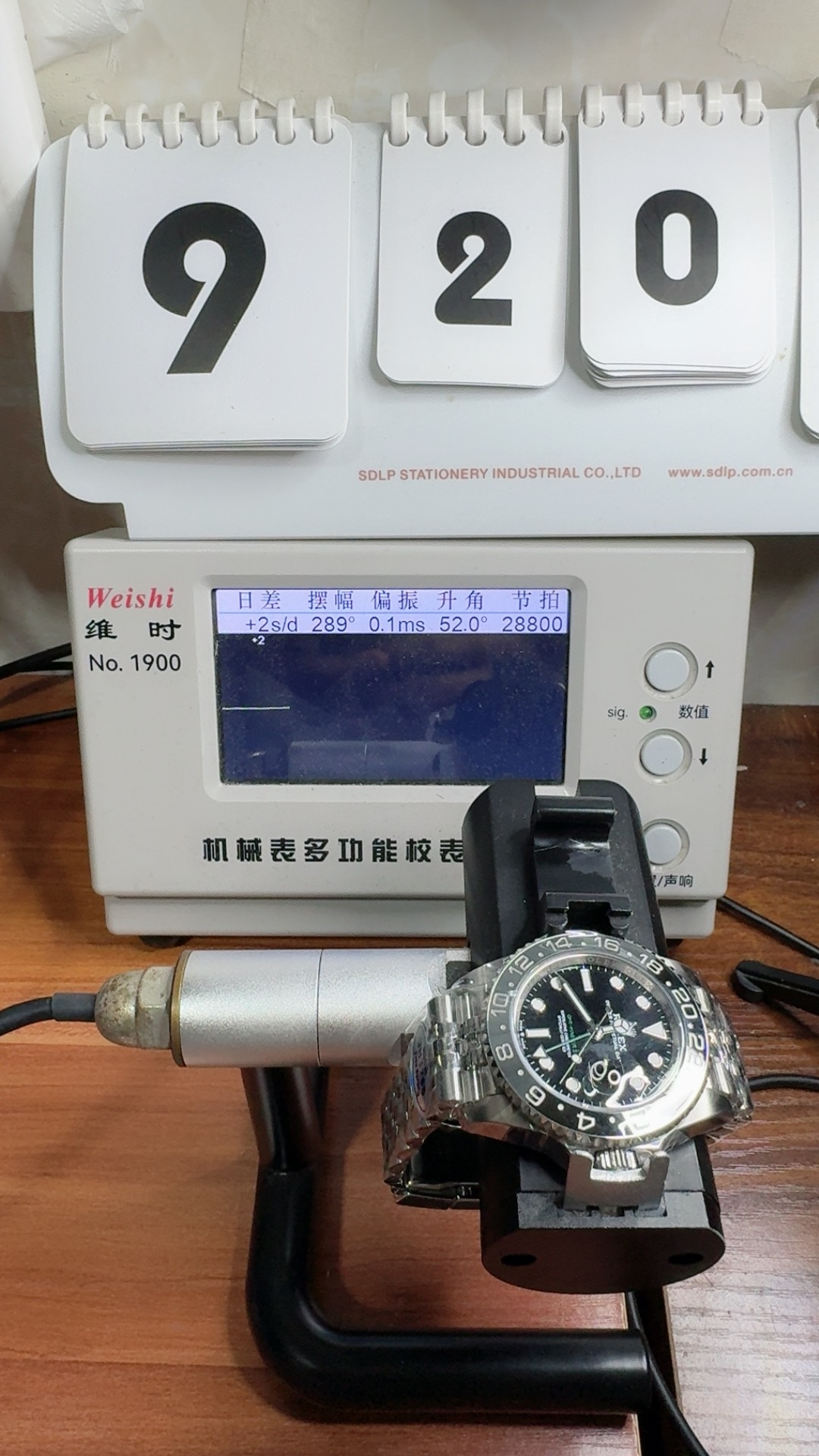

S004 S005 S006 S007 S008Rate +2 s/day; Amplitude 289 °; Beat error 0.1 ms; Lift angle 52 °; Beat rate 28800 bph Displayed amplitude depends on the selected lift angle; the correct setting for the installed movement is not verified. Winding, stabilization, position and recording duration are unknown. Two transcriptions of one source are not independent timing measurements.
S011Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.
Round feature · position check; no unique axis · Round lume plot partially occluded by the seconds hand.
Round feature · position check; no unique axis · centre offset +0.2° from clock ray (geometry + segmentation -0.1° to +0.3°) · image-plane only · Round lume plot fully visible and unobstructed.
Date window · no luminous marker or bar-axis measurement · Date window aperture showing the numeral zero segmented.
Round feature · position check; no unique axis · centre offset +0.6° from clock ray (geometry + segmentation +0.5° to +1.0°) · image-plane only · Round lume plot fully visible with minute hand nearby but clear.
Round feature · position check; no unique axis · centre offset +0.4° from clock ray (geometry + segmentation +0.3° to +0.5°) · image-plane only · Round lume plot fully visible and unobstructed.
-0.5° luminous image axis · sensitivity -1.1° to -0.3° (geometry + segmentation; not physical tilt) · centre offset +0.2° from clock ray (geometry + segmentation +0.1° to +0.3°) · image-plane only · Elongated luminous baton fully visible and unobstructed.
Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to -0.2°) · image-plane only · Round lume plot fully visible and unobstructed.
Round feature · position check; no unique axis · centre offset -0.2° from clock ray (geometry + segmentation -0.3° to -0.2°) · image-plane only · Round lume plot fully visible and unobstructed.
-1.4° luminous image axis · sensitivity -1.6° to -1.0° (geometry + segmentation; not physical tilt) · centre offset -0.3° from clock ray (geometry + segmentation -0.4° to -0.3°) · image-plane only · Elongated luminous baton fully visible and unobstructed.
Round feature · position check; no unique axis · Round lume plot partially occluded by the GMT hand arrow.
Round feature · position check; no unique axis · centre offset +0.1° from clock ray (geometry + segmentation -0.0° to +0.3°) · image-plane only · Round lume plot fully visible and unobstructed.
Triangular insert · centre placement; precise rotation unmeasured · centre offset -0.3° from clock ray (geometry + segmentation -0.5° to -0.1°) · image-plane only · Luminous coverage verified; this is not a straightness pass. · Final triangle finding: 12 o’clock triangle orientation. In S001’s native triangle crop and corrected reference, the top edge is approximately transverse to the dial ray, with broadly balanced sloping edges and a centrally descending apex.
11 photos · 0 videos in the saved gallery. Repeated views are not independent confirmation.
