GL candidate · automated visual QC

S007 · Camera geometry corrected. Image rotated approximately 0.9° clockwise at the dial centre; perspective and unequal image scaling normalized to a circular dial reference using isolated printed minute strokes. Recentered and resampled to 1900 × 1900 pixels. No correction for crystal refraction or raised bezel/hand geometry. Extended rays are visual dial references only; they do not correct or measure the raised bezel.

RECOMMENDATION

Visible dial, hands and bezel QC is acceptable. Validated luminous-insert axes show small image-only offsets, not established mounting defects; withheld marker measurements remain unverified.

Dial alignment and marker axes

The visible track and applied-marker layout appear coherent. S007's verified 5 o'clock luminous axis has a small offset of 0.4° (geometry-plus-segmentation sensitivity 0.2° to 1.0°); S001 reports 0.5° (0.4° to 0.7°). S001's 4 o'clock insert shows 1.5° (0.9° to 2.4°). These are luminous-component axes, not metal-frame mounting angles.

S007 S001

Marker placement

Validated track registration supports a coherent dial layout. Verified luminous-component placement is distinct from axis rotation; several other placements were withheld because segmentation selected incomplete or incorrect features. No consequential placement defect is established.

S007 S001

Hands, printing and date

Visible hands appear intact. The central hand overlaps dial lettering and the coronet; subdial hands cover portions of numerals. No date window is visible. Covered characters do not establish malformed printing.

S007

Raised tachymeter bezel

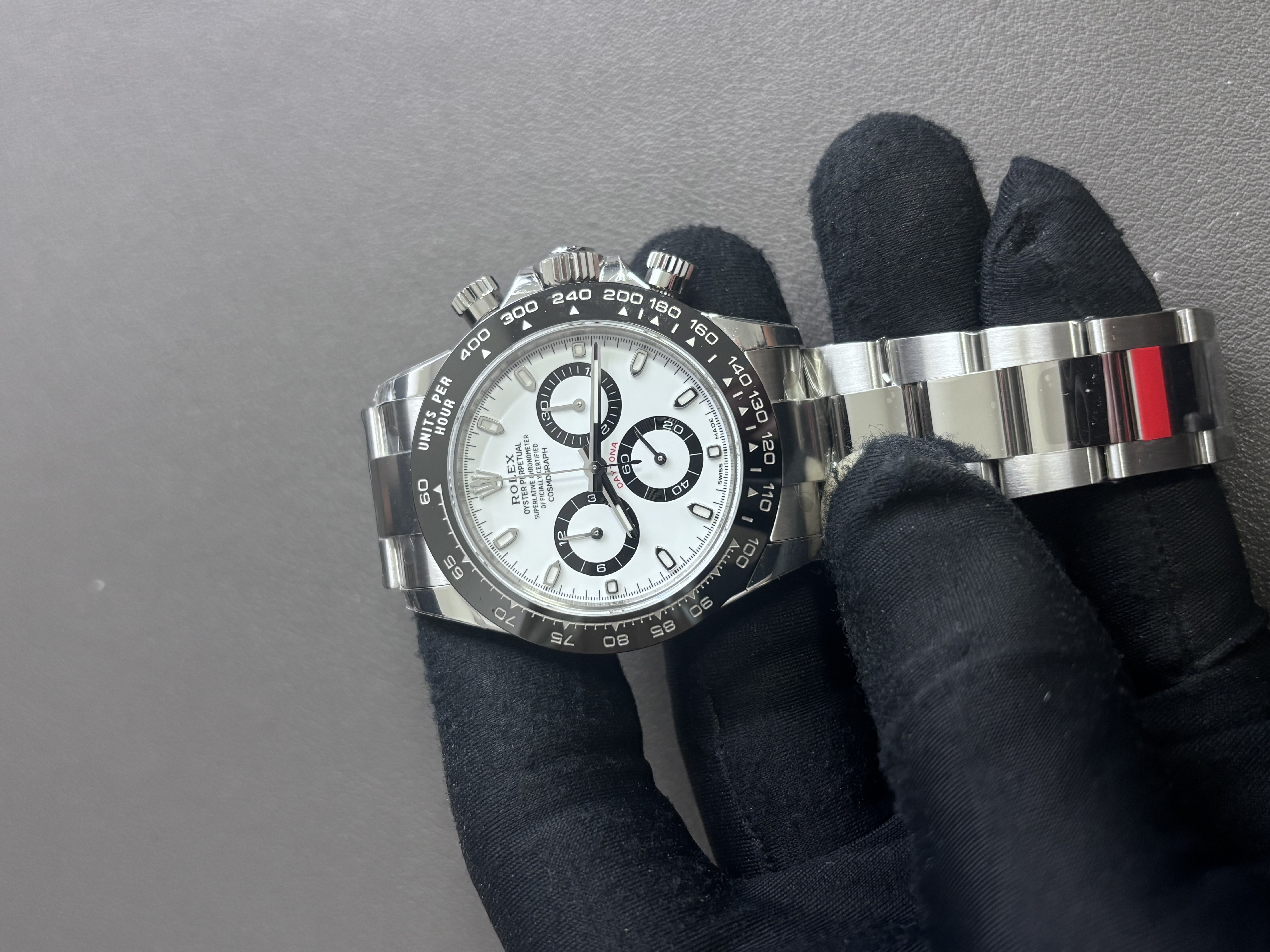

The native S007 view shows readable tachymeter markings without a compelling local spacing defect. Perspective and reflections remain present. No bezel defect is established.

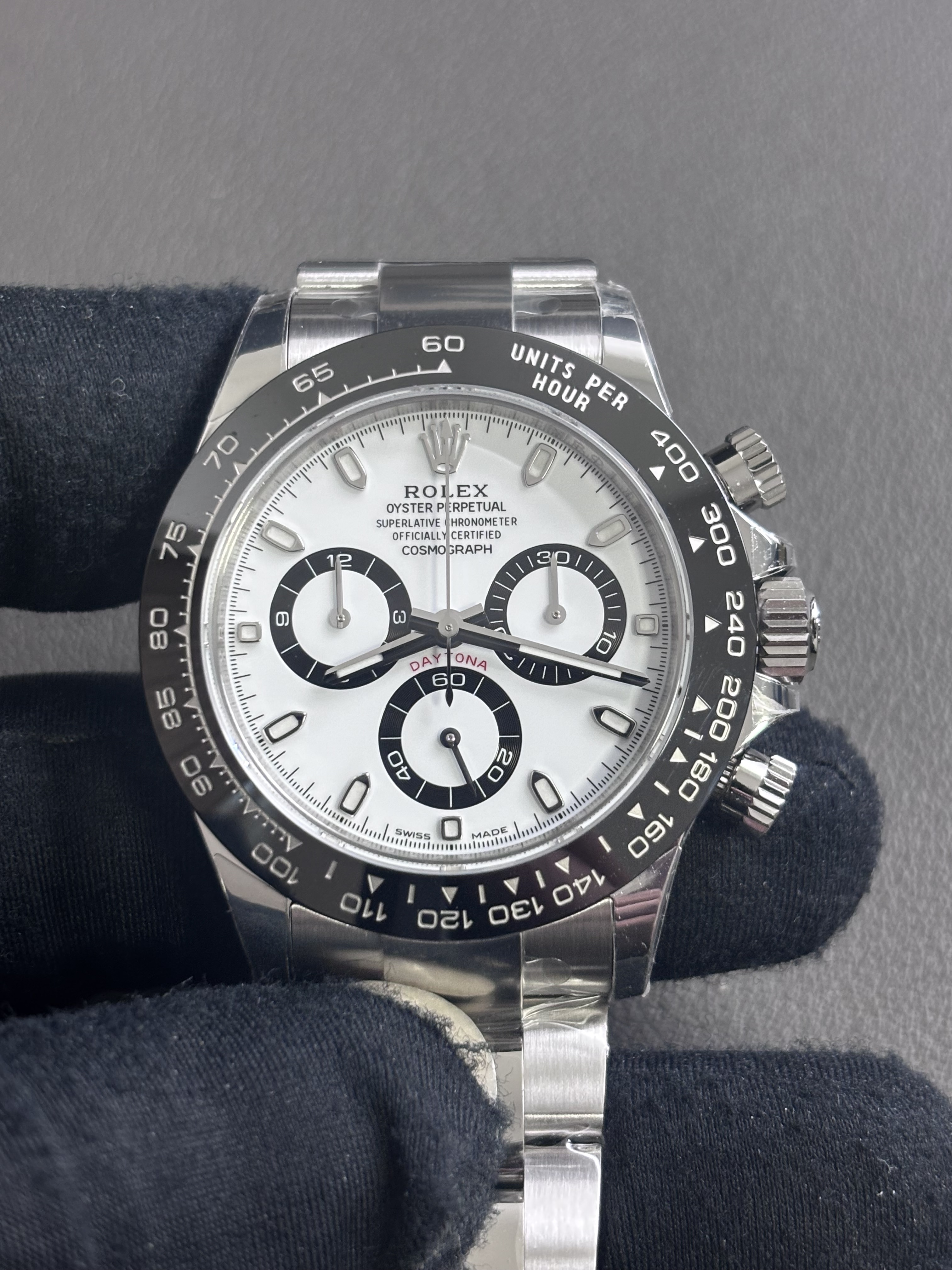

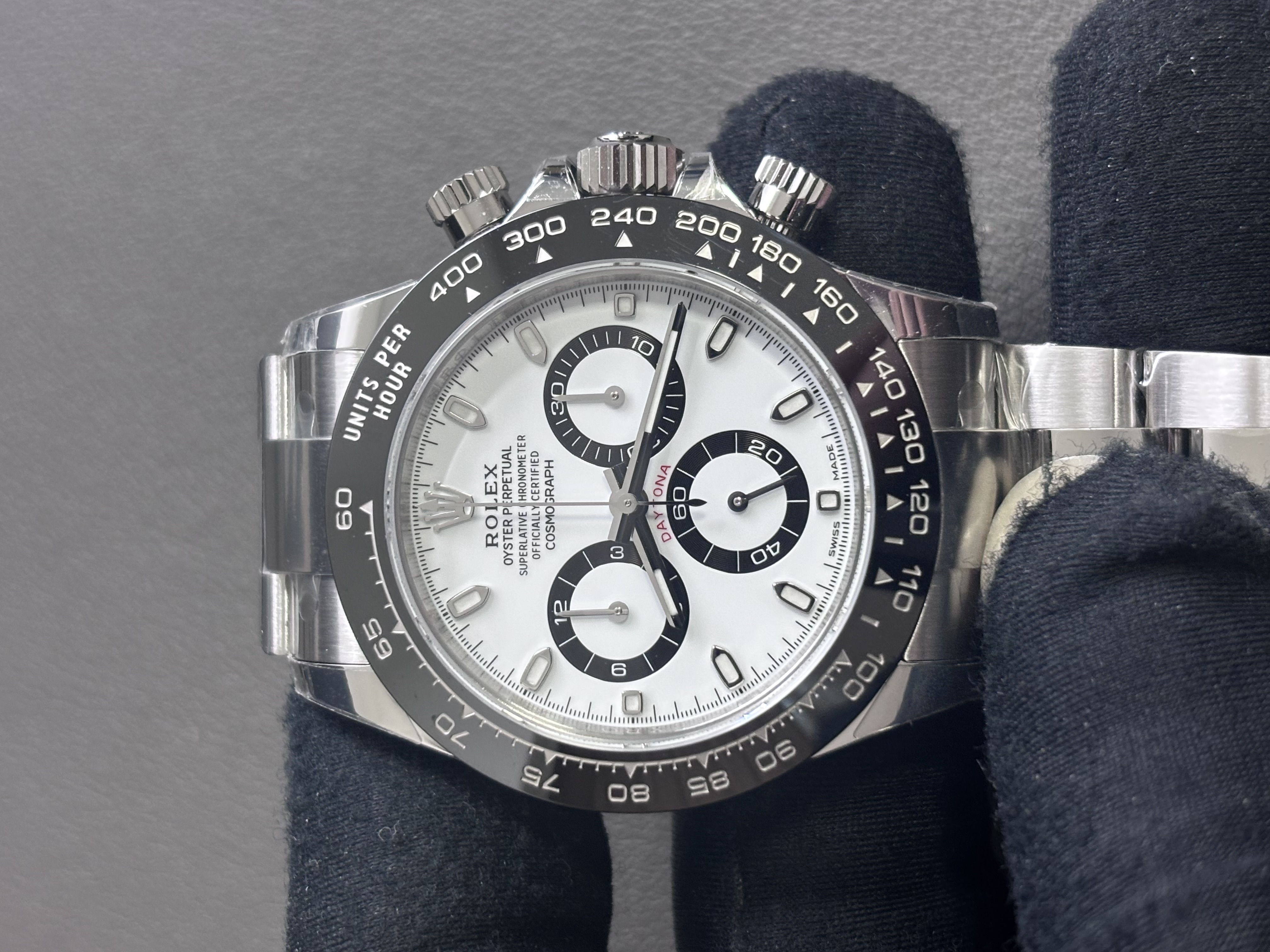

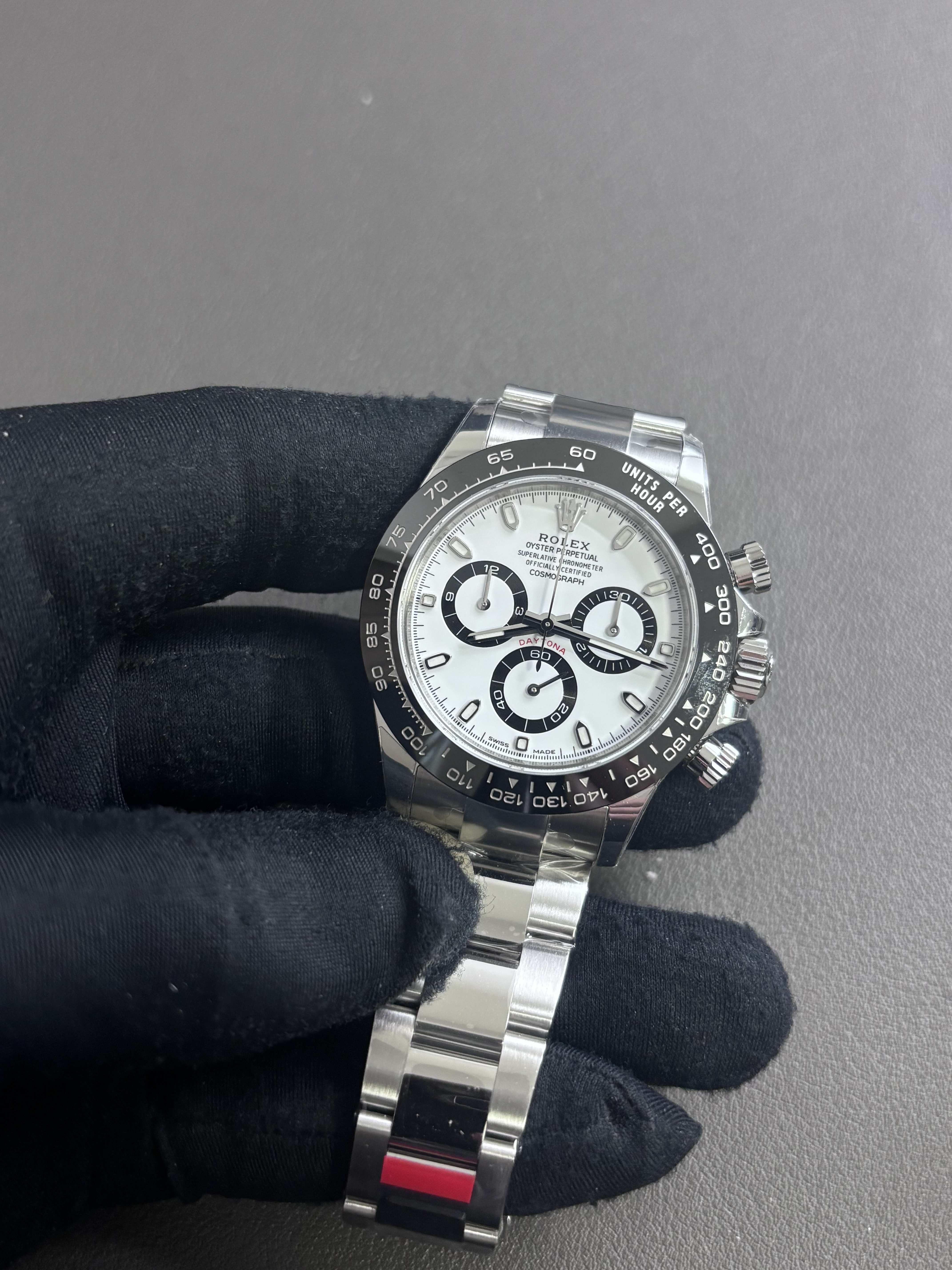

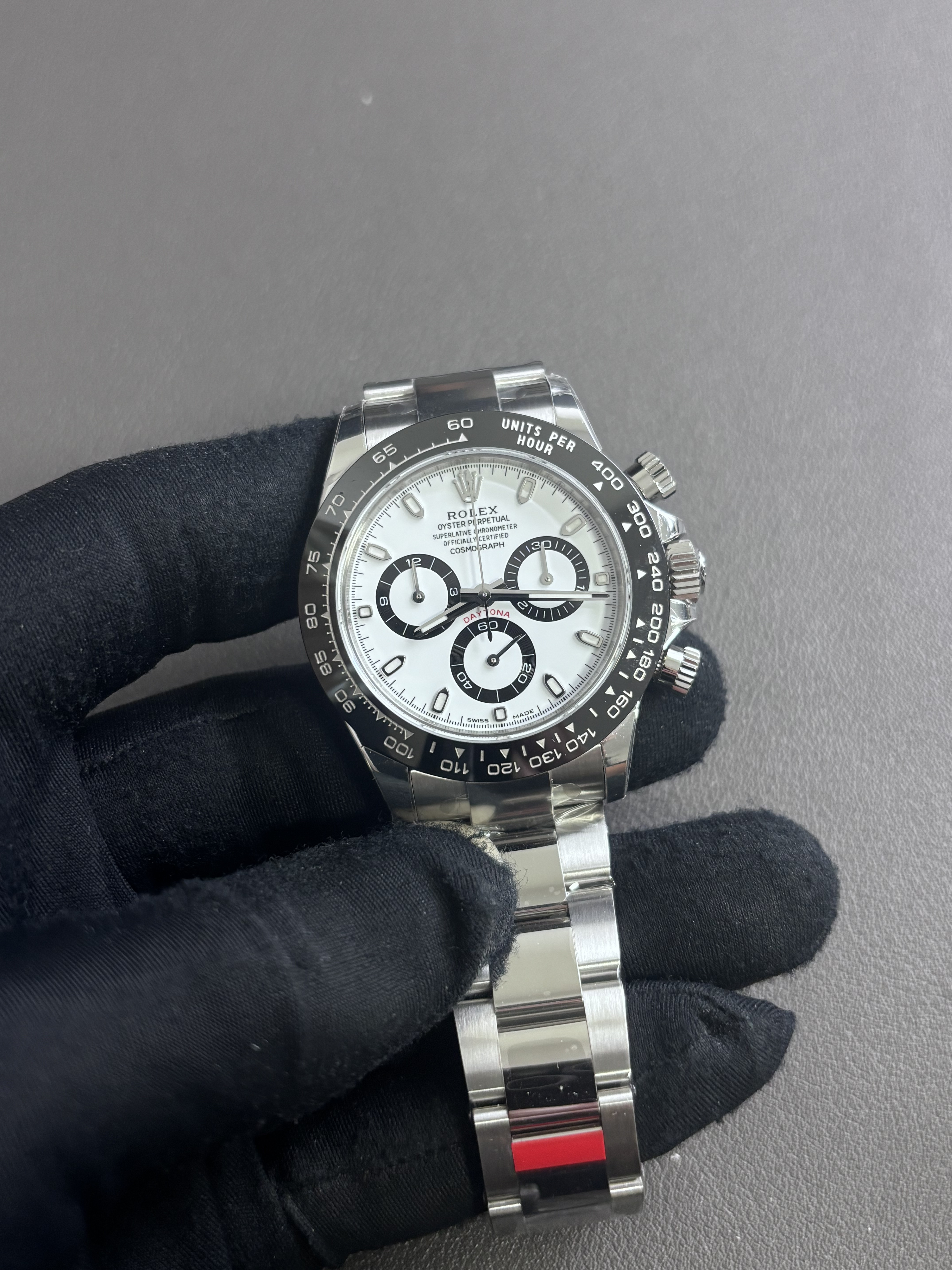

S007 S012 S013

Exterior finish and clasp lines

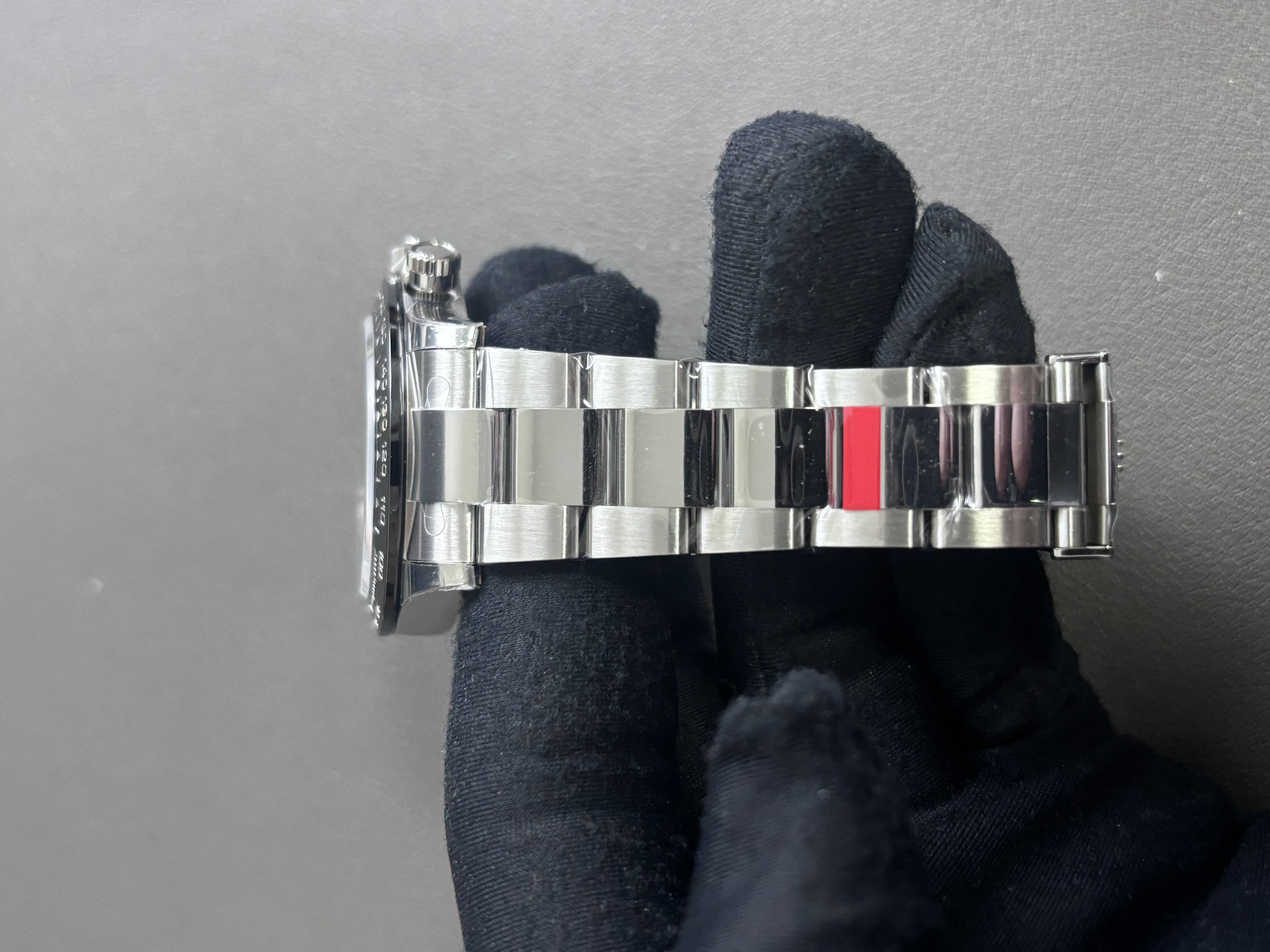

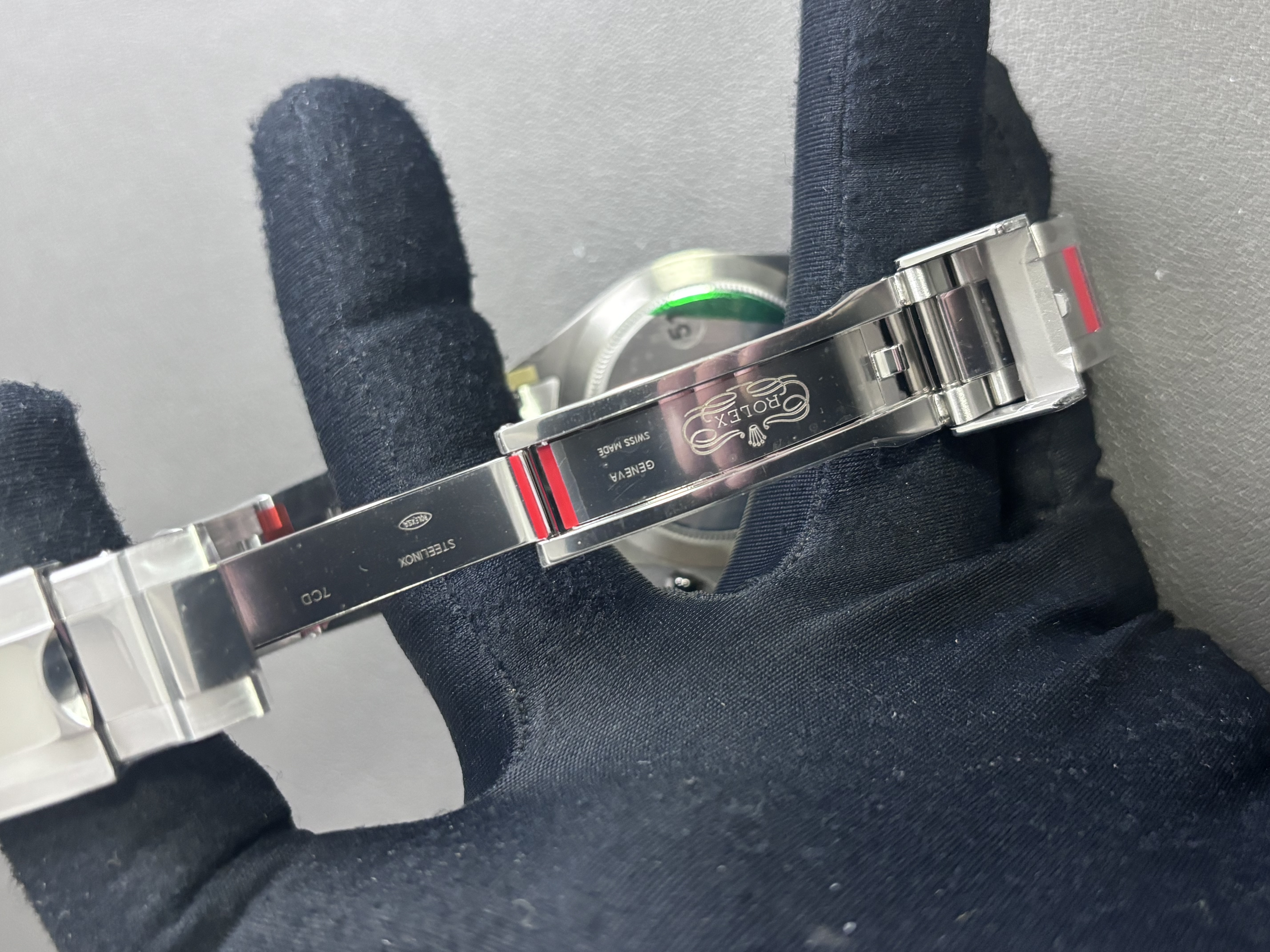

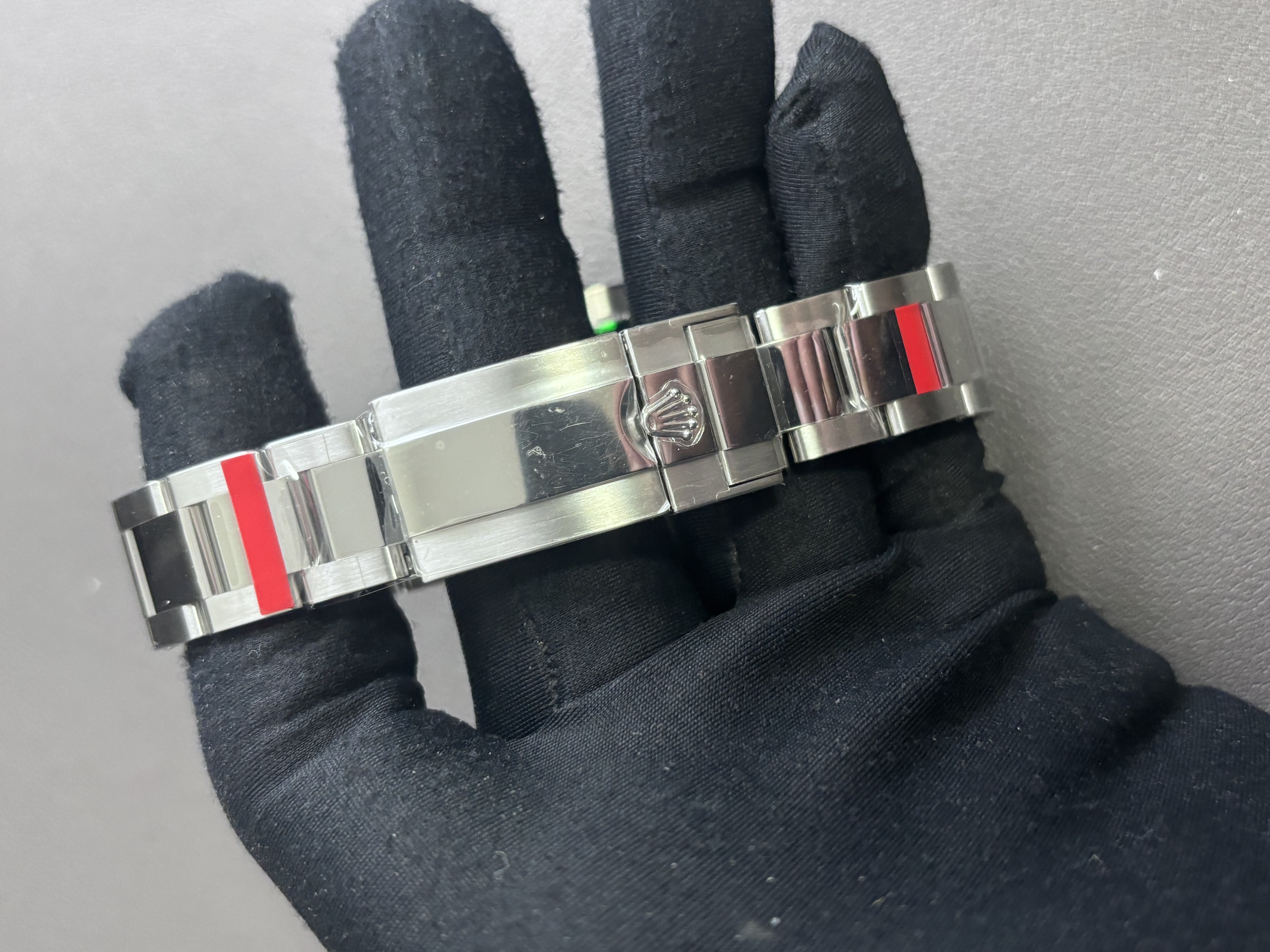

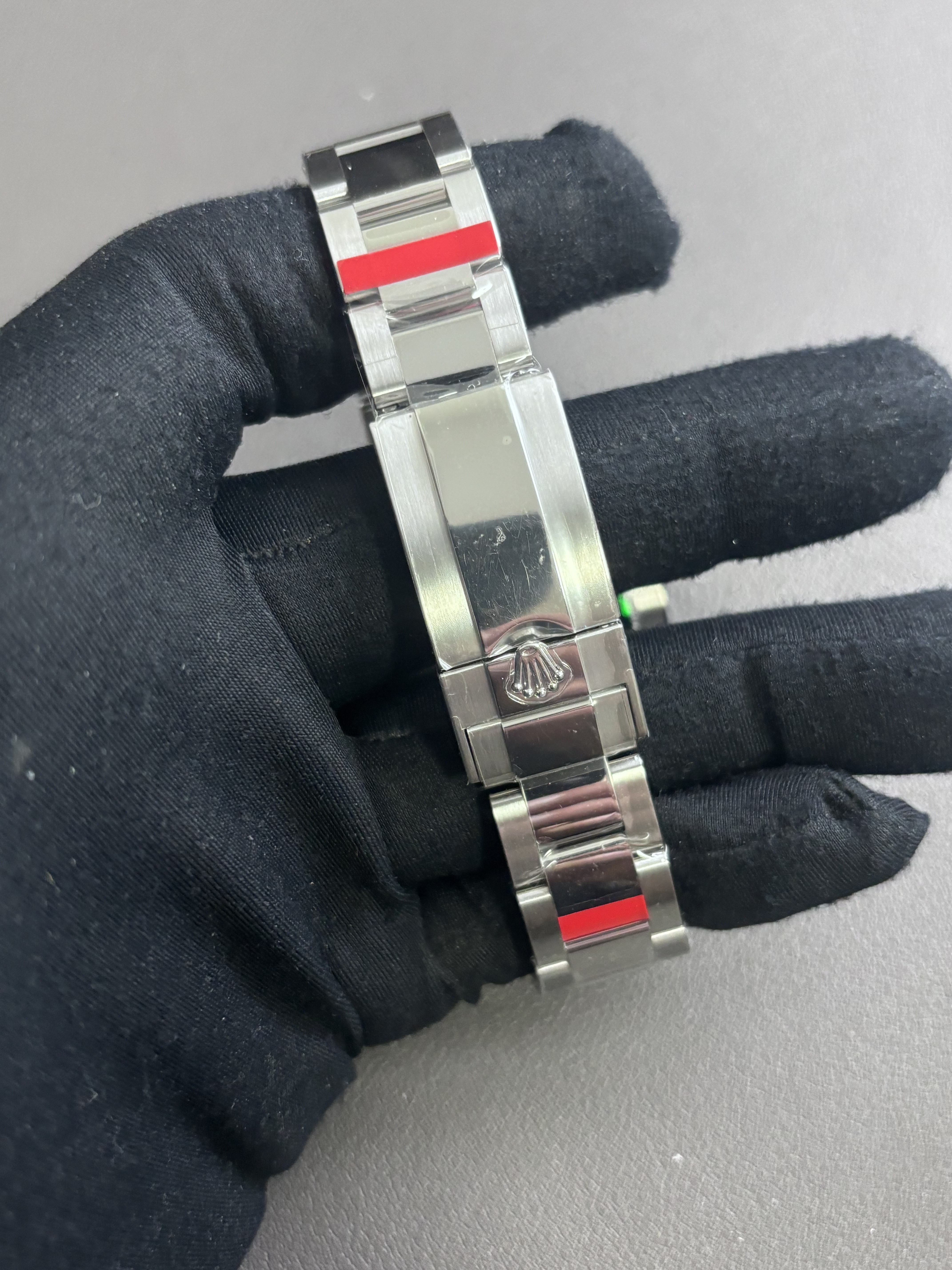

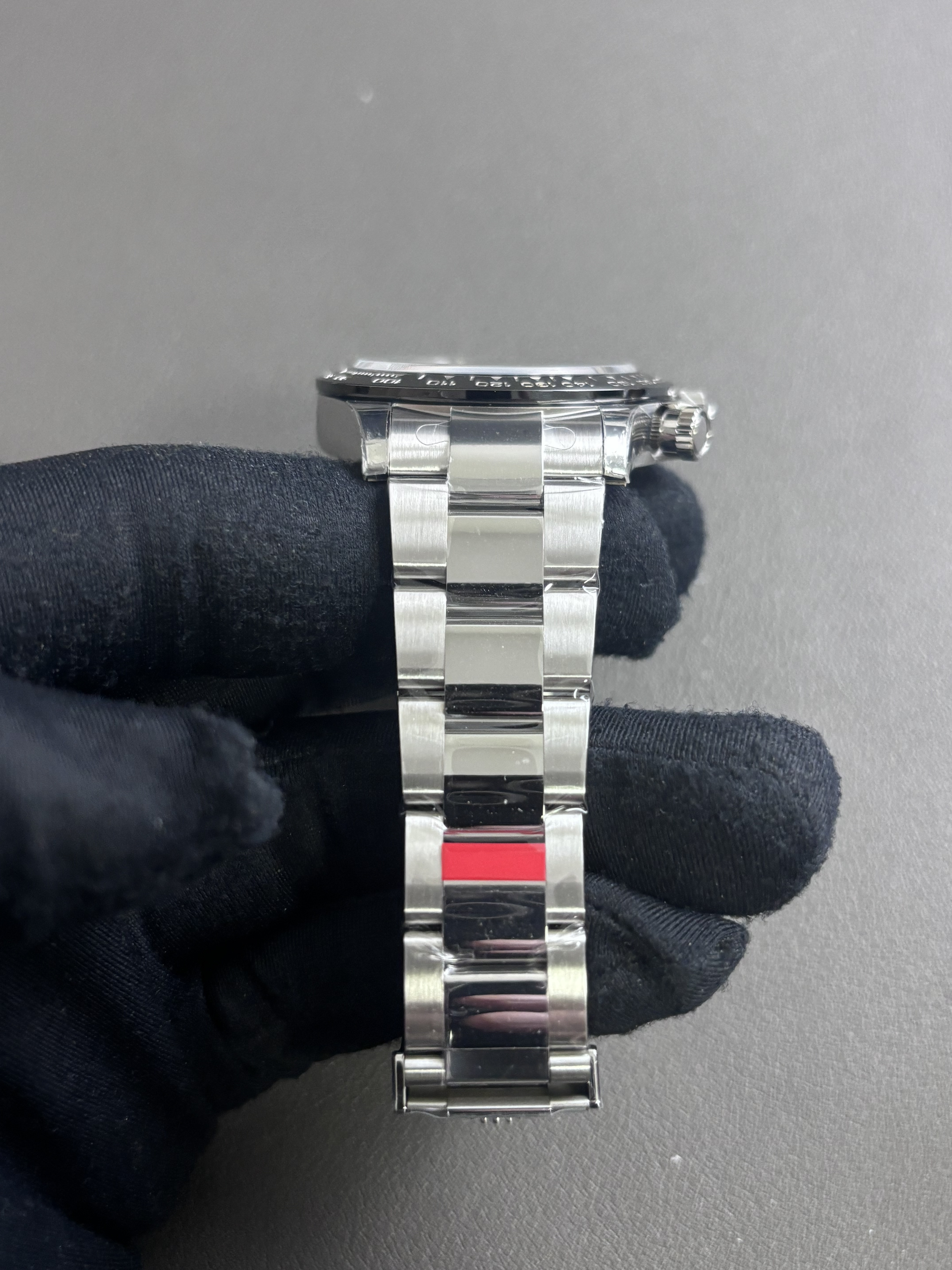

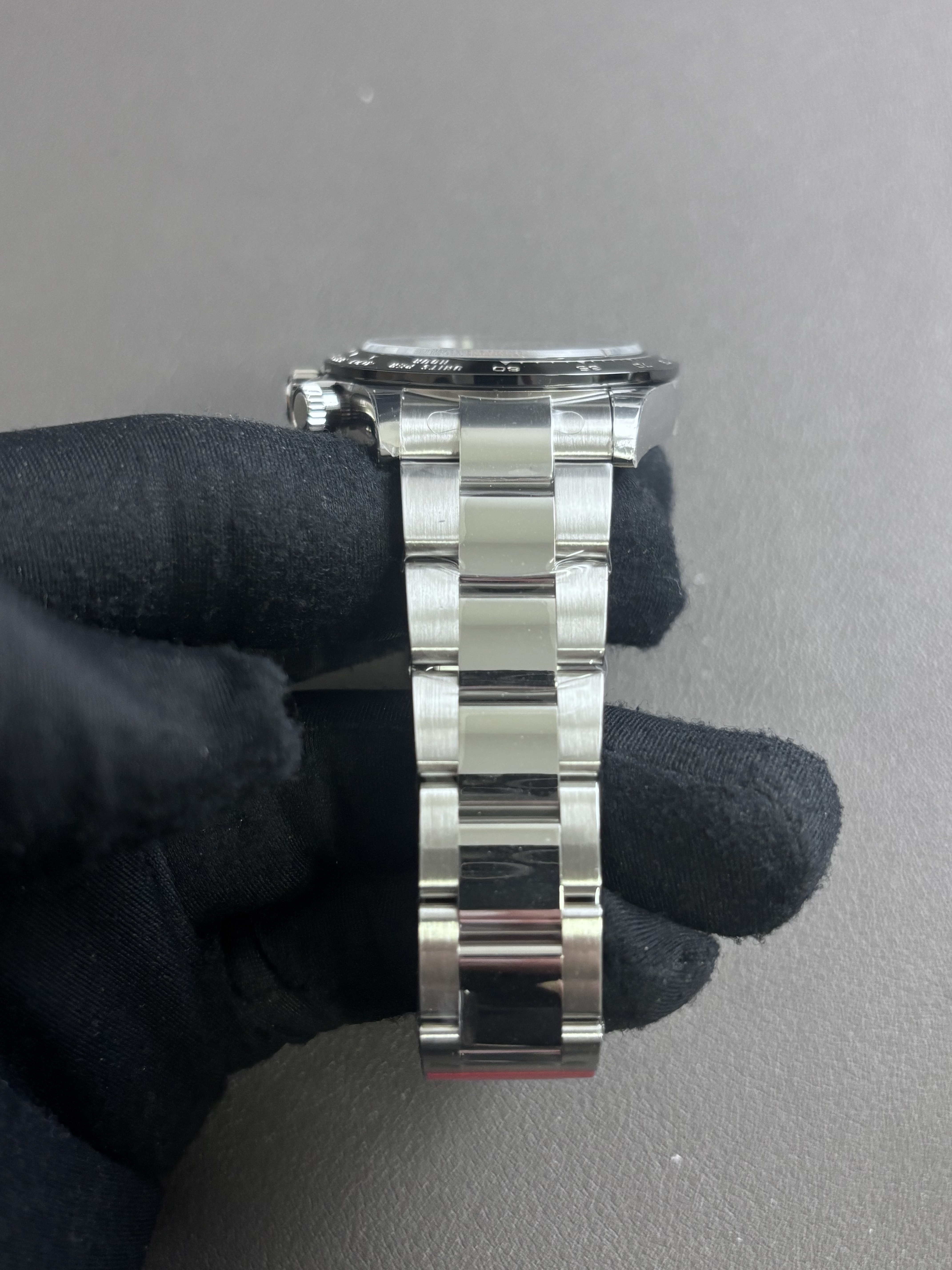

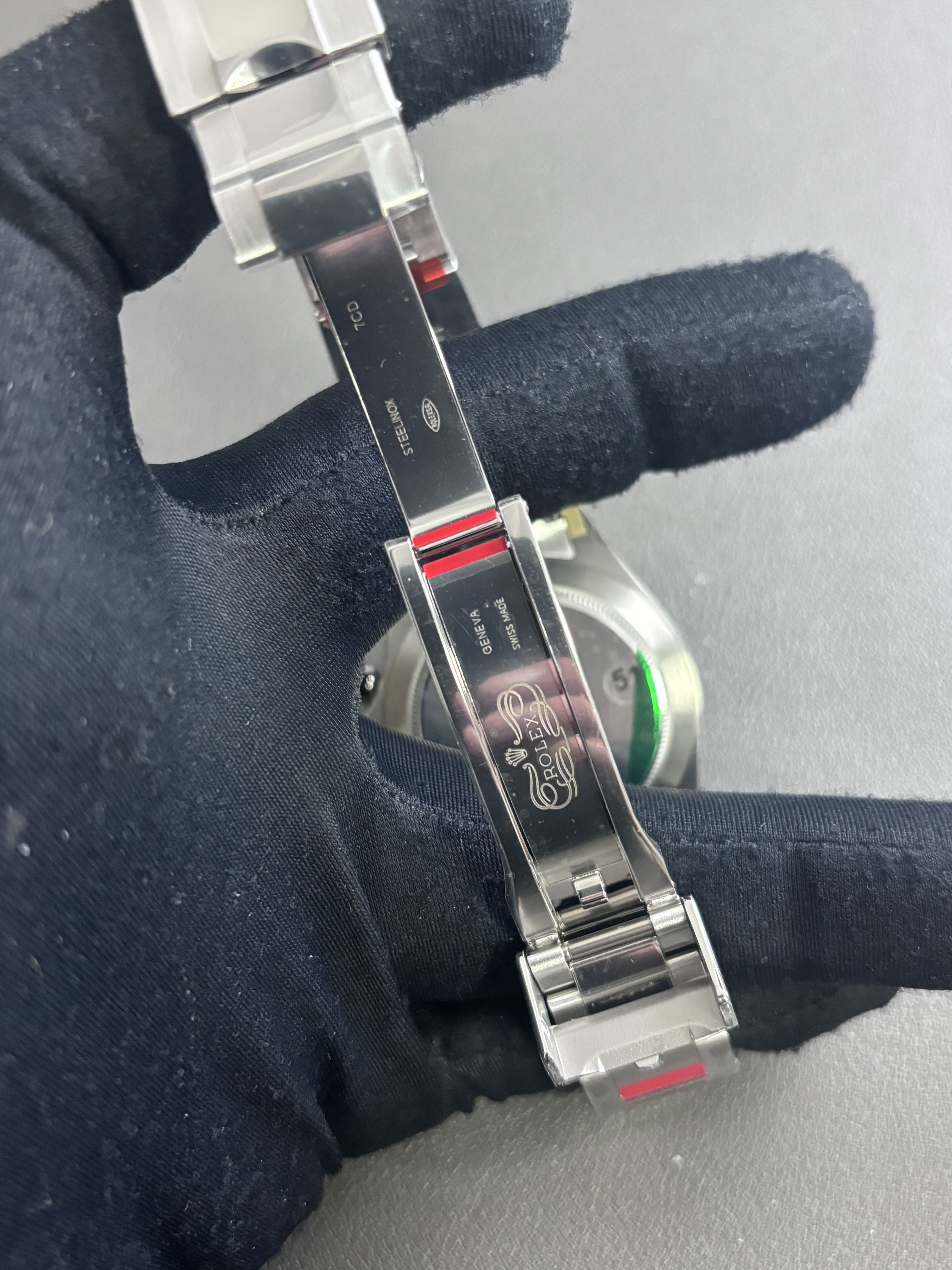

Fine lines are visible on the polished clasp in S010, alongside apparent protective covering and strong reflections. Other exterior reviews describe similar inspection limitations rather than corroborating persistent metal damage. The lines' surface location is unverified; a single film-covered reflective view is insufficient to call scratches in the metal or require HOLD.

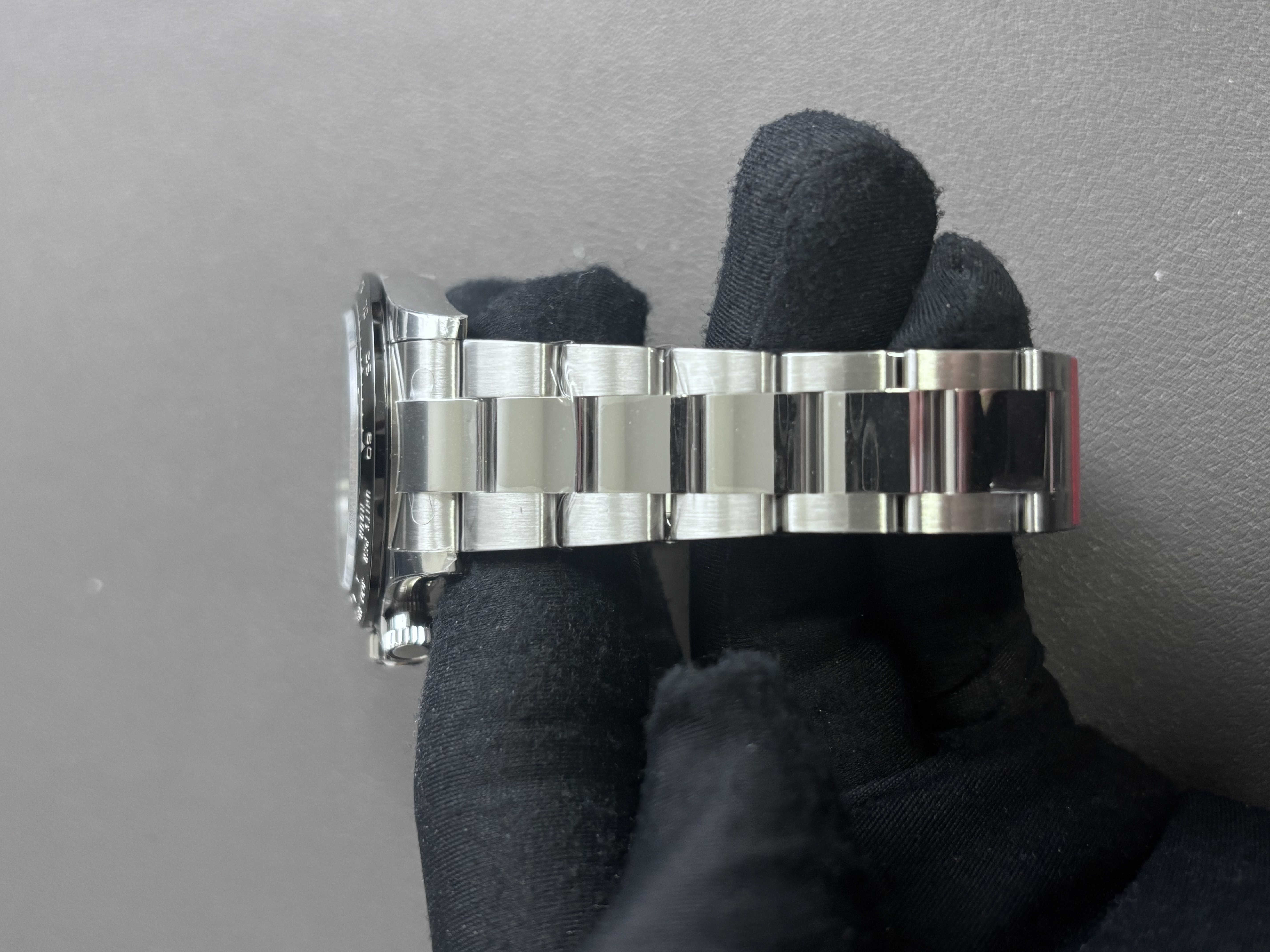

S010 S005 S008 S014

Timing and function

No timing readings or operating video are supplied. Rate, amplitude, beat error and movement health are unverified; photographs cannot establish operational performance.

S001 S007

Red ring: printed dial-track reference. Red dashed rays continue the dial positions across the bezel for visual comparison only; they do not correct, measure or set a tolerance for the raised bezel or cyclops. Cyan crosshairs mark the dial’s cardinal axes. Green lines show released luminous-insert axes, and amber outlines show candidate reflective edges. Positive angles are clockwise; negative angles counterclockwise. Sensitivity ranges are not confidence intervals. Native close-ups preserve the source view.

Detail checks

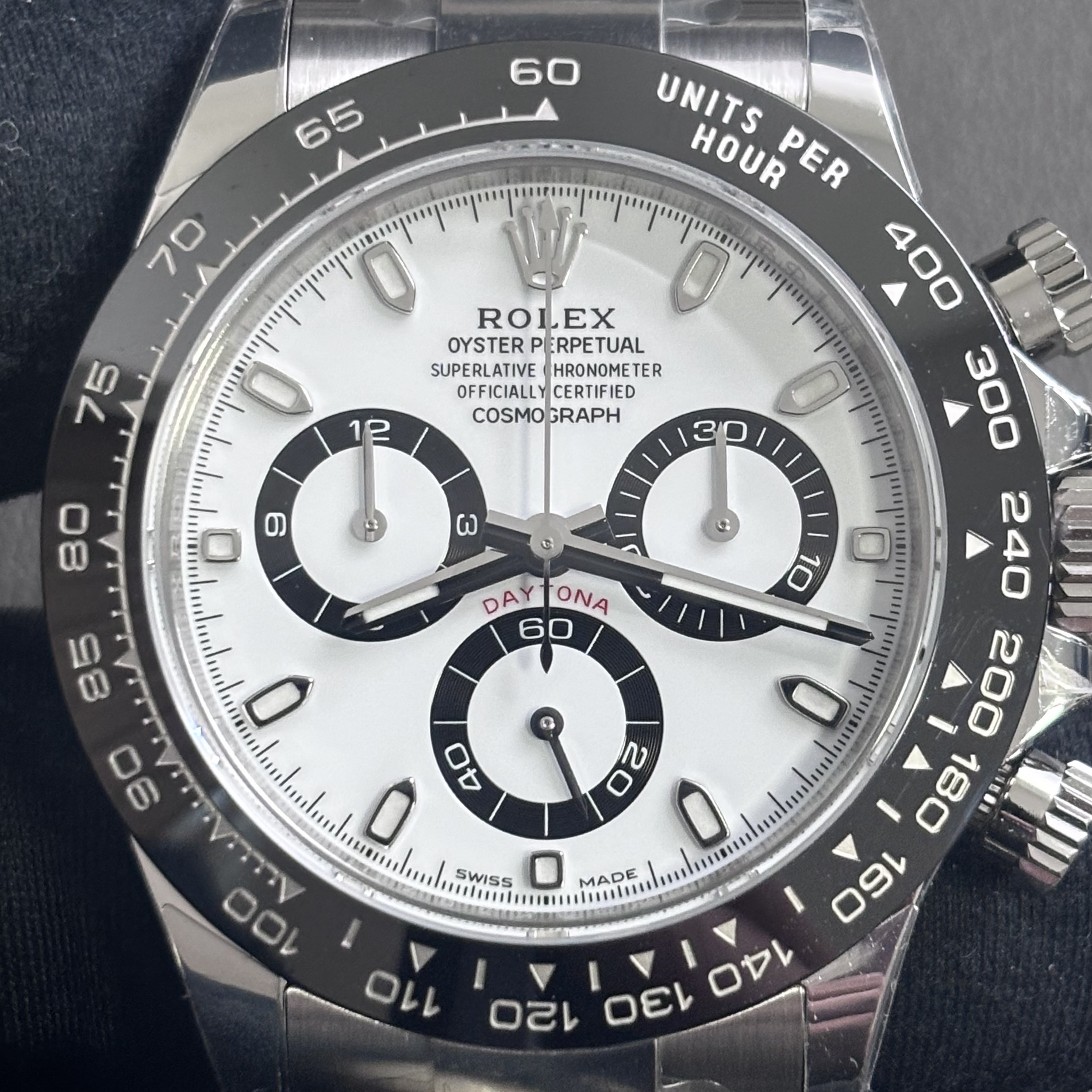

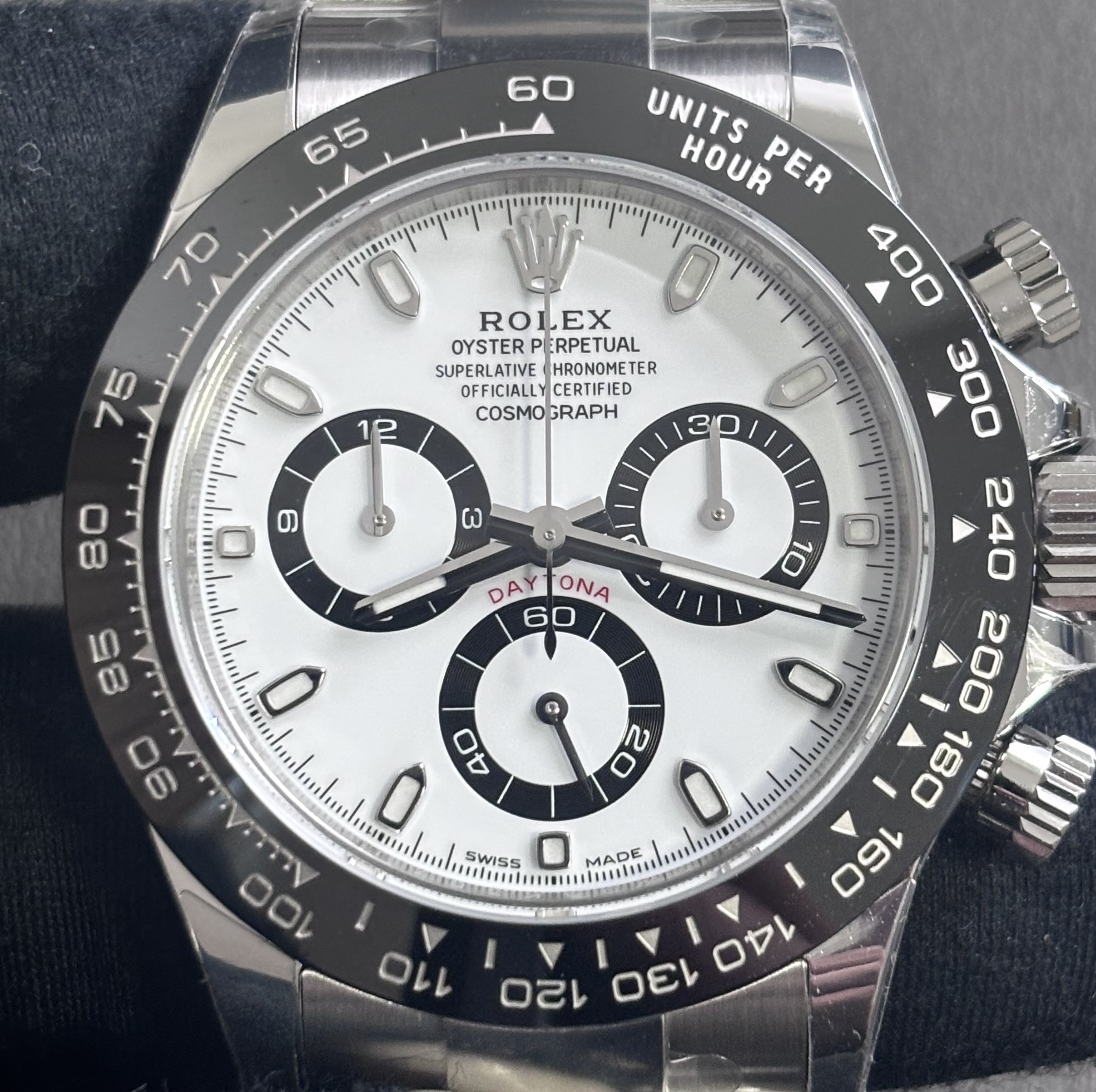

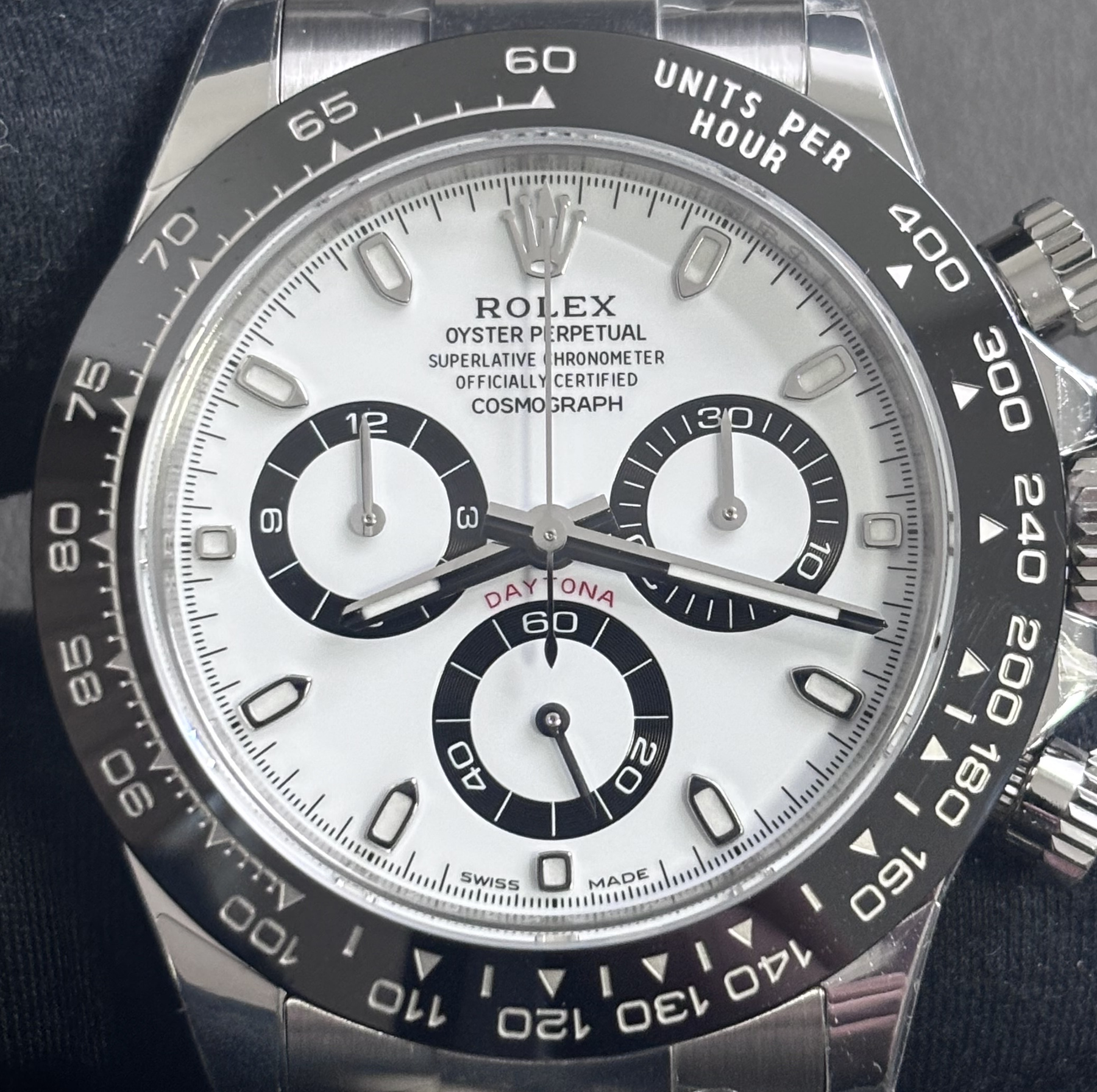

S007 · Native full-bezel context. Raised bezel features assessed visually in this original camera view

Supporting dial views

Additional camera references

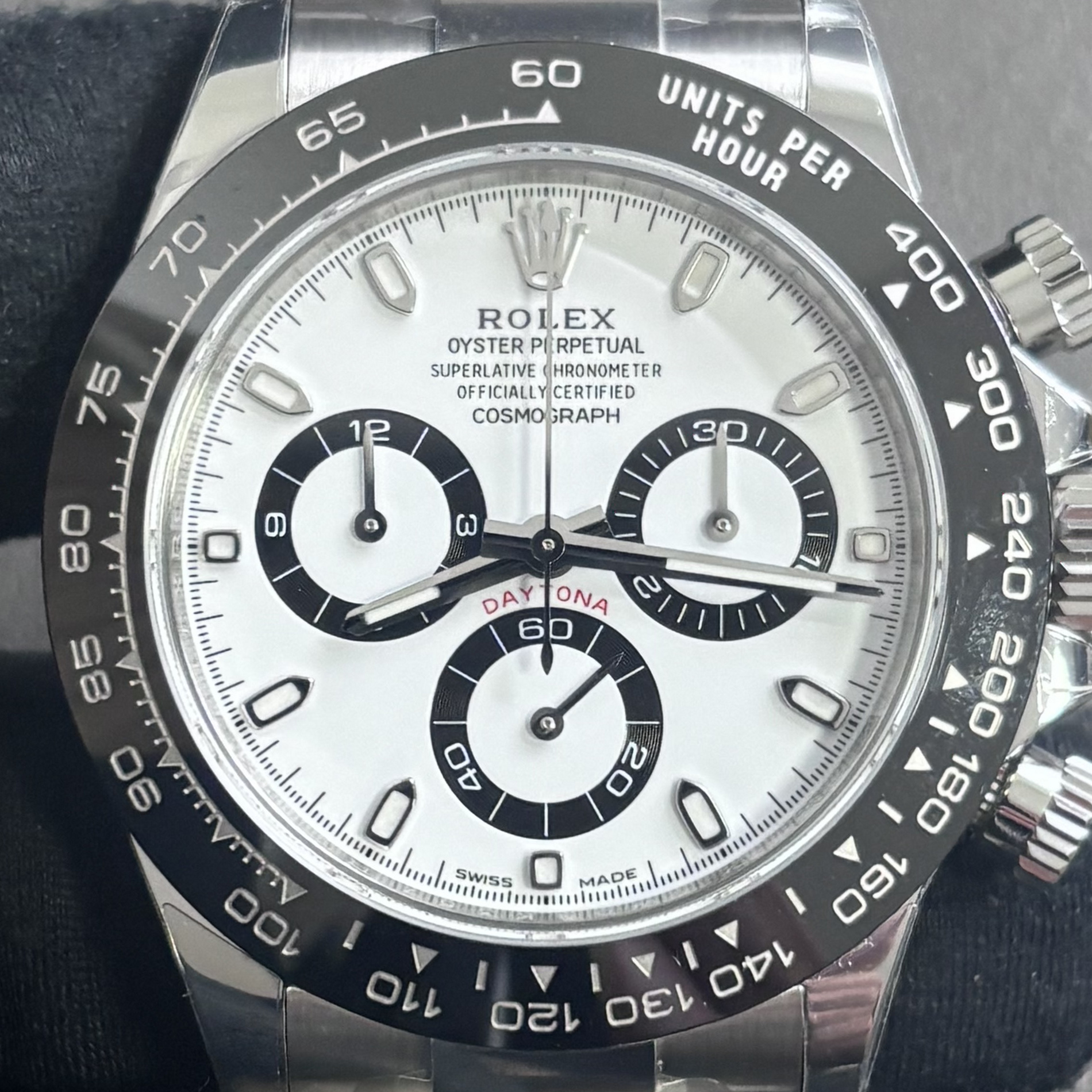

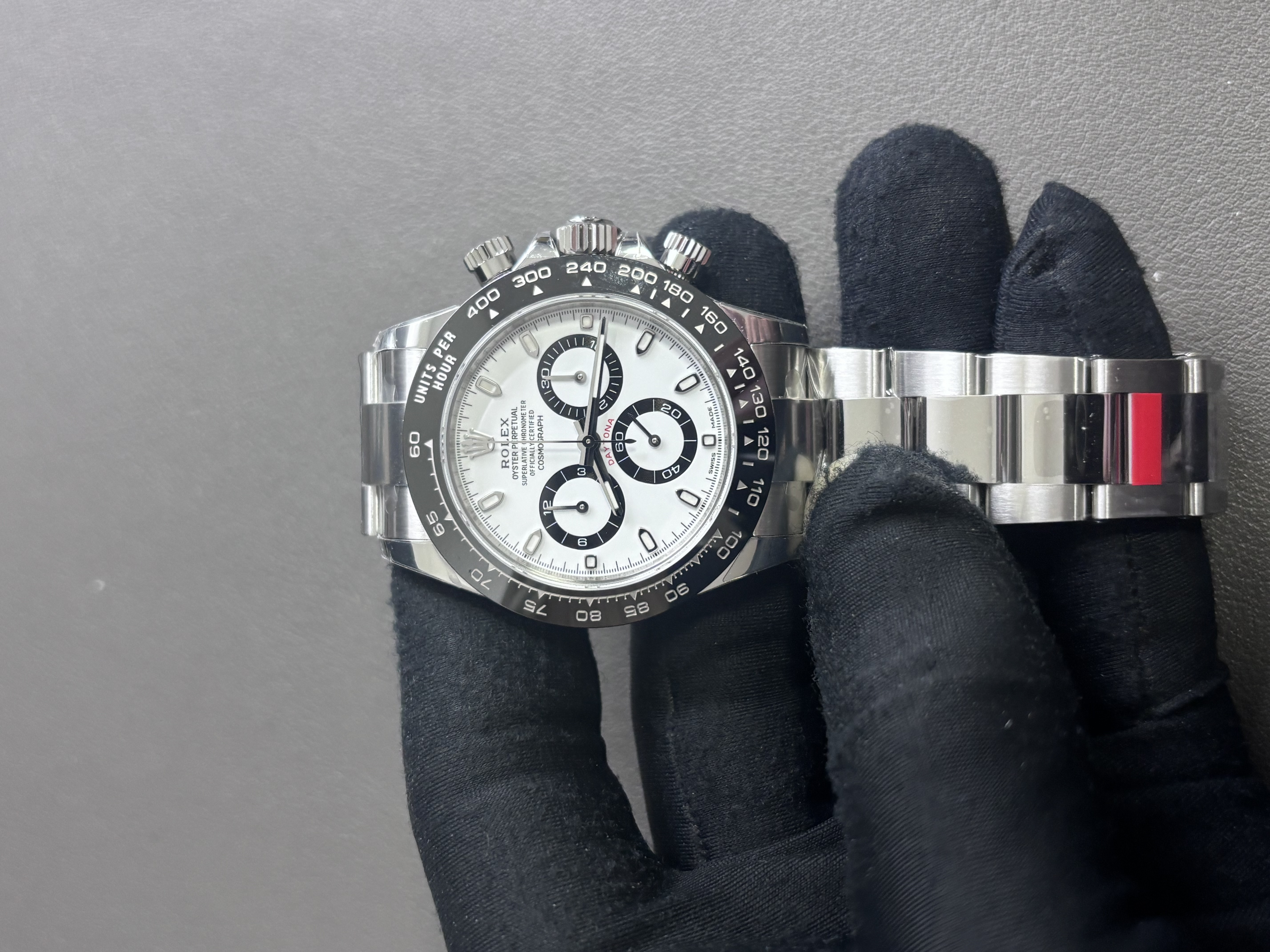

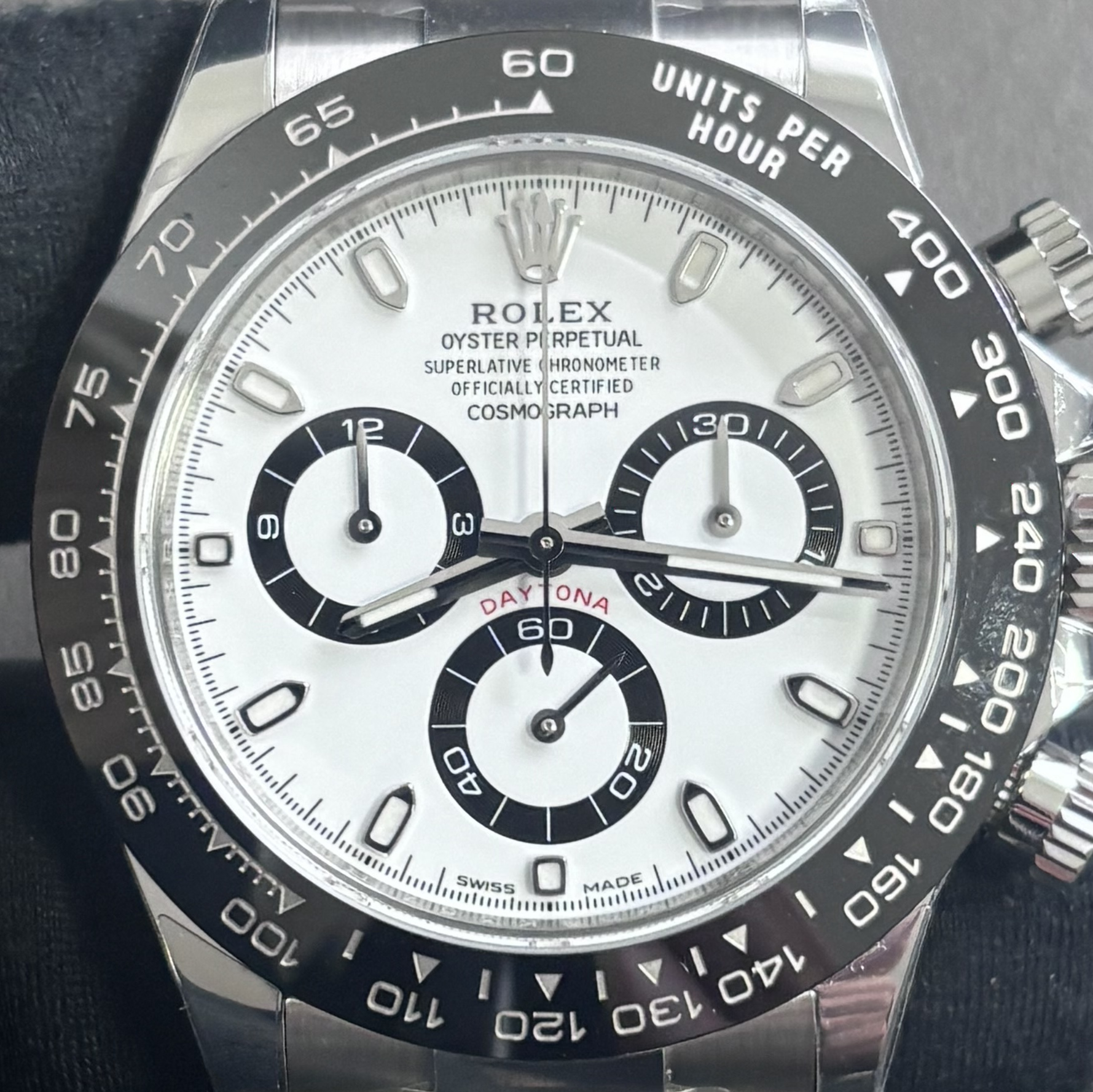

S001

Camera geometry corrected

Position and angle checks

2 dial views · 24 checks

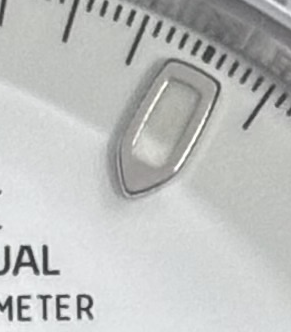

S007 · 1 o’clock

Angle unverified · feature edges uncertain · Incomplete luminous mask capturing only an inner fragment of the baton.

S007 · 2 o’clock

Angle unverified · feature edges uncertain · Inverted mask segment capturing background instead of the lume marker.

S007 · 3 o’clock

Angle unverified · feature edges uncertain · Spurious mask selecting subdial numeral rather than the square lume marker.

S007 · 4 o’clock

Angle unverified · feature edges uncertain · Ragged luminous mask missing upper portions of the insert. · amber outlines are candidate reflective edges

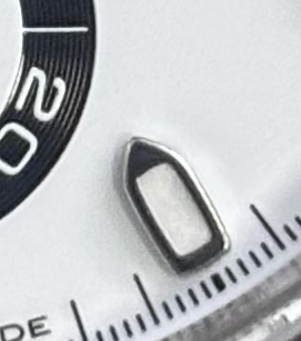

S007 · 5 o’clock

+0.4° luminous image axis · sensitivity +0.3° to +1.0° (geometry + segmentation; not physical tilt) · centre offset +0.2° from clock ray (geometry + segmentation +0.1° to +0.3°) · image-plane only · Complete elongated luminous insert fully segmented without occlusion. · amber outlines are candidate reflective edges

S007 · 6 o’clock

Round feature · position check; no unique axis · centre offset +0.0° from clock ray (geometry + segmentation -0.0° to +0.1°) · image-plane only · Complete square luminous insert fully segmented.

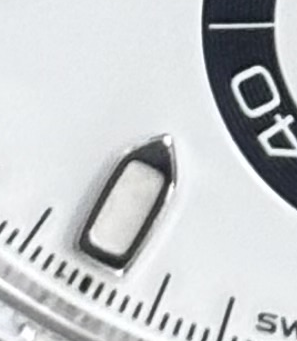

S007 · 7 o’clock

Angle unverified · feature edges uncertain · Partially masked luminous insert with ragged inner edges.

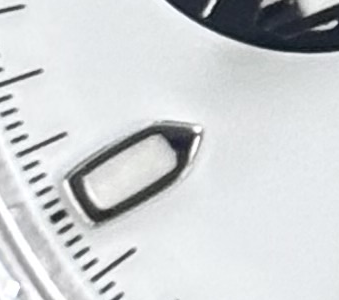

S007 · 8 o’clock

Angle unverified · feature edges uncertain · No luminous mask generated for the marker. · amber outlines are candidate reflective edges

S007 · 9 o’clock

Round feature · position check; no unique axis · Inverted mask capturing surrounding dial white area.

S007 · 10 o’clock

-0.0° luminous image axis · sensitivity -0.5° to +0.7° (geometry + segmentation; not physical tilt) · centre offset -0.2° from clock ray (geometry + segmentation -0.4° to -0.1°) · image-plane only · Complete elongated luminous marker without significant occlusion.

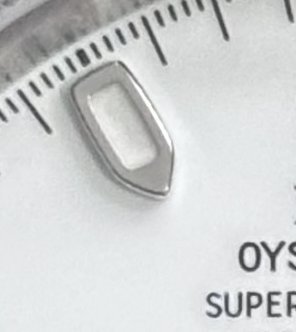

S007 · 11 o’clock

Angle unverified · feature edges uncertain · Fragmentary mask covering only a portion of the luminous insert.

S007 · 12 o’clock

Angle unverified · feature edges uncertain · Applied coronet logo without standard luminous insert, partially occluded by chronograph hand.
